Overview

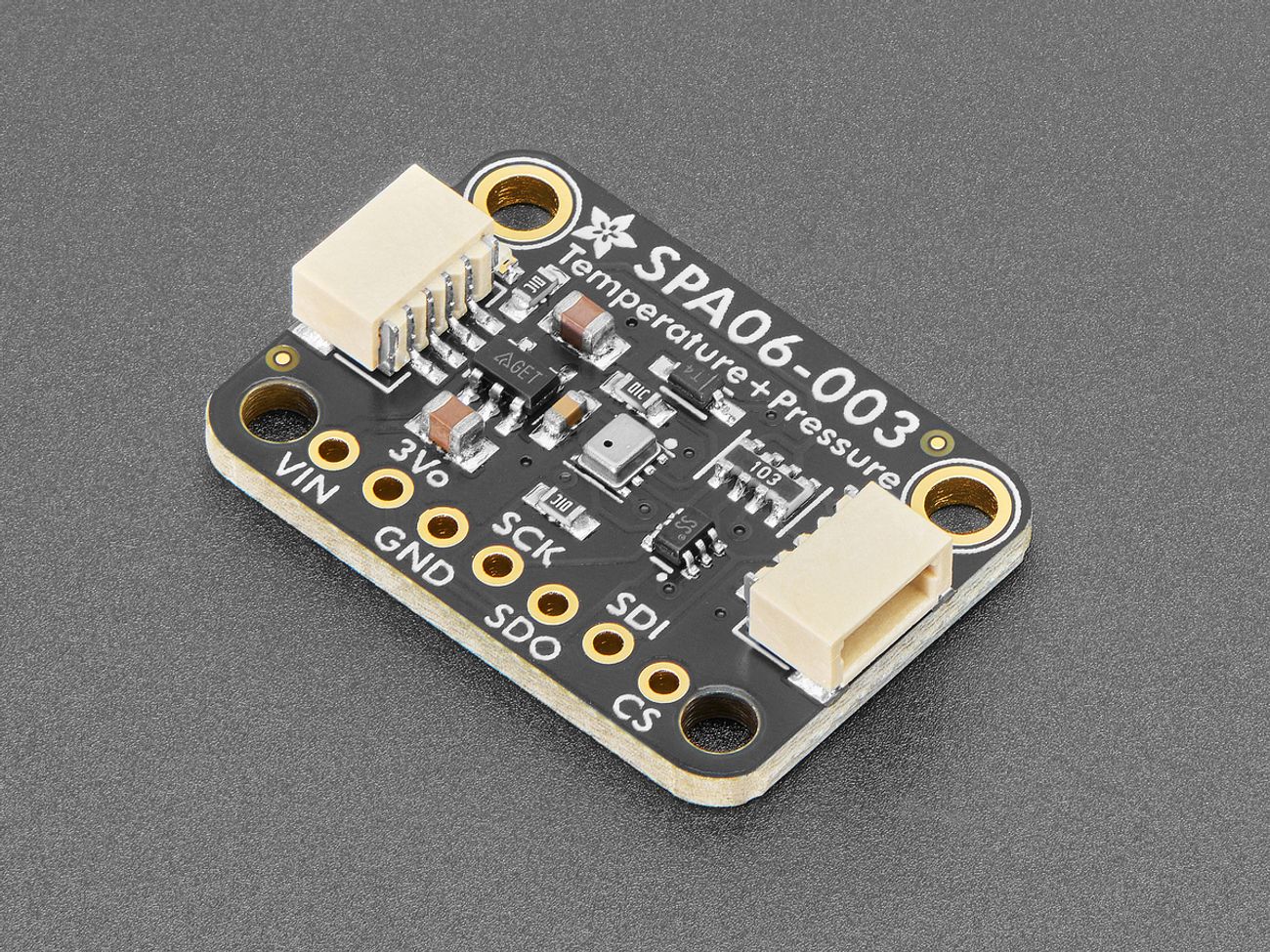

Adafruit SPA06-003 Temperature & Pressure Sensor Breakout is a low-cost barometric pressure and temperature sensing board built around the Goertek SPA06-003. It is a practical choice for basic environmental monitoring, weather-related projects, and DIY quadcopter builds where affordability matters.
The sensor measures pressure from 300 to 1100 hPa, covering approximately -500 m to +9000 m from sea level. It offers typical relative pressure accuracy of ±3 Pa, absolute pressure accuracy of ±30 Pa, and temperature accuracy of ±1°C.

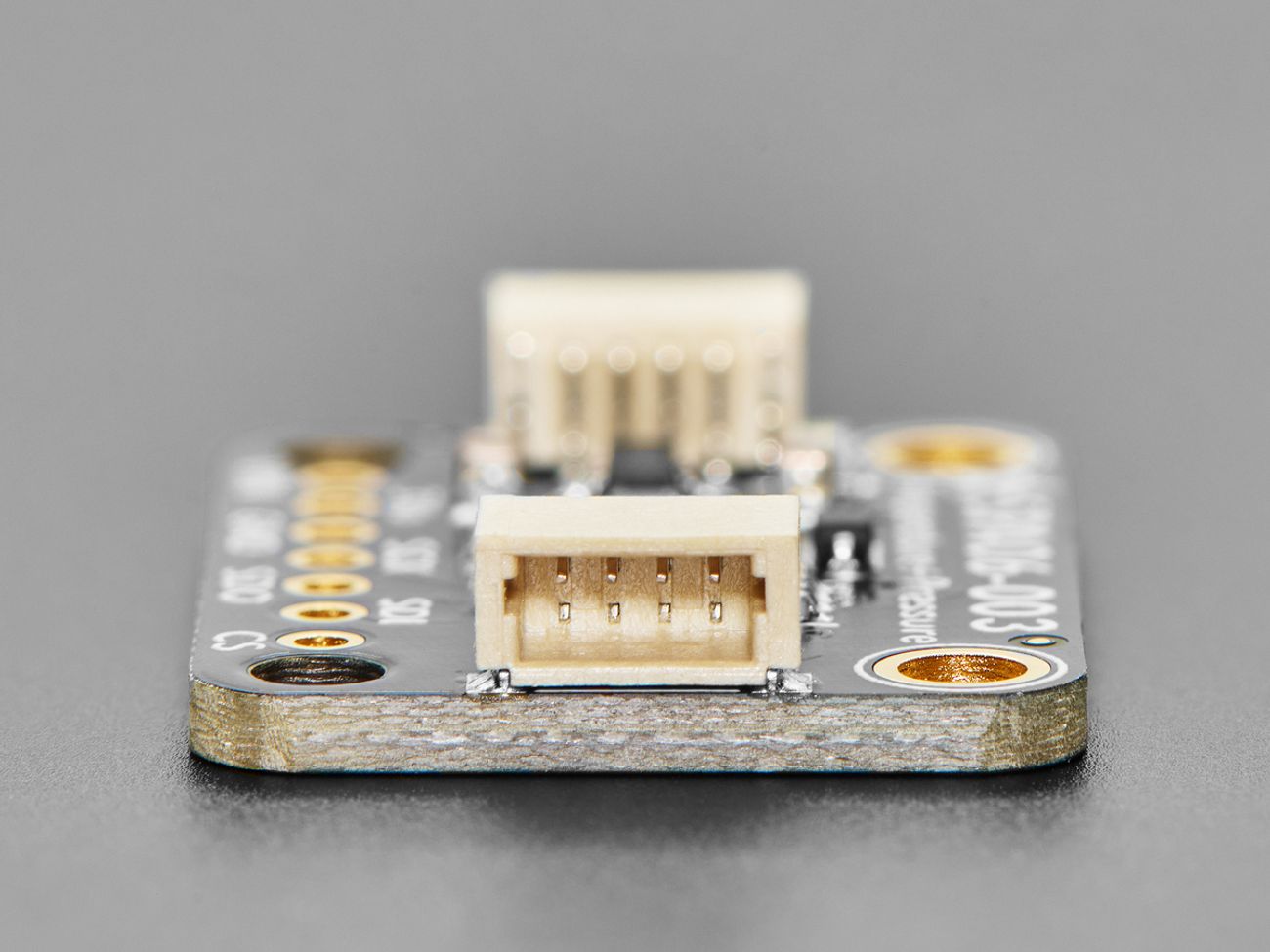

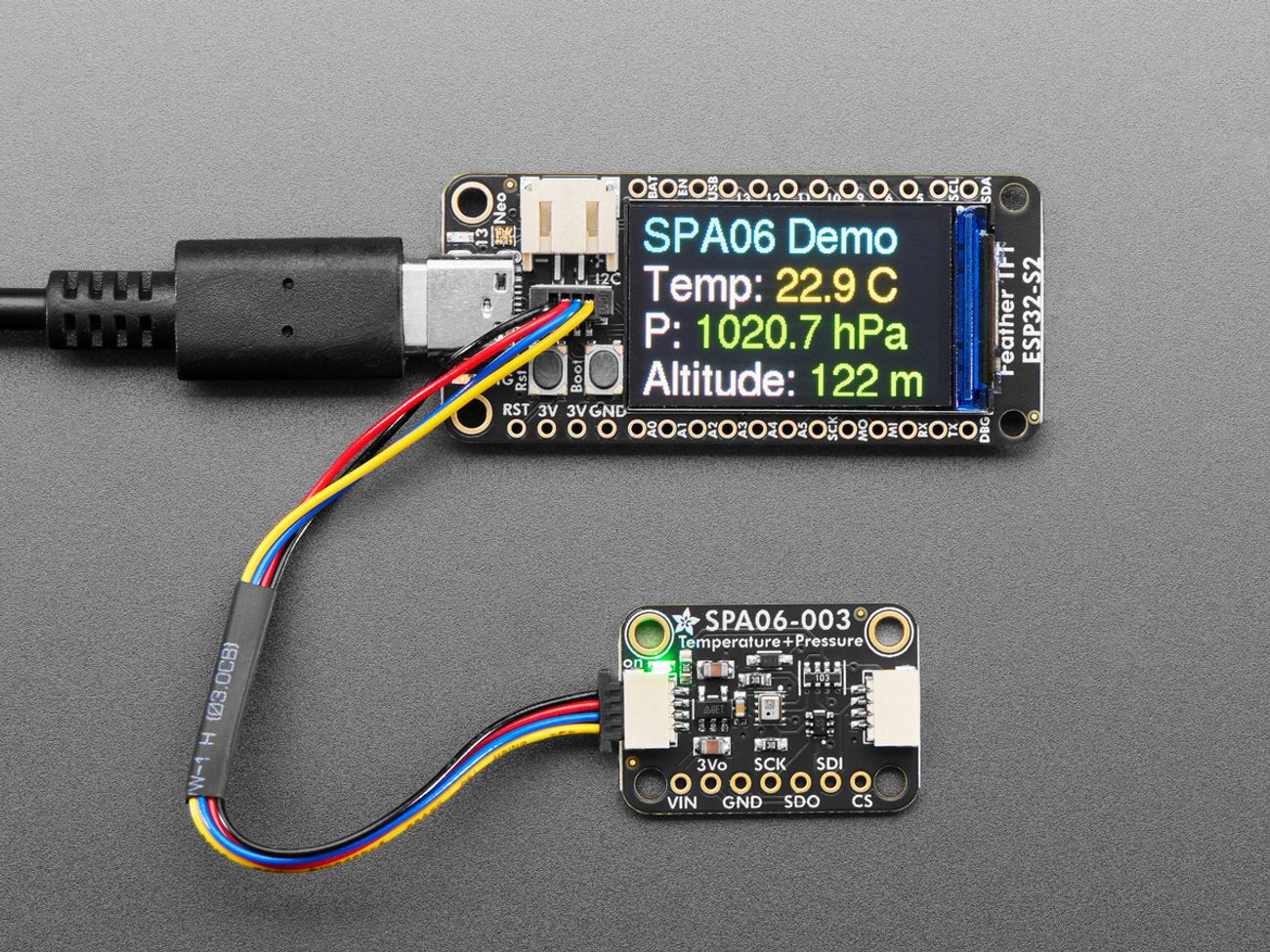

The breakout includes an onboard 3.3V regulator and level shifting, so it can be used safely with both 3V and 5V microcontrollers or single-board computers. Its STEMMA QT connectors make I2C hookup fast and solderless, and they are also compatible with SparkFun Qwiic ecosystems. QT cable is not included.
Specification
Technical details for Adafruit SPA06-003 Temperature & Pressure Sensor Breakout.
| Specification | Details |
|---|---|
| Sensor Type | Barometric pressure and temperature sensor |
| Pressure Range | 300 to 1100 hPa |
| Approx. Altitude Range | -500 m to +9000 m from sea level |
| Pressure Accuracy | Typical relative accuracy ±3 Pa; absolute accuracy ±30 Pa |
| Temperature Accuracy | ±1°C |
| Logic Compatibility | 3V and 5V logic compatible via onboard level shifting |
| Board Supply Input | 3V to 5V DC via VIN |

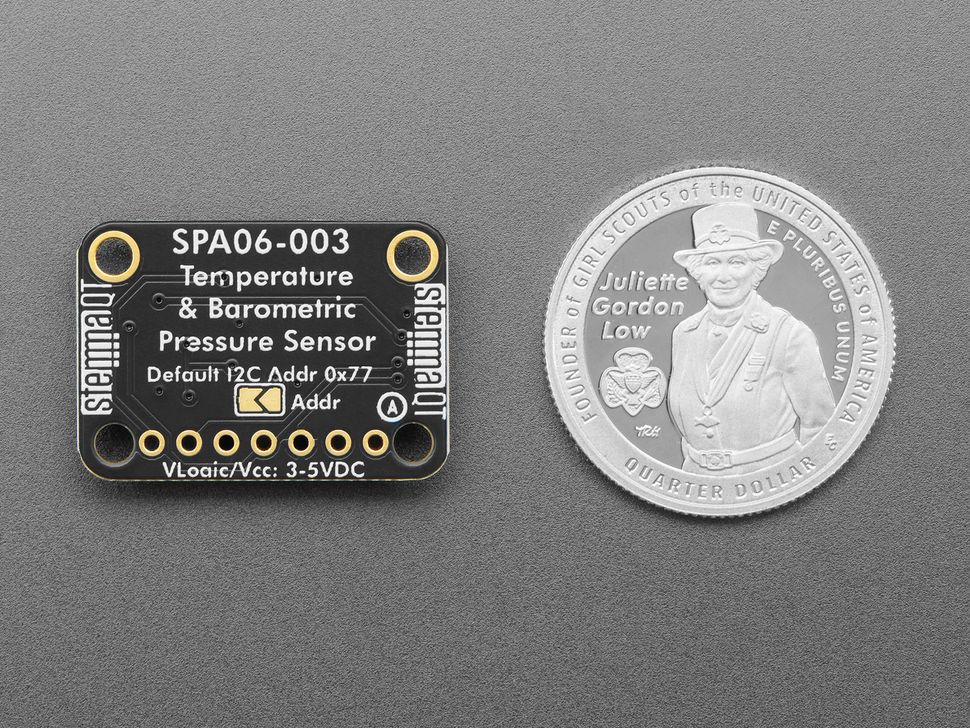

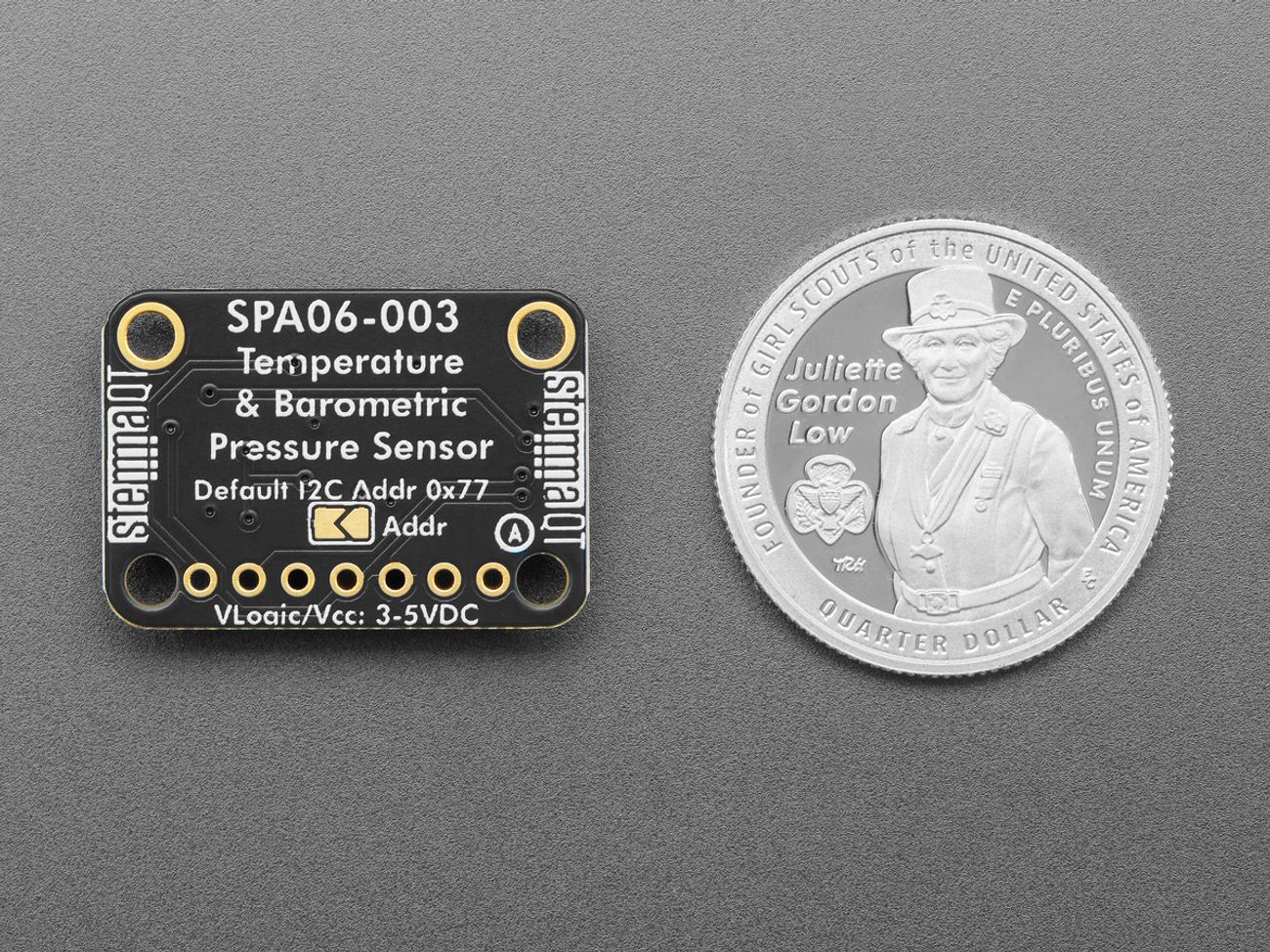

| I2C Address | Default 0x77, selectable to 0x76 |
| Connector System | STEMMA QT / Qwiic-compatible I2C connectors |

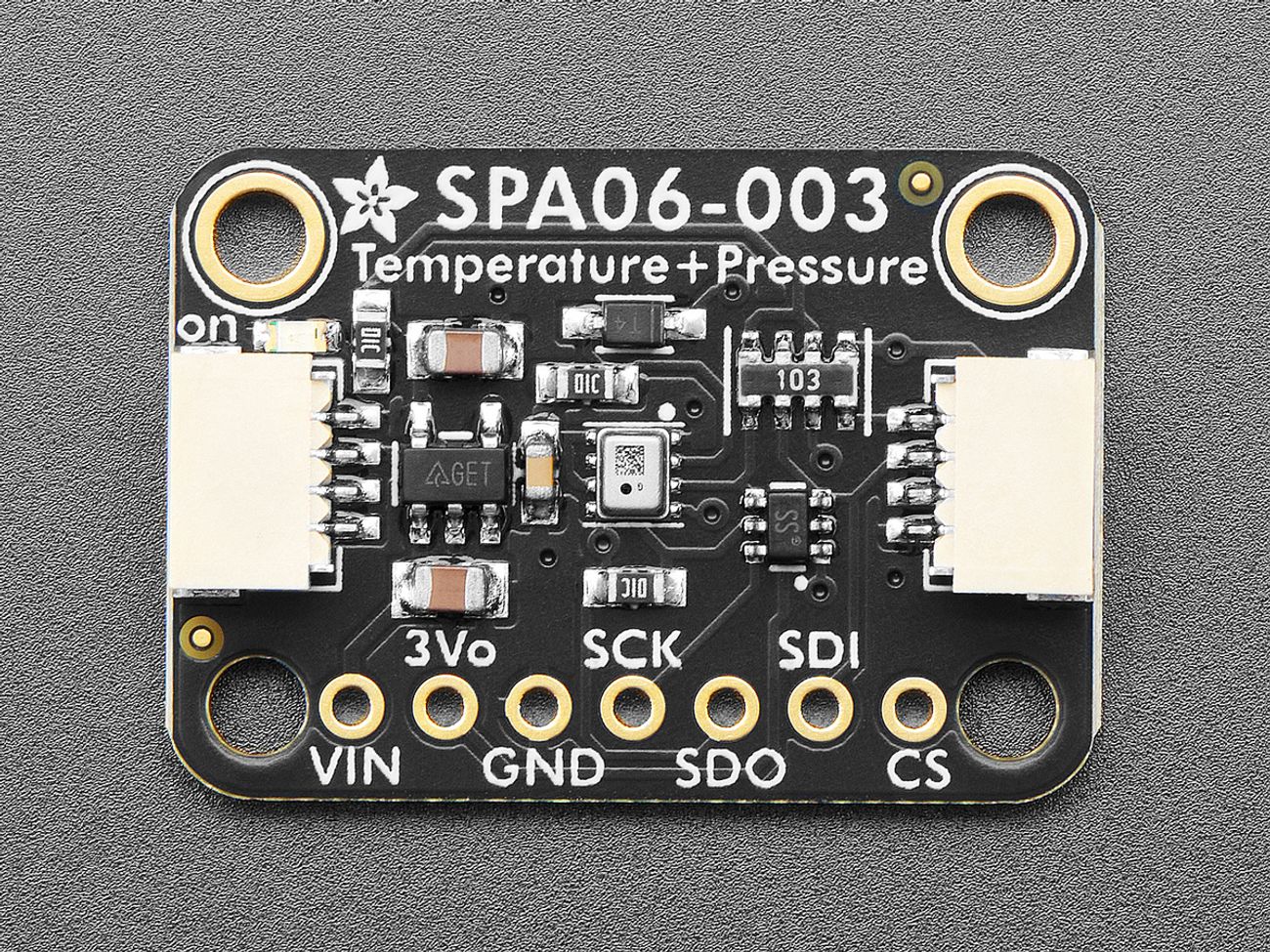

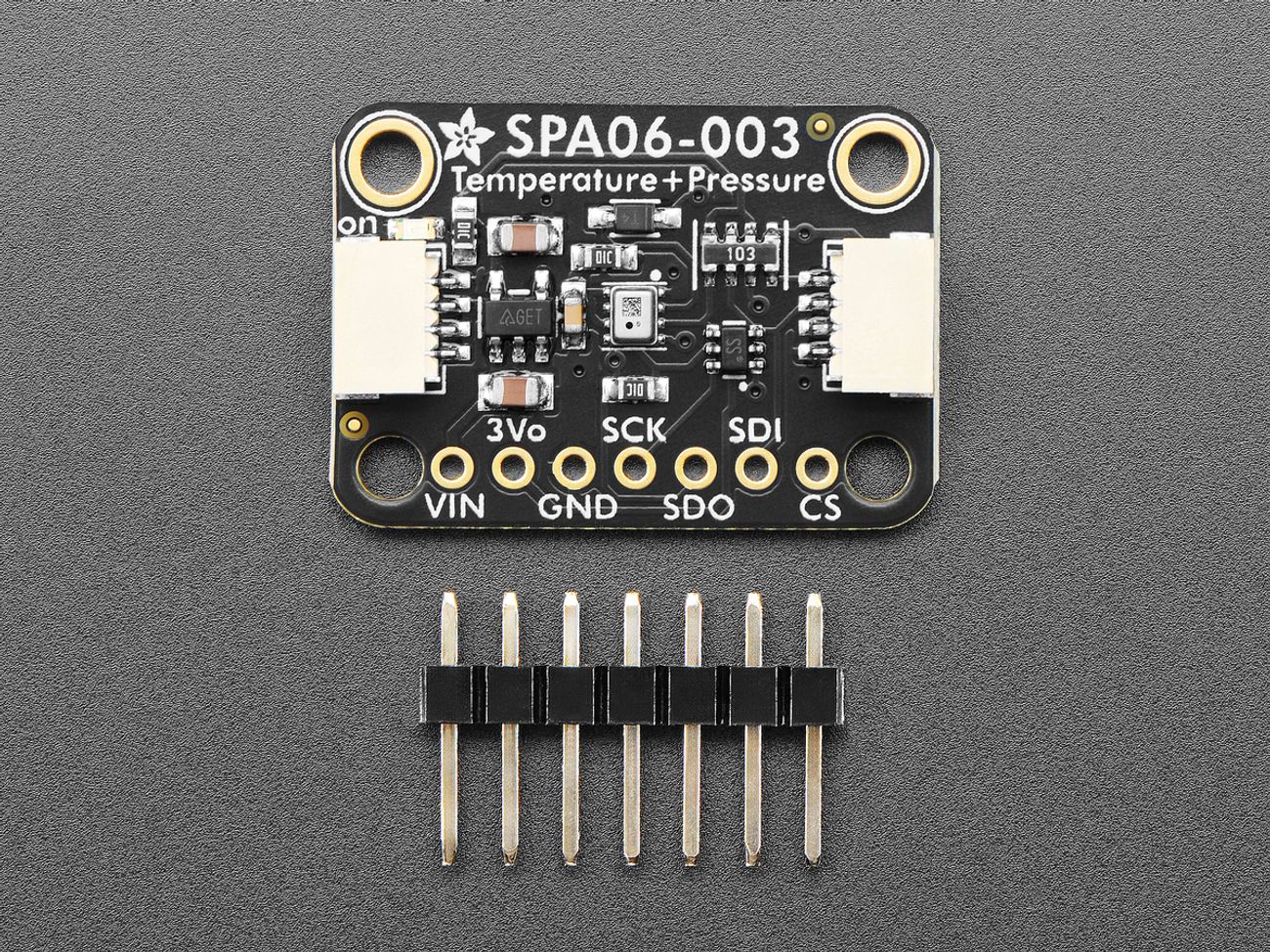

Pinout
| Pin | Type | Description |
|---|---|---|
| VIN | Power input | 3V to 5V DC input for the onboard regulator; power this from your board supply rail |
| 3Vo | Power output | 3.3V output from the onboard regulator, available for light external use up to 100mA |
| GND | Power | Common ground for power and logic |
| SCK/SCL | Digital input | I2C clock pin |
| SDI/SDA | Digital I/O | I2C data pin |
| SDO | Digital output / address select | Used as I2C address select; connect to GND to change address from 0x77 to 0x76 |
| CS | Digital input | Chip select for SPI; leave disconnected for I2C use |
