Overview

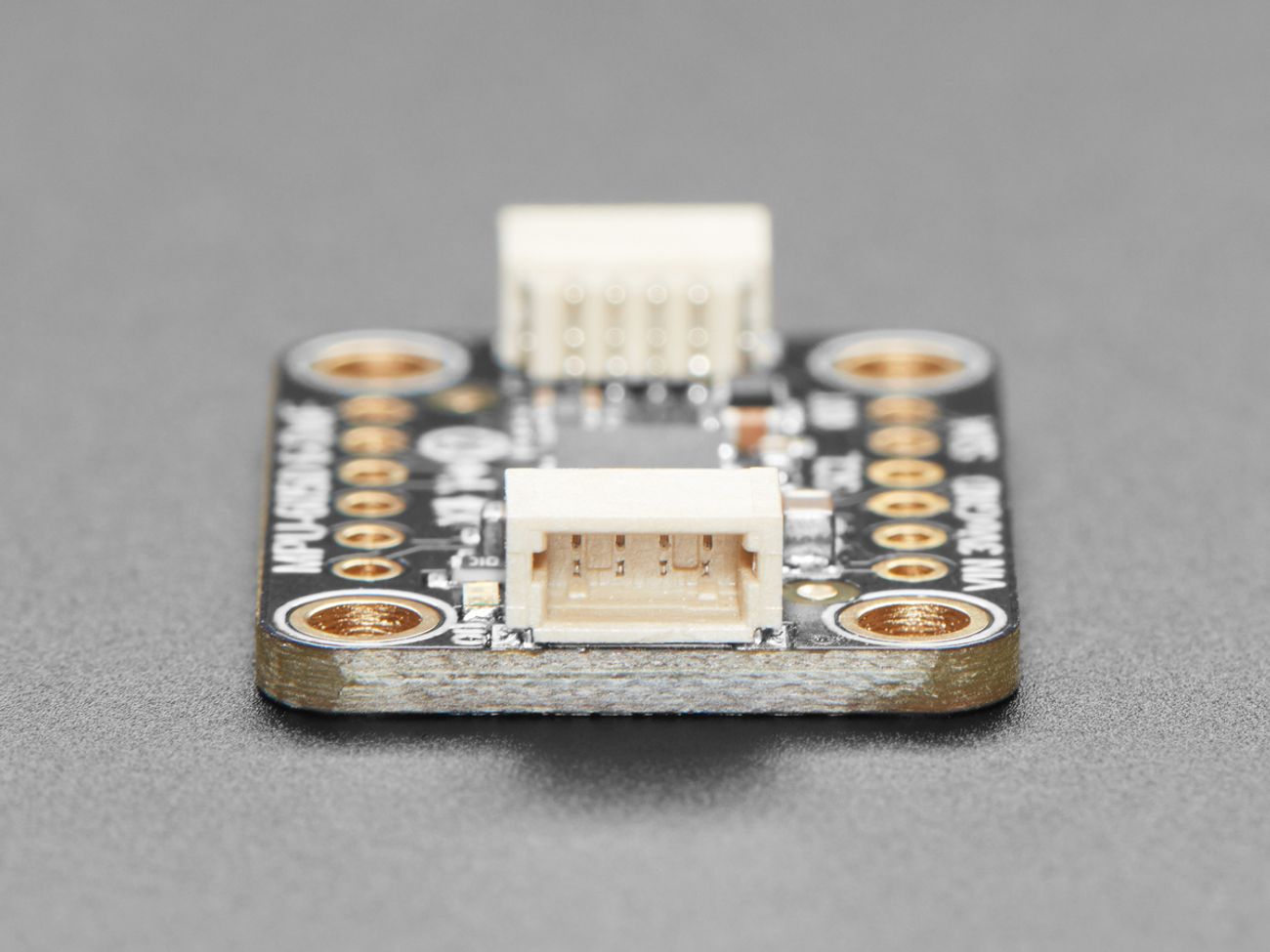

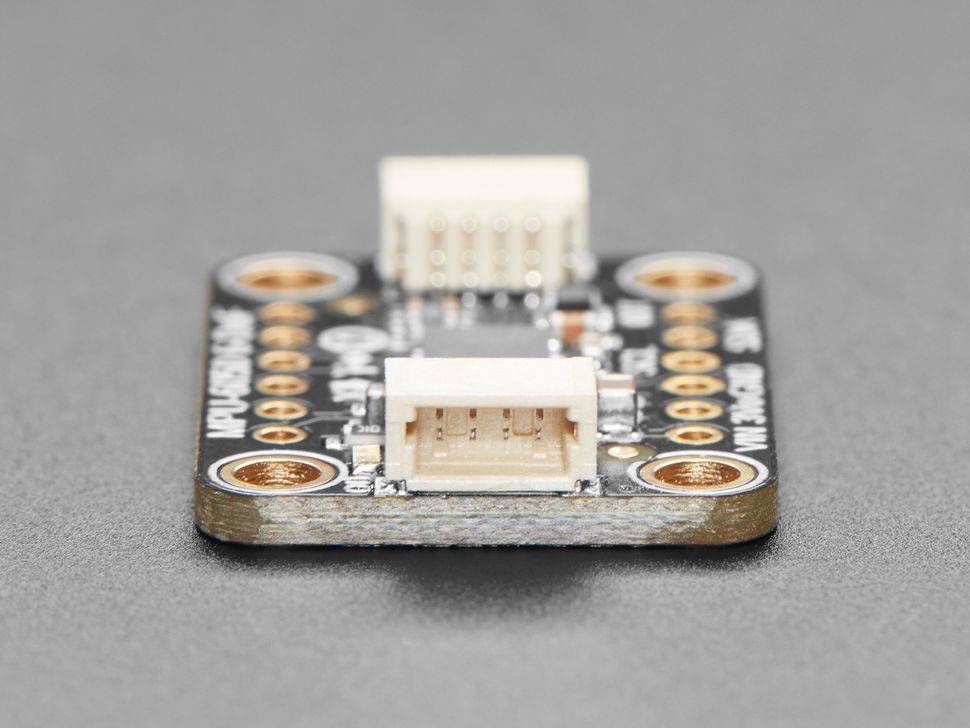

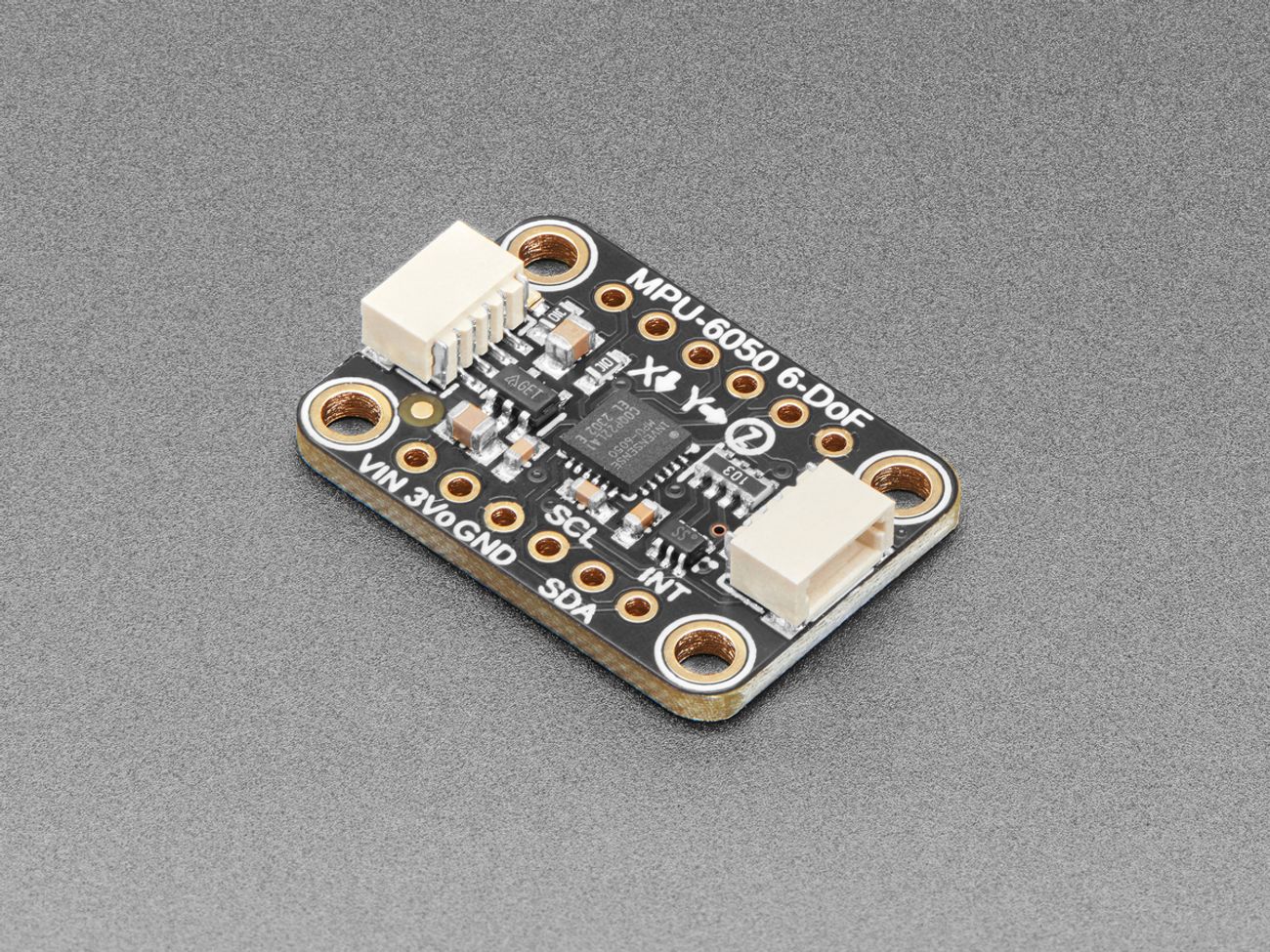

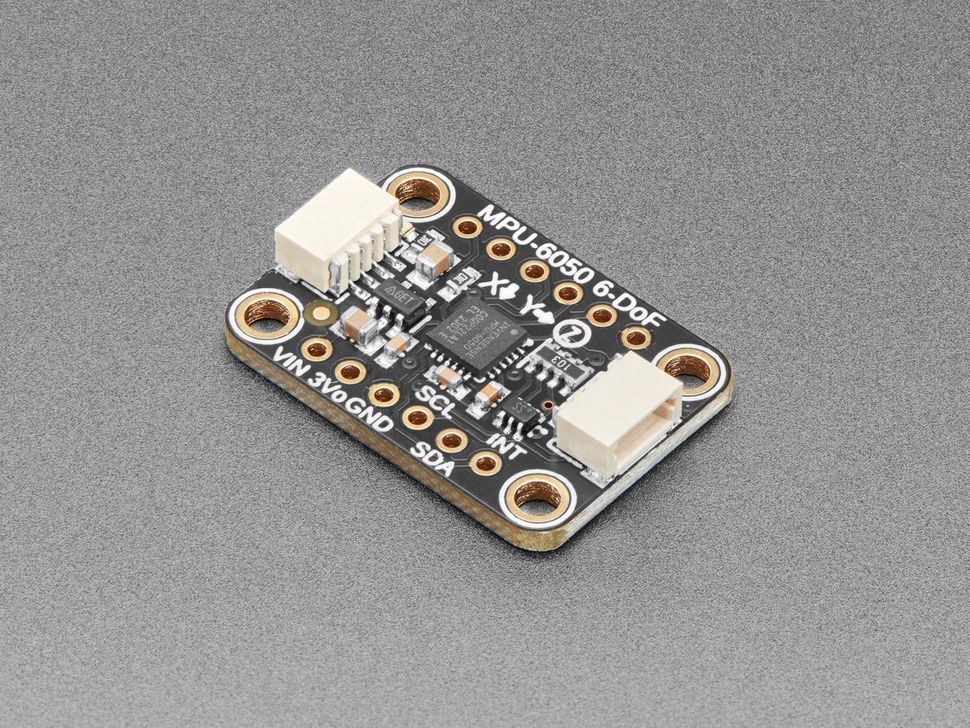

Adafruit MPU-6050 6-DoF Accelerometer Gyro Sensor is a compact IMU breakout that combines a 3-axis accelerometer and 3-axis gyroscope on a single board. With 16-bit measurements over an I2C interface, it is a practical choice for motion sensing, balance detection, orientation tracking, and movement telemetry in robotics and embedded projects.

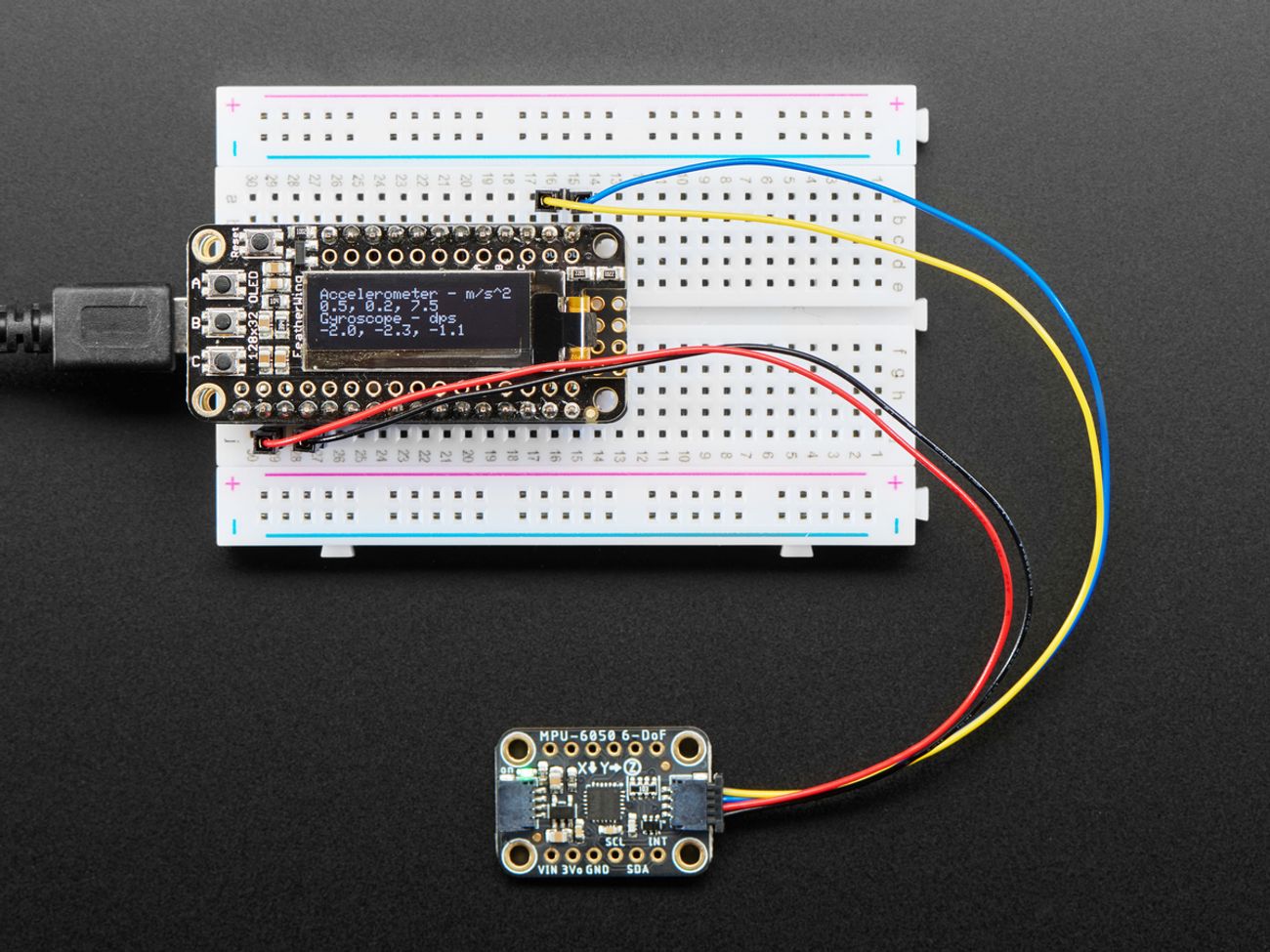

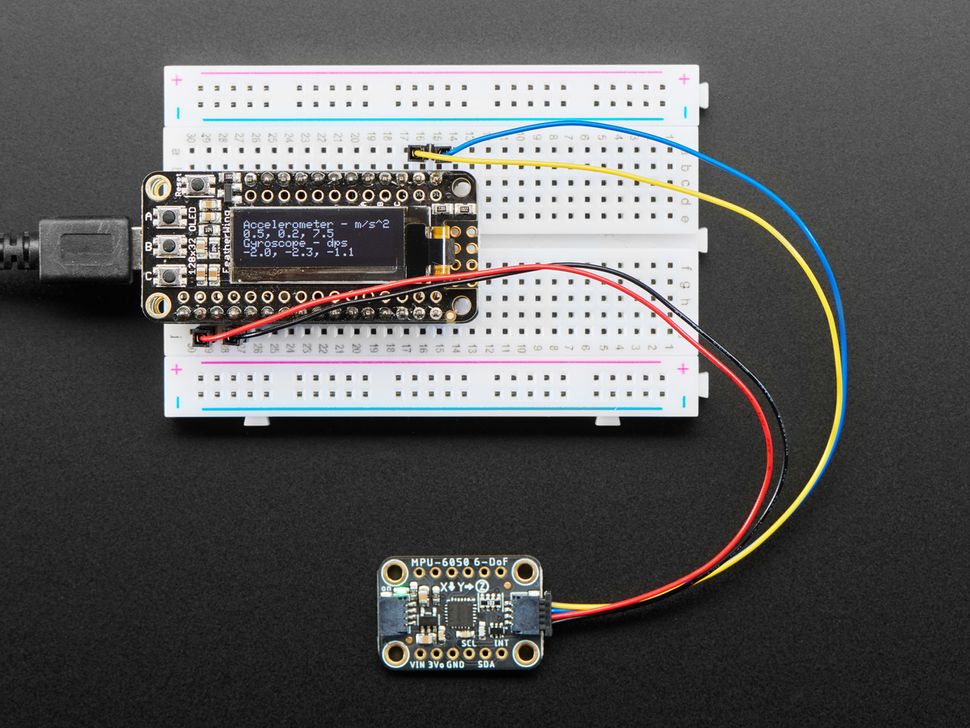

This breakout is designed to be easy to integrate with both modern maker hardware and traditional breadboard builds. It includes STEMMA QT / Qwiic-compatible JST SH connectors for quick solderless I2C connections, while also providing a standard 0.1" header footprint for direct wiring on perfboard or breadboards.
Adafruit has added the support circuitry needed for reliable use with 3.3V or 5V logic systems, including an onboard regulator that accepts 3-5V DC. It works with Arduino, CircuitPython, Python, and Blinka-supported single-board computers using Adafruit libraries. The board comes fully assembled and tested; a QT cable is not included.
Specification
Technical details for Adafruit MPU-6050 6-DoF Accelerometer Gyro Sensor - STEMMA QT/ Qwiic.
| Specification | Details |
|---|---|
| Sensor IC | MPU-6050 |
| Sensing Type | 6 DoF IMU |
| Accelerometer | 3-axis accelerometer |
| Gyroscope | 3-axis gyroscope |
| Measurement Resolution | 16-bit |
| Communication Interface | I2C |
| Connector Standard | STEMMA QT / SparkFun Qwiic compatible JST SH connectors |
| Input Voltage | 3V to 5V DC on Vin |
| Logic Compatibility | 3.3V and 5V logic compatible |
| Onboard Regulator Output | 3.3V output on 3Vo, up to 100mA |

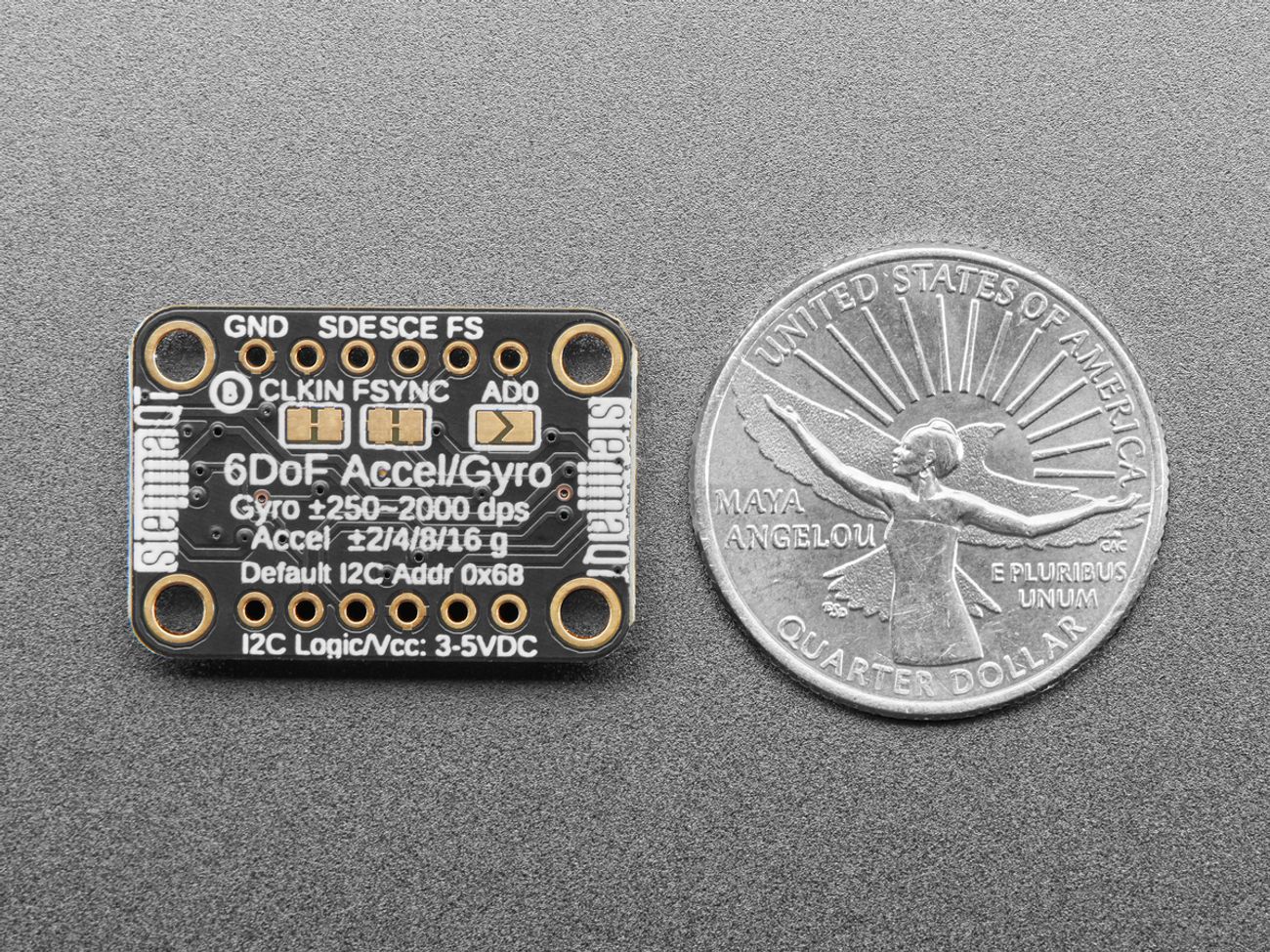

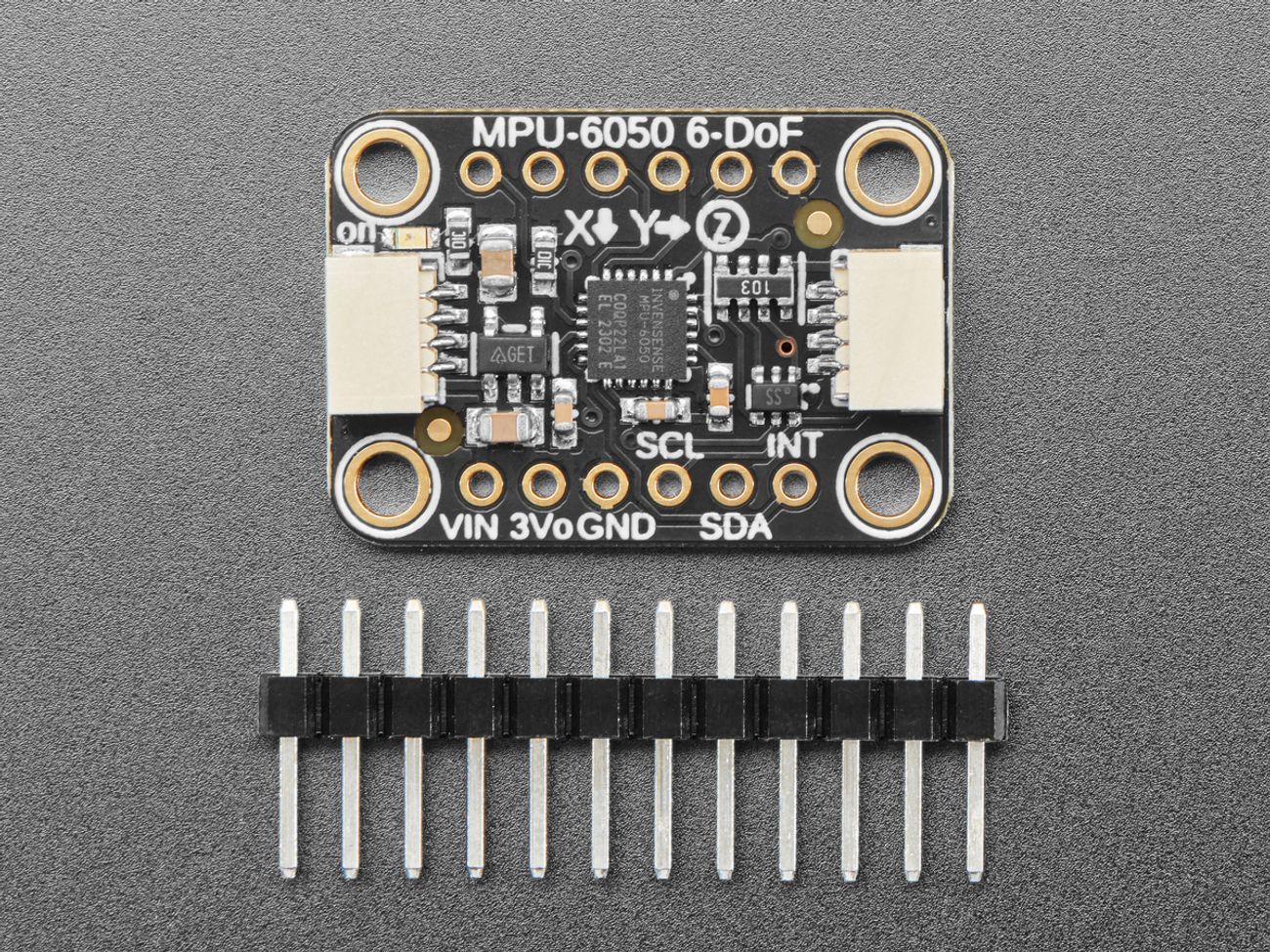

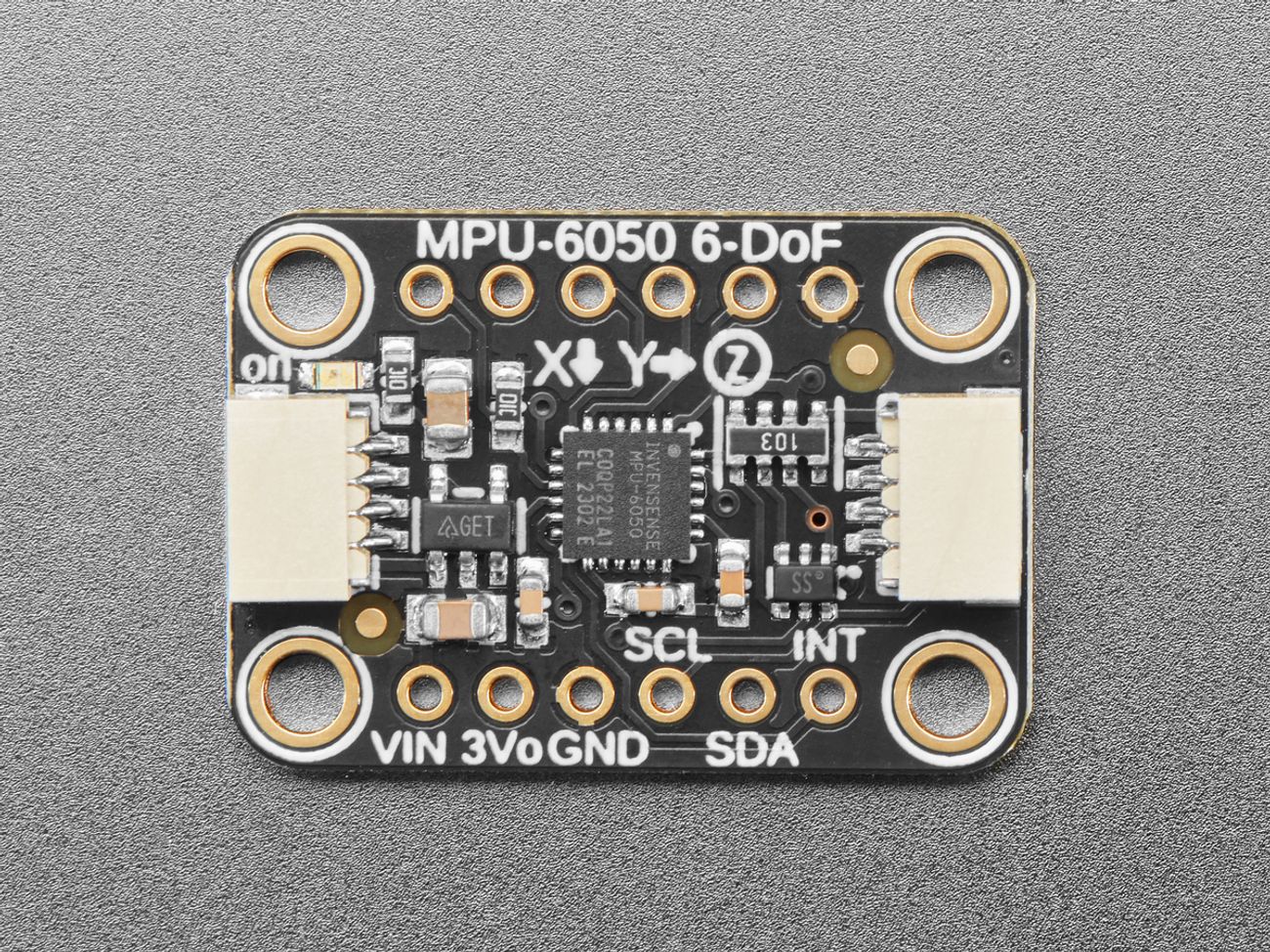

Pinout
| Pin | Type | Description |
|---|---|---|
| Vin | Power Input | Board power input. Accepts 3-5V DC and should match the logic level of the host microcontroller. |
| 3Vo | Power Output | 3.3V output from the onboard regulator. Up to 100mA available for external use. |
| GND | Ground | Common ground reference for power and logic. |
| SCL | I2C Clock | I2C clock line for connection to the controller's SCL pin. Level shifted for 3-5V logic and fitted with a 10K pull-up. |
| SDA | I2C Data | I2C data line for connection to the controller's SDA pin. Level shifted for 3-5V logic and fitted with a 10K pull-up. |
| INT | Interrupt Output | Interrupt pin that can signal events such as new measurement data availability. |
| AD0 | Address Select | I2C address selection pin. Default address is 0x68; pulling AD0 high changes it to 0x69. |
| FS | Auxiliary / Advanced | Advanced-use pin for extended MPU-6050 functionality. Refer to the datasheet and register map for implementation details. |
| SCE / SDE | Auxiliary / Advanced | Advanced connection pins for sensor interface features exposed from the MPU-6050. |
| CLKIN | Clock Input | External clock input for advanced applications requiring clock synchronization. |
