Overview

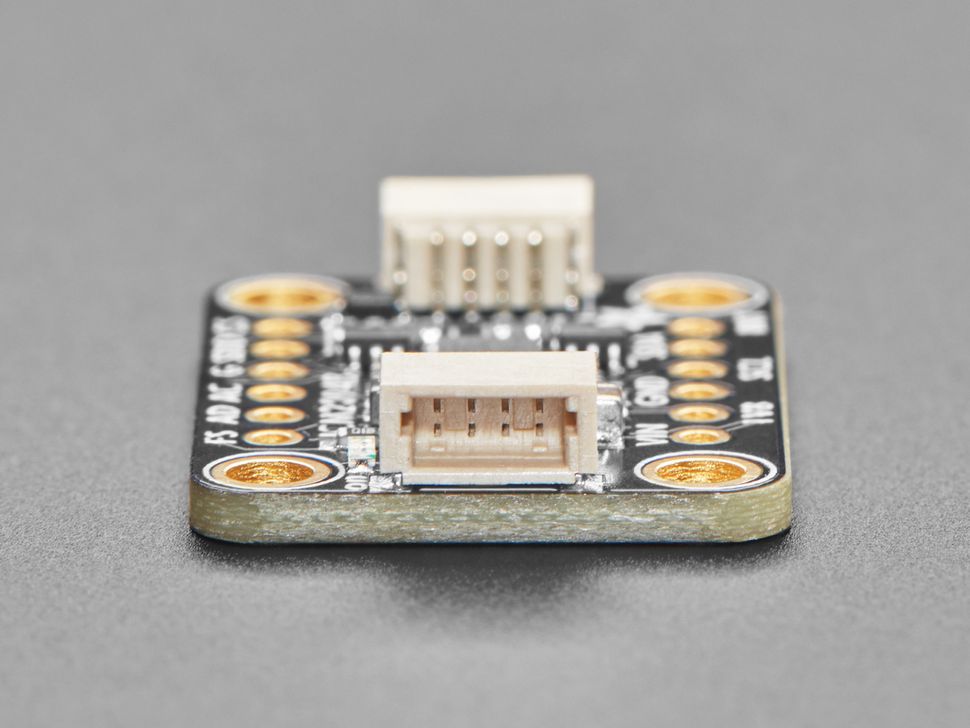

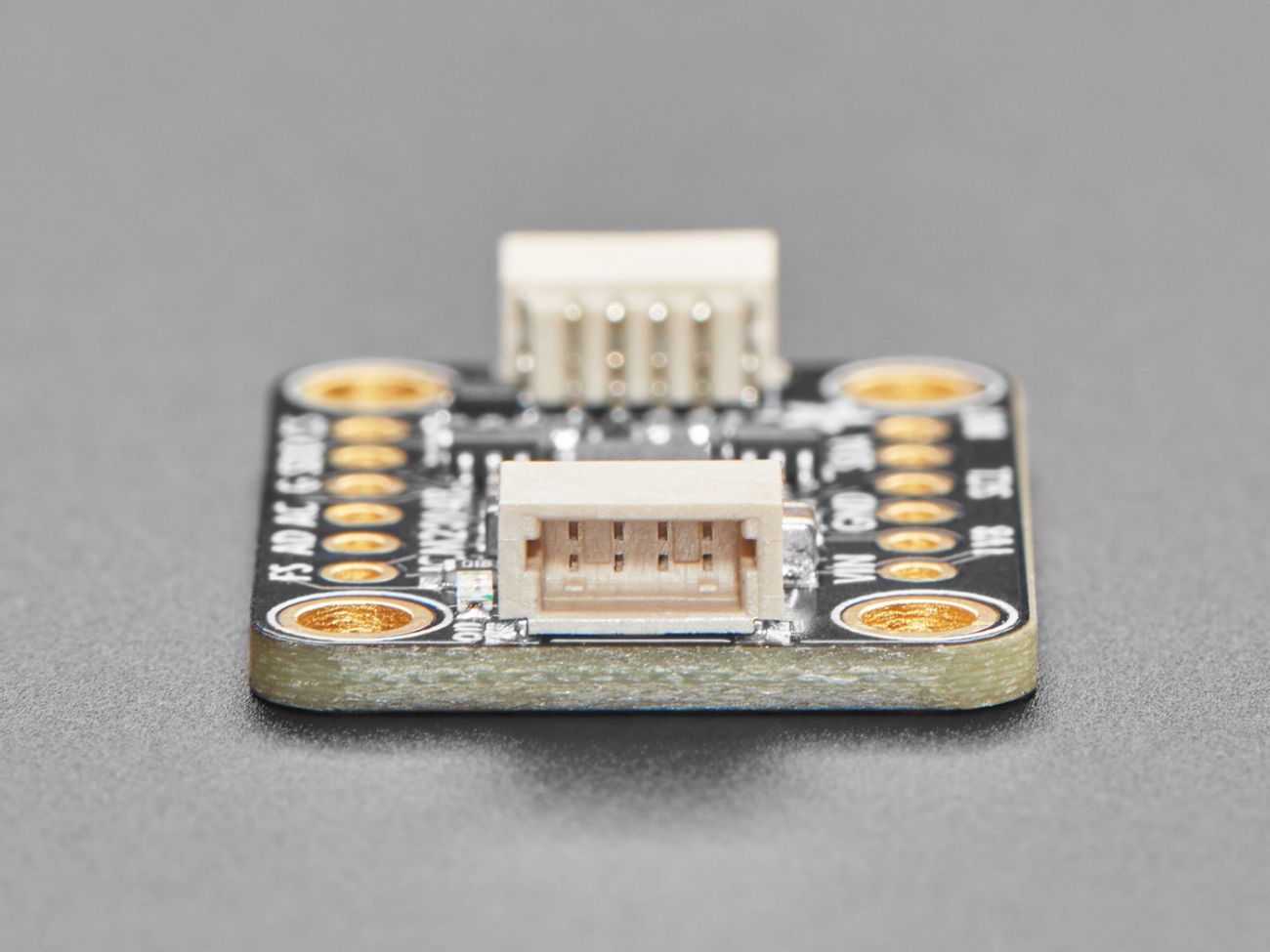

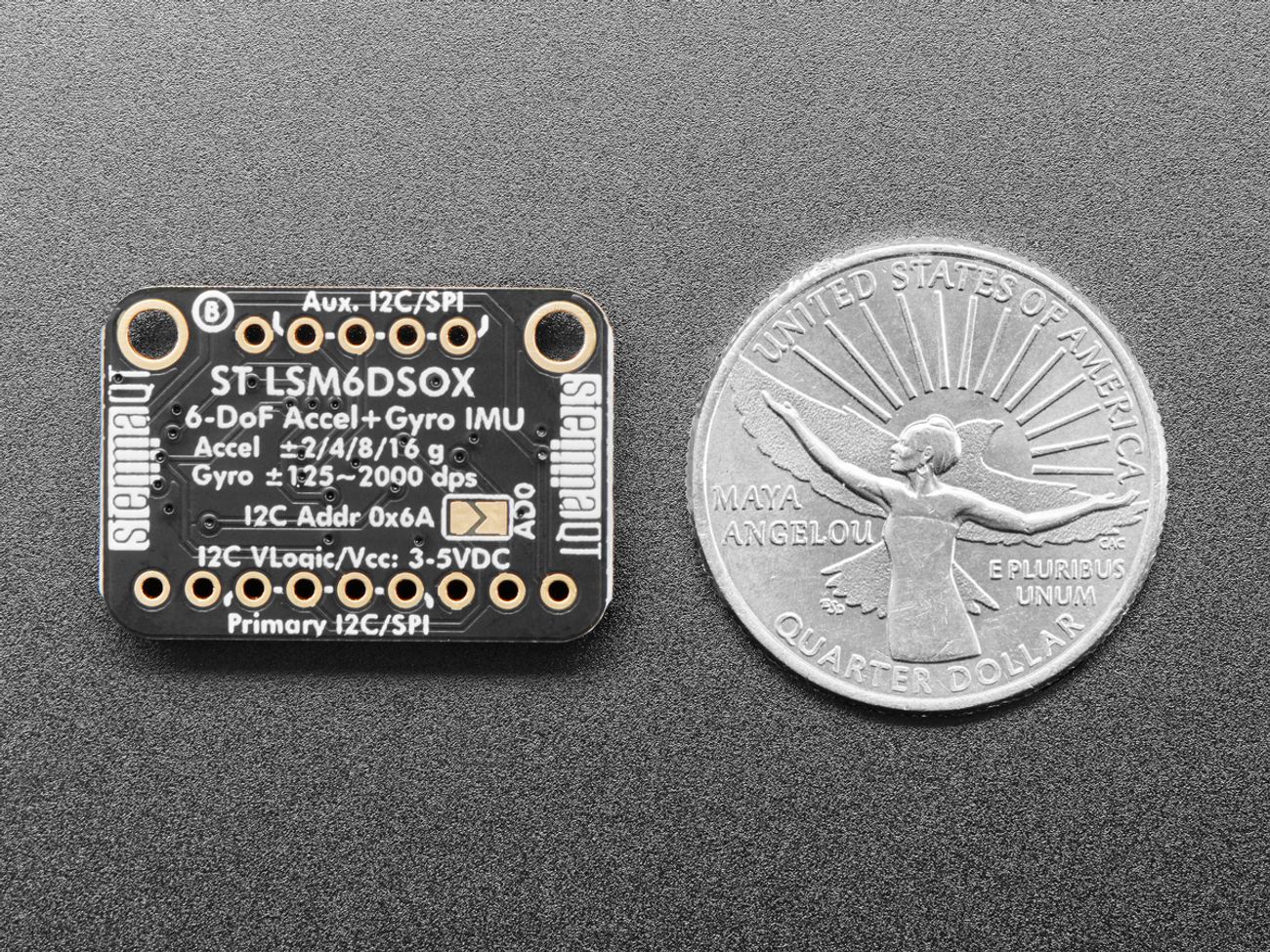

Adafruit LSM6DSOX 6-DoF Accelerometer Gyro Sensor is a compact IMU breakout built around ST's LSM6DSOX, combining a 3-axis accelerometer and 3-axis gyroscope on one board for motion, orientation, and activity sensing projects. It is a strong fit for robotics, wearables, gesture input, balancing systems, motion logging, and general embedded sensing.
The accelerometer supports selectable ranges of ±2 / ±4 / ±8 / ±16 g with update rates from 1.6 Hz to 6.7 kHz, while the gyroscope supports ±125 / ±250 / ±500 / ±1000 / ±2000 dps at 12.5 Hz to 6.7 kHz. Built-in motion features include tap detection, activity detection, pedometer or step counting, and a programmable finite state machine / machine learning core for basic gesture recognition.
For integration, the board supports I2C or SPI, includes STEMMA QT / qwiic-compatible connectors for quick solderless I2C hookup, and provides onboard voltage regulation plus level shifting so it can be used with 3V or 5V logic systems. Two configurable interrupt pins are available, and libraries are provided for Arduino, CircuitPython, Python, Raspberry Pi, and other single-board computers. QT cable not included.
Specification
Technical details for Adafruit LSM6DSOX 6-DoF Accelerometer Gyro Sensor - STEMMA QT/Qwiic.
| Specification | Details |
|---|---|
| Sensor Type | 6-DoF IMU with 3-axis accelerometer and 3-axis gyroscope |
| Accelerometer Range | ±2 / ±4 / ±8 / ±16 g |
| Accelerometer Update Rate | 1.6 Hz to 6.7 kHz |
| Gyroscope Range | ±125 / ±250 / ±500 / ±1000 / ±2000 dps |
| Gyroscope Update Rate | 12.5 Hz to 6.7 kHz |
| Interface | I2C or SPI |
| Logic / Supply Compatibility | Usable with 3V or 5V power and logic devices |
| Interrupts | 2 configurable interrupt pins |
| Operating Temperature | -40 to +85 °C |
| Special Features | Tap detection, activity detection, pedometer/step counter, programmable finite state machine / machine learning core, external I2C/SPI sensor hub port, STEMMA QT / qwiic-compatible connectors |

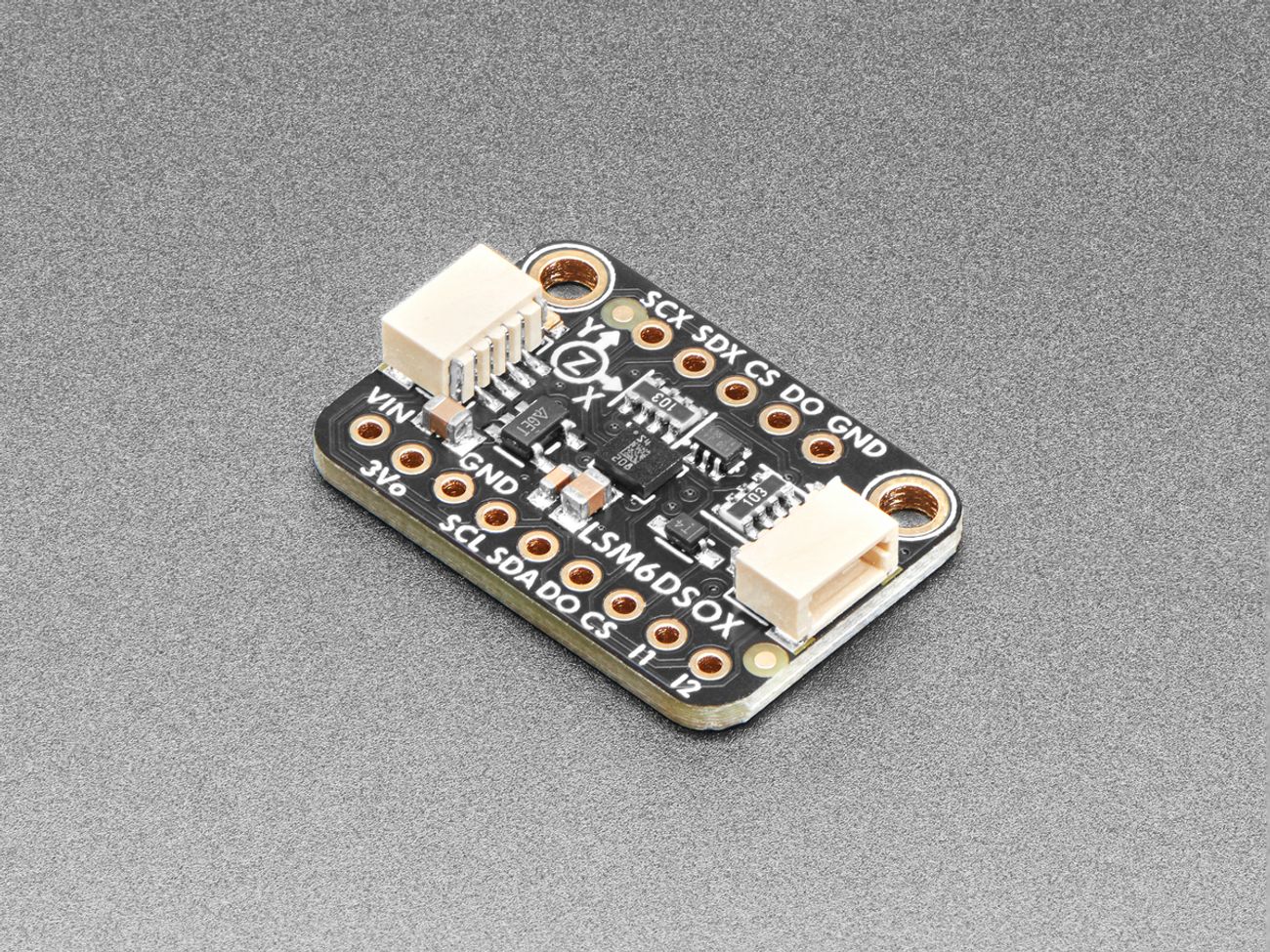

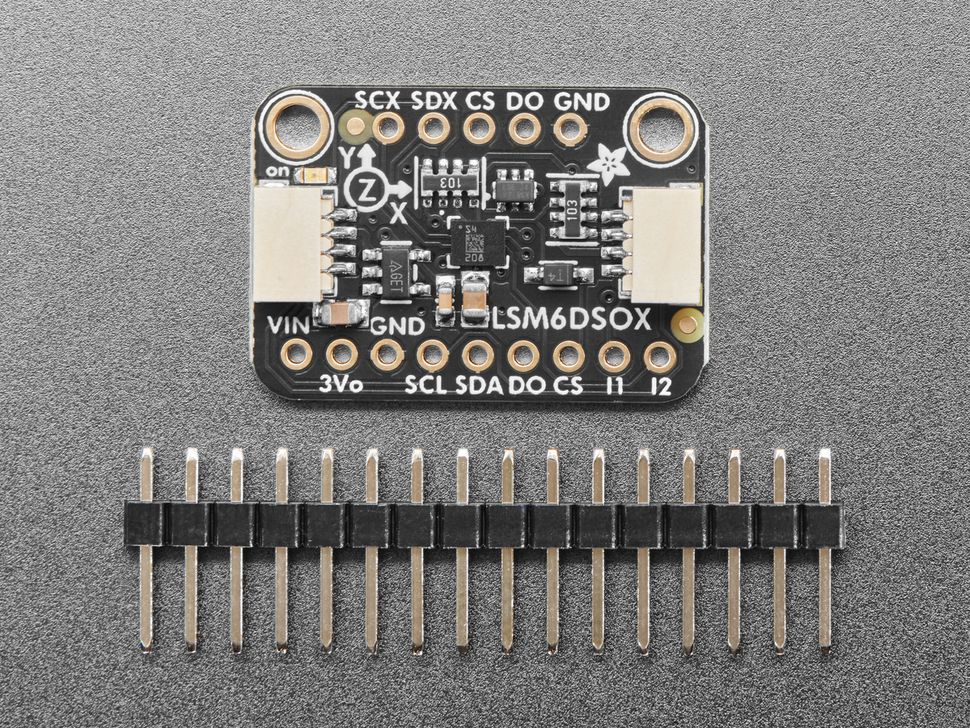

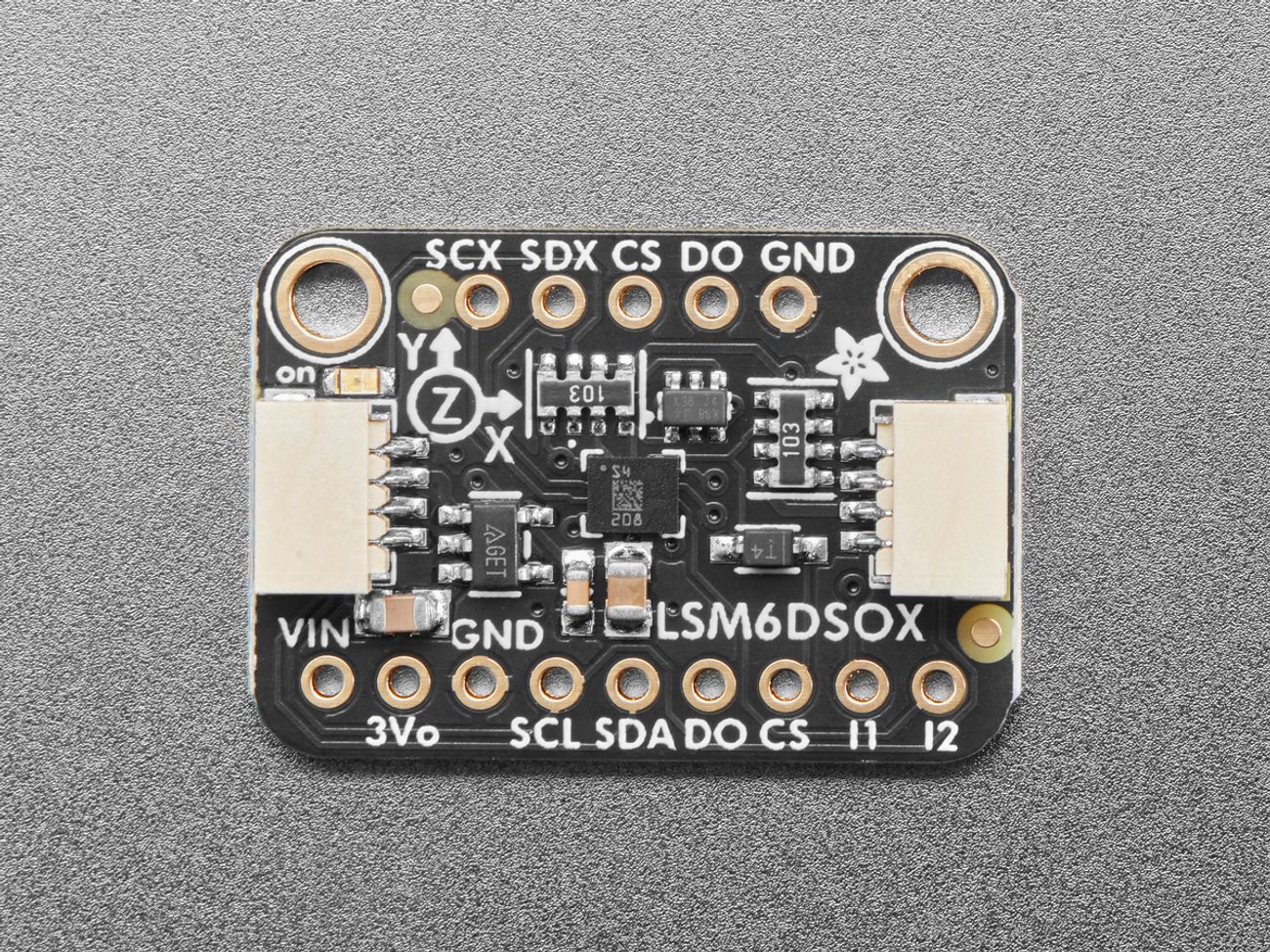

Pinout
| Specification | Details |
|---|---|
| Vin | Power input (3–5V DC). Onboard regulator converts to 3.3V. Use same voltage as microcontroller logic (e.g., 5V for Arduino). |
| 3Vo | 3.3V regulated output, can supply up to 100mA. |
| GND | Common ground for power and logic. |
| SCL | I2C clock pin with level shifting (3–5V safe) and 10K pull-up resistor. |
| SDA (I2C) | I2C data pin with level shifting (3–5V safe) and 10K pull-up resistor. |
| STEMMA QT | Connector for easy plug-and-play with compatible boards and accessories. |
| SCK | SPI clock input pin. |
| DO (SPI) | Data output from sensor to microcontroller (MISO). |
| SDA (SPI / SDI) | Data input from microcontroller to sensor (MOSI). |
| CS | Chip Select pin (active low) for SPI communication. |
| INT1 | Interrupt pin for signaling events like new data availability. |
| INT2 | Secondary interrupt pin for configurable events. |
| DO (Address Pin) | I2C address select pin. Low = 0x6A, High = 0x6B. |
| SCX, SDX, Aux CS, DO (Top) | Advanced pins for connecting external sensors (refer to datasheet). |
