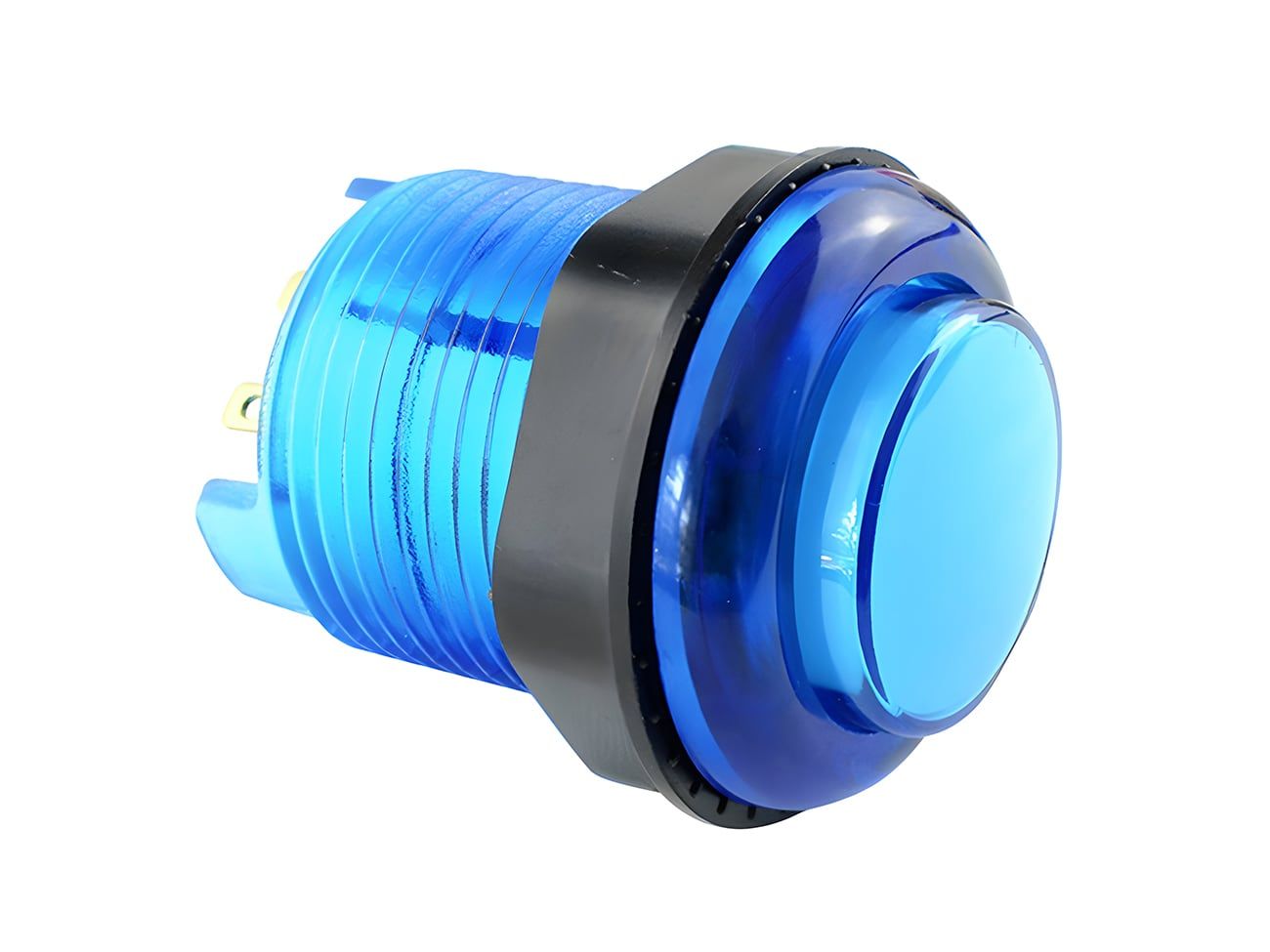

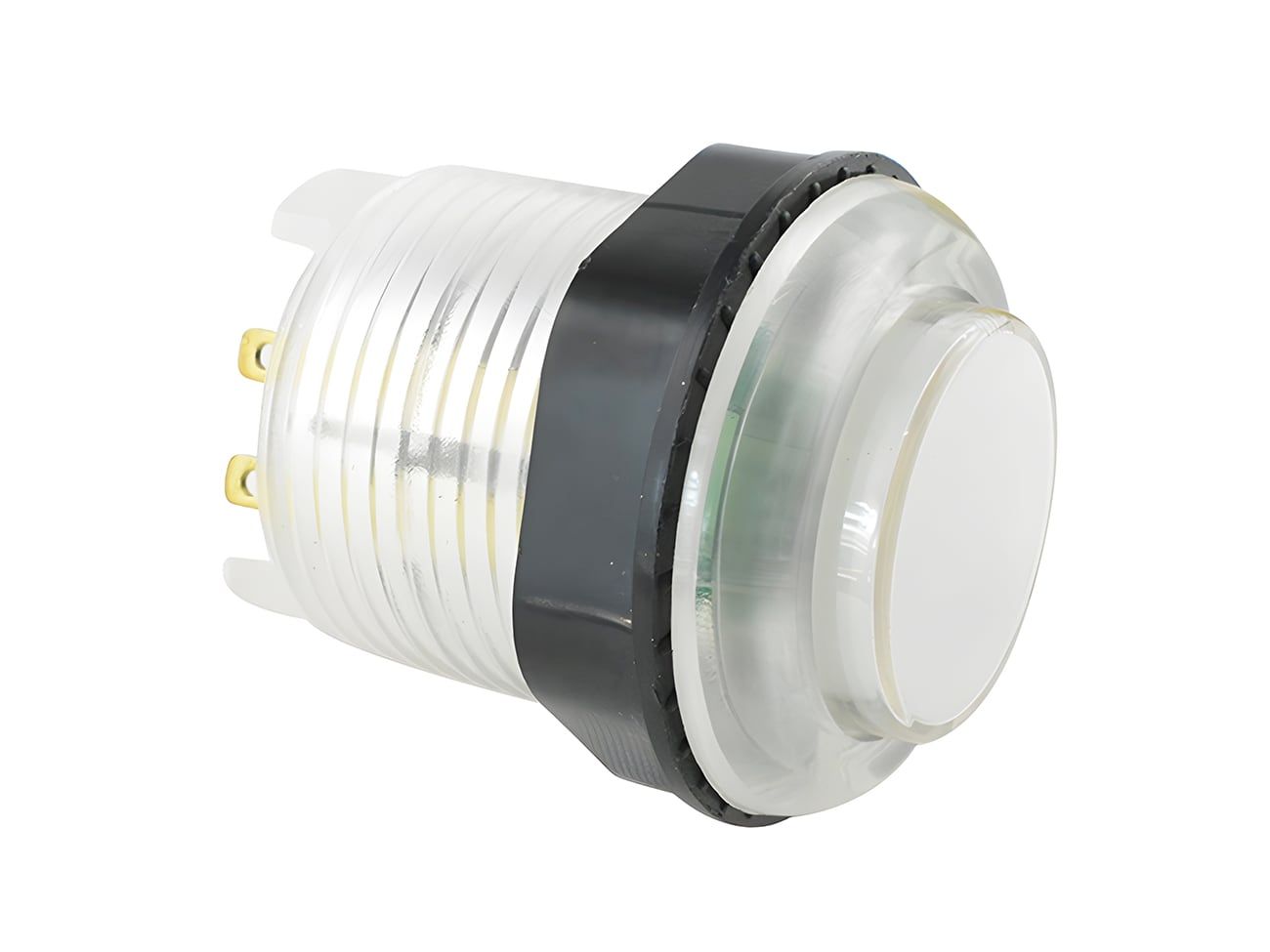

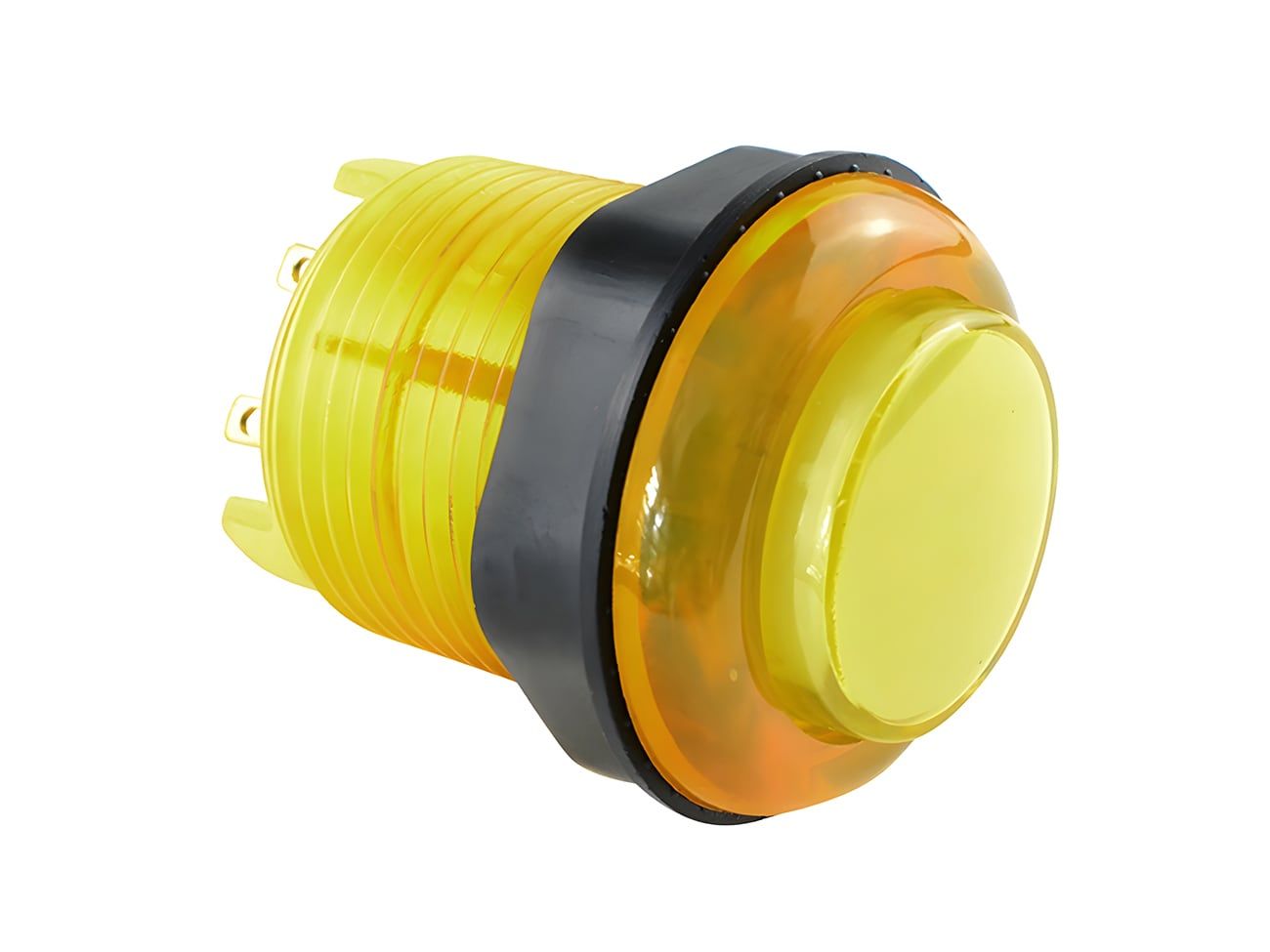

Add a splash of color to your arcade projects with this 28 mm Round Translucent Illuminated Push Button.

Featuring built-in LEDs, smooth tactile action, and gold-plated microswitch contacts, it’s perfect for arcade cabinets, control panels, and DIY gaming setups.

Available in red, green, blue, yellow, and white.

₹105.02

₹89.00 (Ex. of GST)

Ships Today from Mumbai

Order within 12h 51m

In Stock

Qty	Price	Save
1 - 3	₹105.02	-
4 - 9	₹98.72	6%
10 - 24	₹96.62	8%
25 - 49	₹94.52	10%
50+	₹89.27	15%

Quantity

Also Include

ASW-07D SPST Toggle Switch with LED Light and Flip Cover

₹159.30

₹135.00 excl. GST

In Stock

30mm Round Translucent Arcade Push Button

₹93.22

₹79.00 excl. GST

In Stock

Overview

Bring your arcade projects to life with this 28mm Round Translucent Illuminated Push Button. Designed for vibrant performance and smooth action, these buttons feature built-in LEDs that make every press glow brilliantly. Ideal for DIY arcade machines, control panels, and custom projects, they combine stylish design, durability, and easy installation.

Crafted from high-quality translucent plastic, these buttons emit an eye-catching glow in red, green, blue, yellow, or white. The built-in microswitch offers a soft tactile feel responsive yet quiet, perfect for gaming environments where precision matters. The button assembly includes a screw mount and nut, allowing secure installation through panels up to 20 mm thick.

Specification

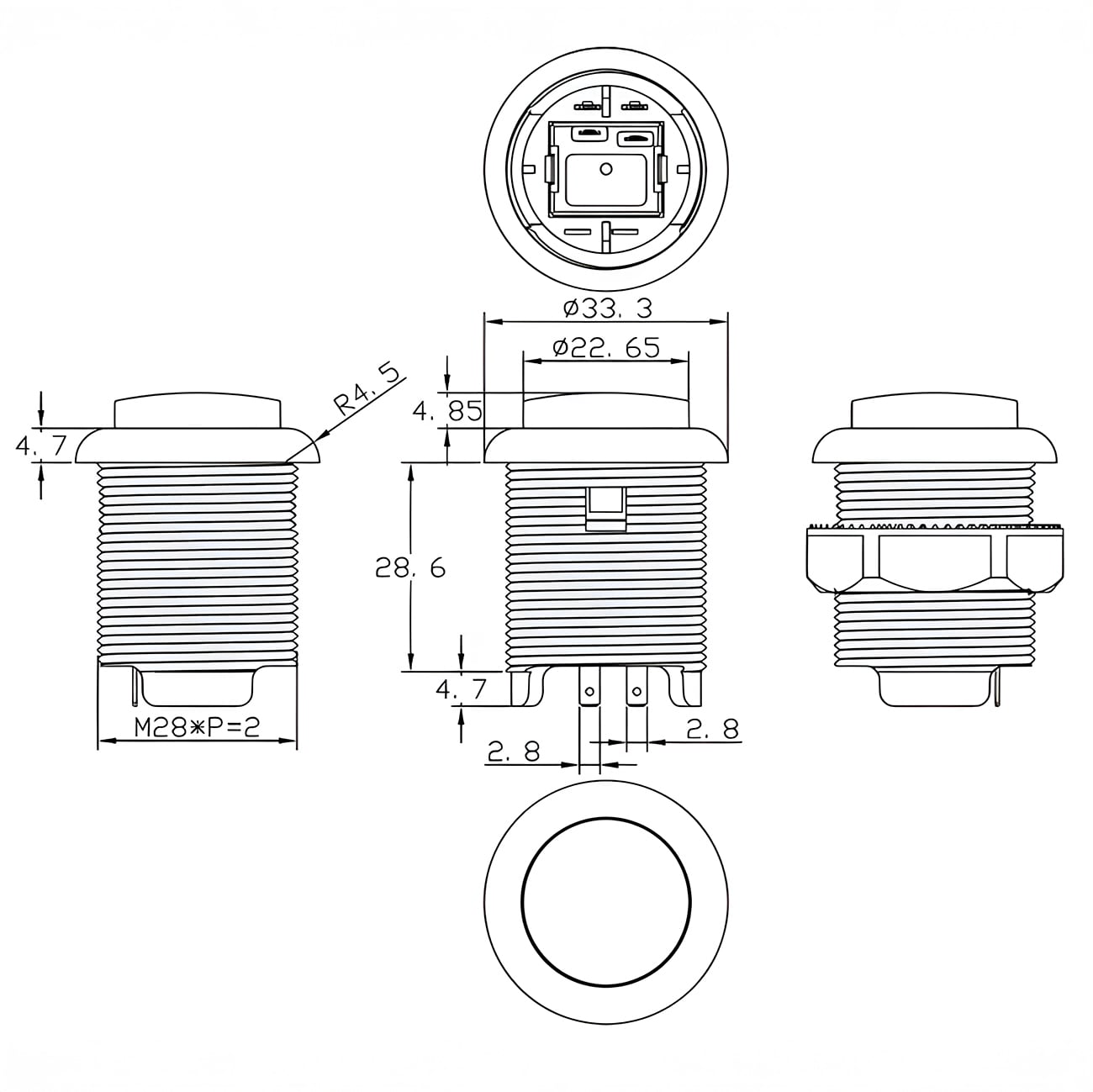

Technical details for 28mm Round Translucent illuminated Arcade Push Button.

Specification	Details
Mounting Hole Diameter	28 mm (Panel cutout)
Outer Diameter	33.3 mm
Mounting Thread	M28 × 2 mm pitch
Panel Thickness Support	Up to 20 mm
Button Height (above panel)	Approx. 4.7 mm
Total Length	Approx. 33.3 mm
LED Voltage	5 V DC (200 Ω resistor built-in)
LED Current	≈ 5 mA
LED Connection	2 LEDs in series with resistor
Switch Type	Momentary microswitch (NO)
Contact Material	Gold-plated
Available Colors	Red, Green, Blue, Yellow, White
Material	Translucent ABS plastic with black retaining ring
Applications	Arcade controls, DIY game cabinets, vending machines, simulation panels
