Overview

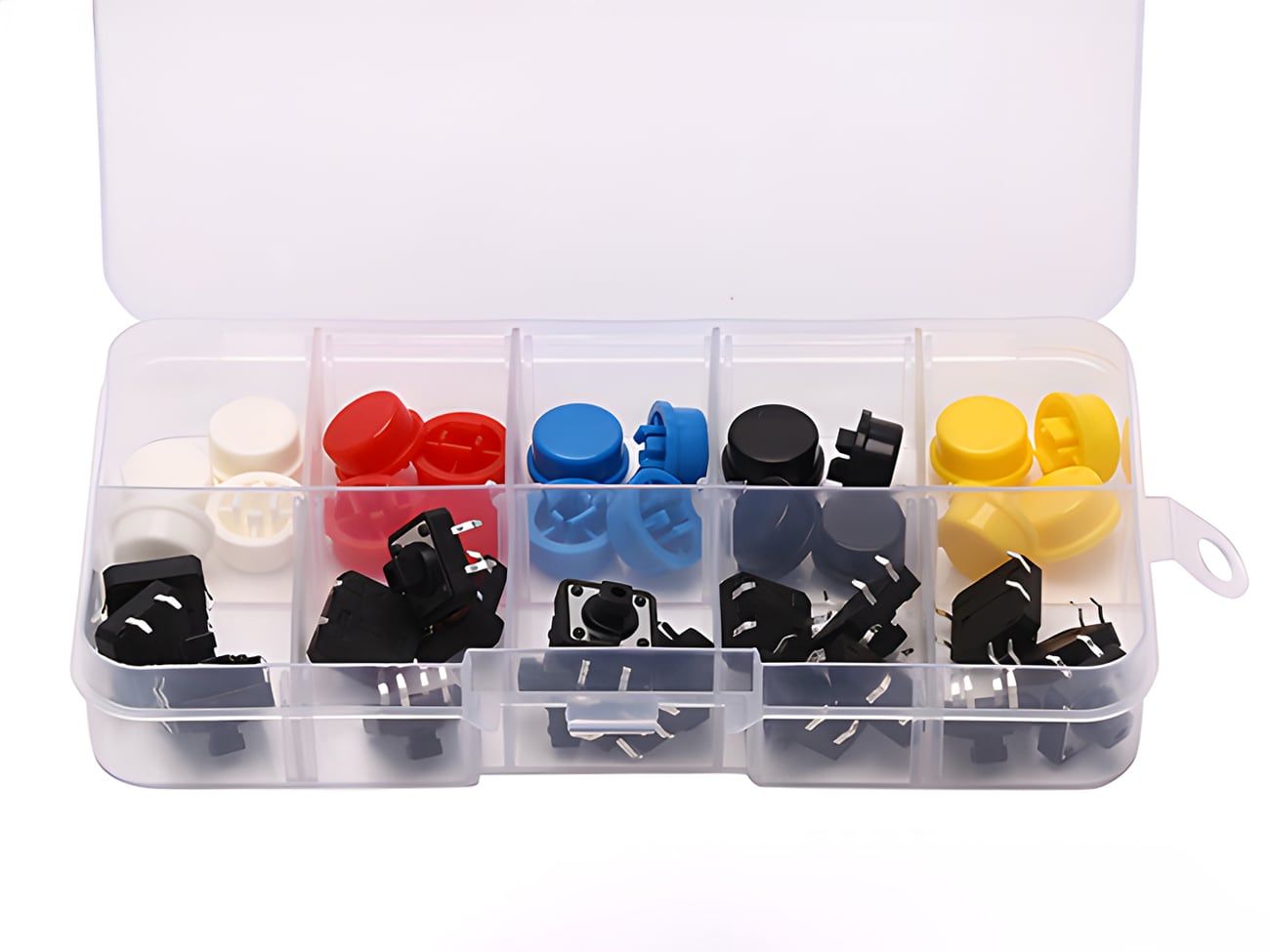

Bring your electronics projects to life with this 25-piece Tactile Button Switch Assortment Pack, featuring large 12×12 mm push buttons and colorful caps for easy identification.
Each push button is a momentary tactile switch with a normally open (NO) operating mode, providing a satisfying click response when pressed. These switches are rated for 50 mA at 12V DC, making them ideal for low-power input applications.
The tactile switches measure 12mm x 12mm x 7.3mm (L x W x H) and feature 4 through-hole pins for easy mounting on PCBs or breadboards. Included in the pack are 25 high-quality caps with a 12mm diameter, designed to fit snugly on each switch.
Specification
Detaisl for 25 Pcs Tactile Button Switch with Caps Assortment Pack.
| Specification | Details |
|---|---|
| Button Type | Momentary Tactile Push Button Switch |
| Operating Mode | Normally Open (NO) |
| Contact Rating | 50 mA at 12 V DC |
| Switch Size | 12mm x 12mm x 7.3mm (L x W x H) |
| Terminal Type | Through-Hole (4-pin) |
| Cap Diameter | Approx. 12mm |
| Cap Colors | Red, Yellow, Blue, White, Black (5 of each) |
| Quantity | 25 switches + 25 caps (Total: 50 pieces) |
| Application | Arduino, Raspberry Pi, DIY electronics, control panels, embedded systems |
