Overview

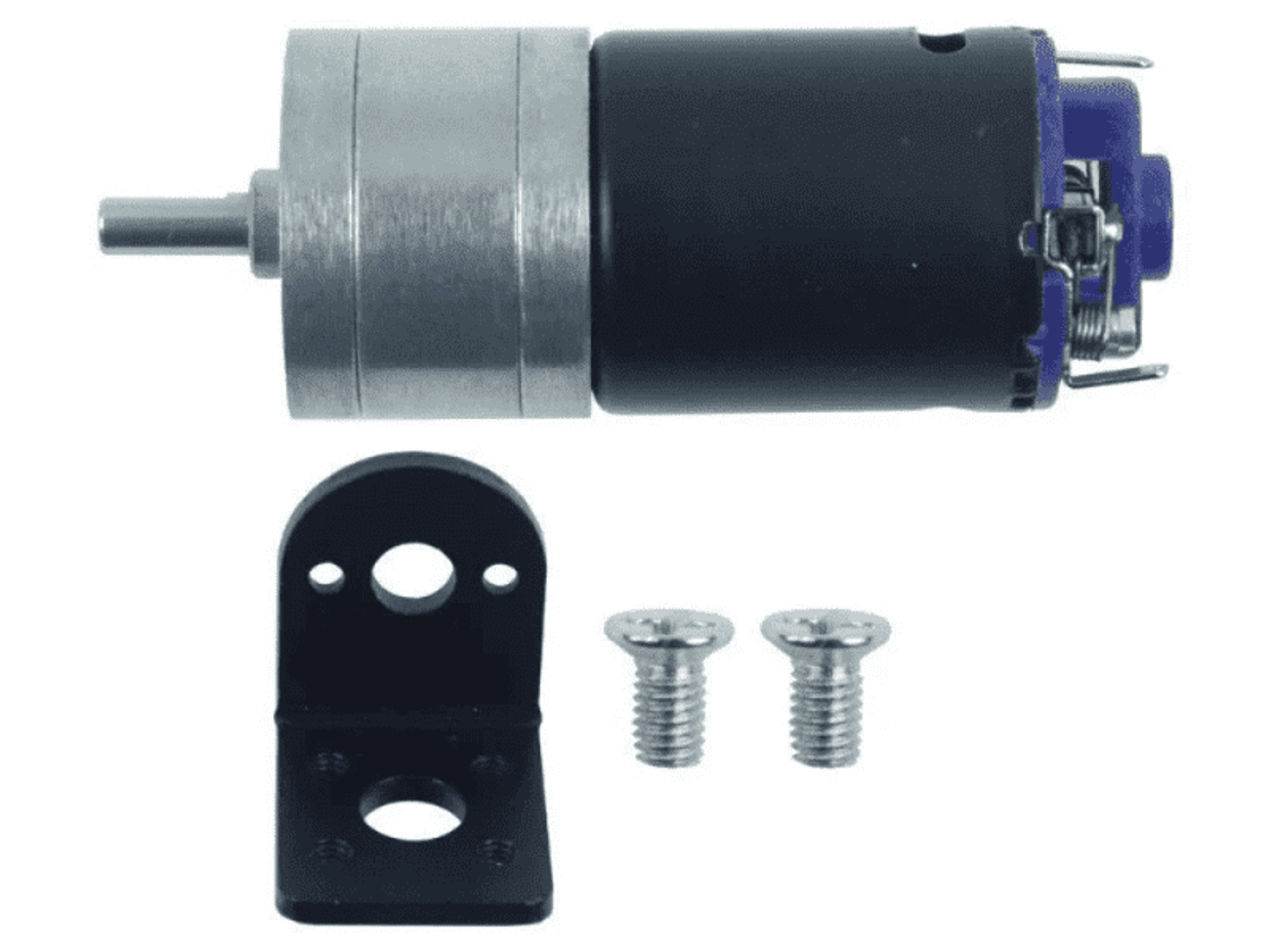

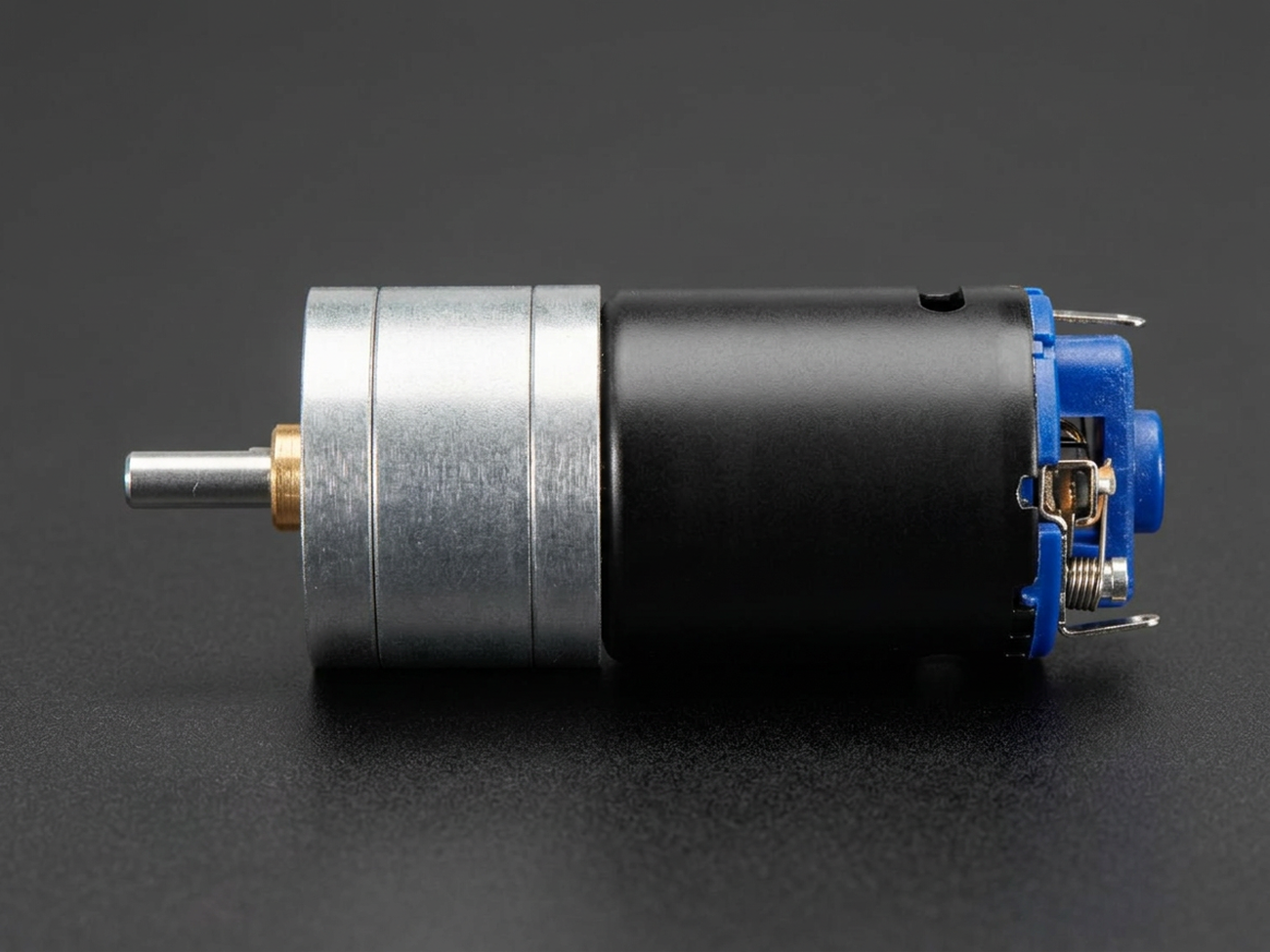

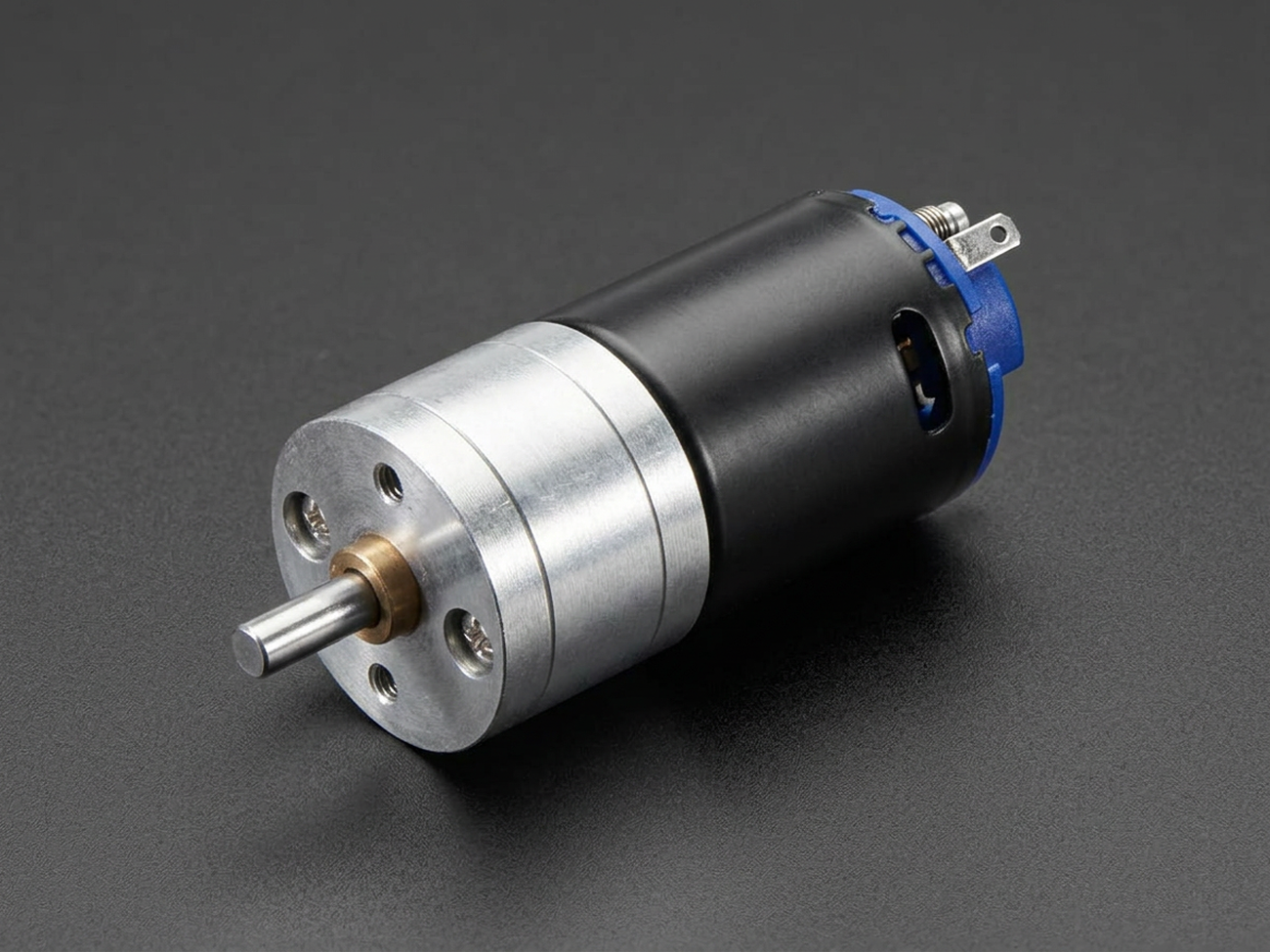

12V 980 RPM Brushed DC Geared Motor - 2.3 kgf·cm High Power is a compact GM25-style brushed DC geared motor designed for small mobile robots, sumo robots, and compact automation builds. It combines a 12V DC motor with a 20:1 gearbox to deliver high speed in a small form factor.
This motor offers a no-load speed of 980 RPM, a rated speed of 780 RPM, and a rated load torque of 225 mN·m (2.3 kgf·cm). That makes it a practical choice where fast wheel response and useful drive torque are both important, especially in competitive robot platforms and lightweight drive mechanisms.
For best performance, use it at its rated 12V. Running below 12V may not provide enough torque for the wheel or mechanism, while operating above 12V can increase speed and torque but may shorten motor life. Because this is a high-power motor with up to less than 16A stall current, it should be paired with a suitably rated motor driver or controller.
Specification
Technical details for 12V 980 RPM Brushed DC Geared Motor - 2.3 kgf·cm High Power.
| Specification | Details |
|---|---|
| Motor Type | Brushed DC geared motor |
| Model / Series | SPG20HP-20K / GM25 |
| Rated Voltage | 12VDC |
| Rated Current | 2.7A |
| Stall Current | < 16A |
| Gear Ratio | 20:1 |
| No Load Speed | 980 RPM |
| Rated Speed | 780 RPM |
| Rated Load Torque | 225mN.m (2.3kgf.cm) |
| Recommended Use | Small mobile robots, sumo robots, and compact automation models |
