Overview

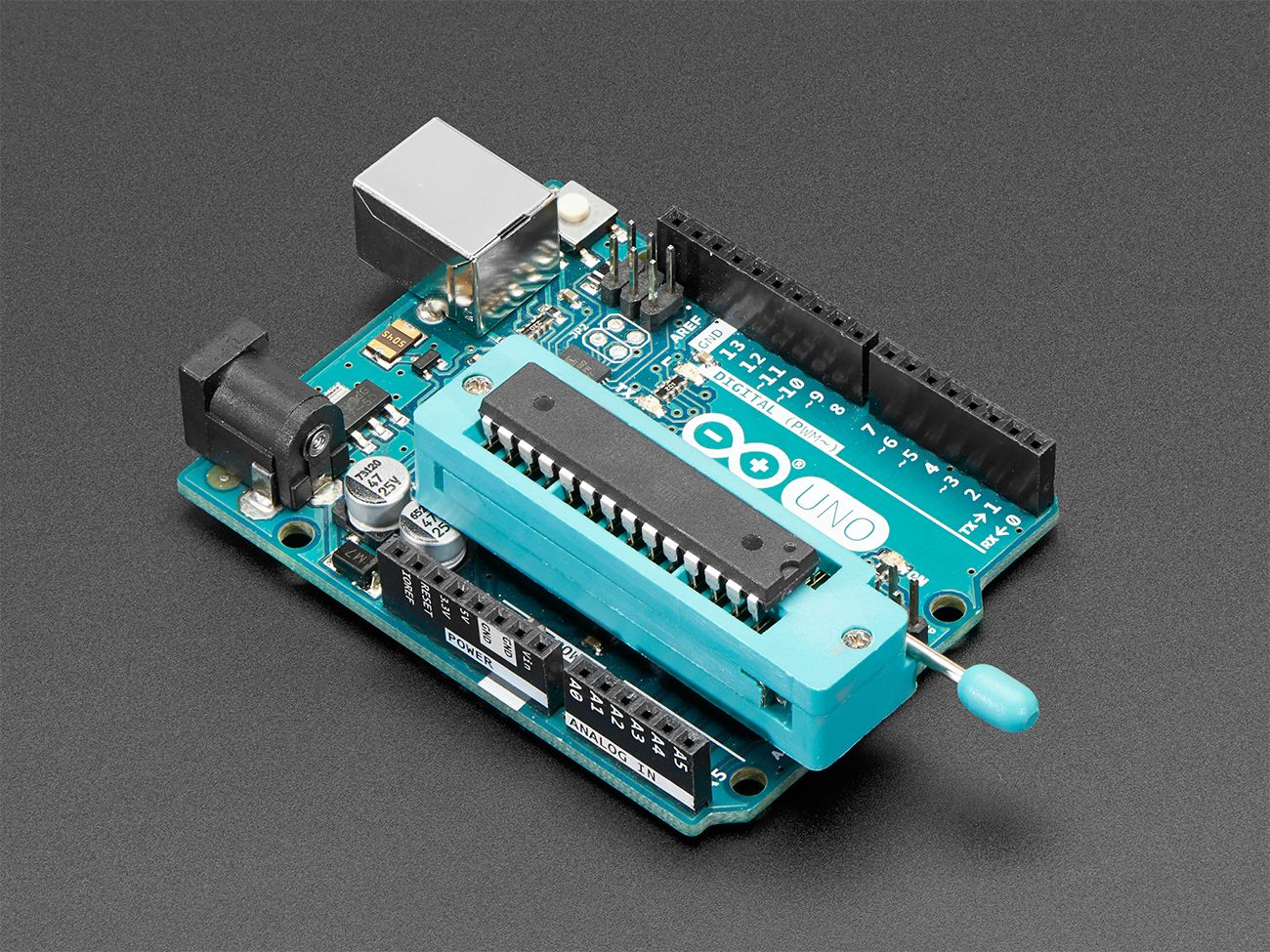

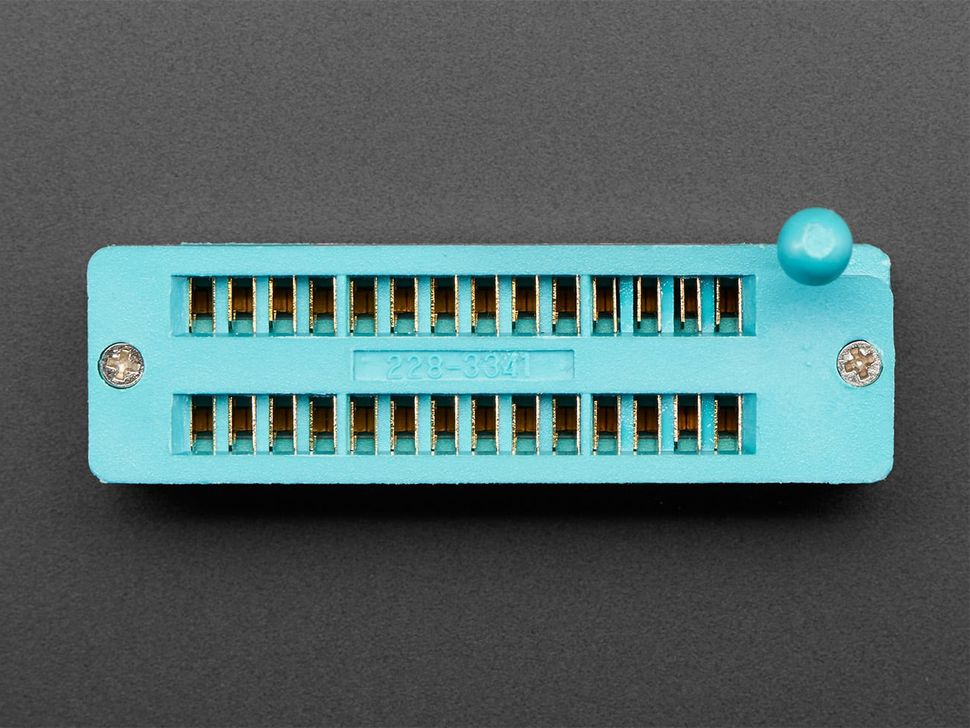

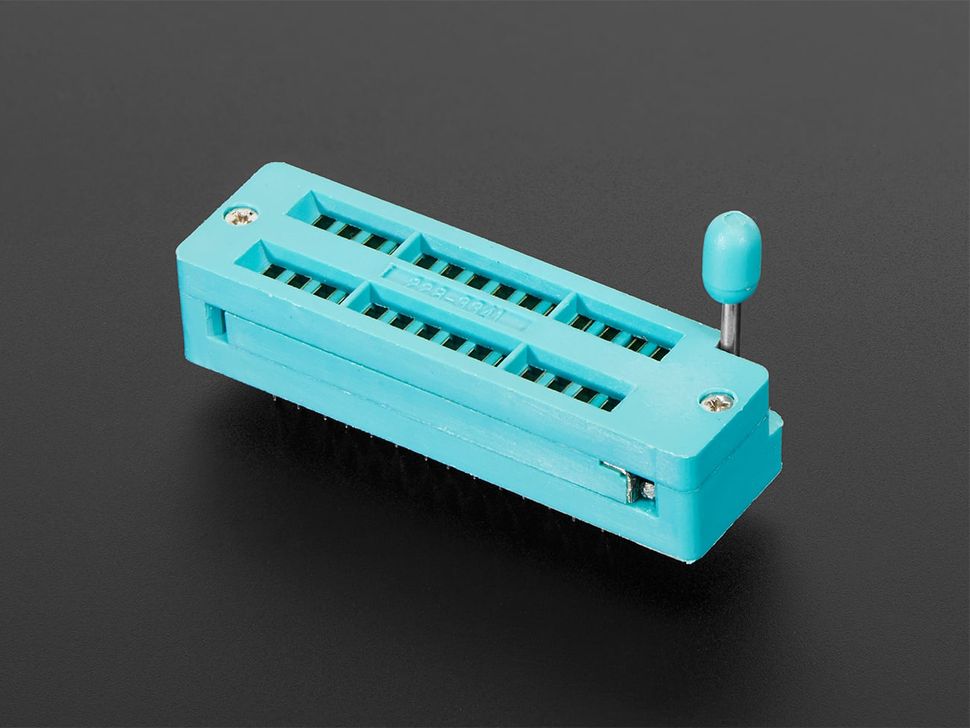

The ZIF IC Socket is designed for effortless insertion and removal of DIP ICs without bending or damaging pins. With its lever-actuated zero insertion force mechanism, it is ideal for IC programming, testing, prototyping, and repeated chip replacement in development environments.
Built with durable A+ grade nylon housing and tin-plated copper contacts, this socket ensures reliable electrical connectivity, excellent insulation resistance, and long service life. The standard 2.54mm pitch makes it fully compatible with common DIP IC packages used in microcontrollers, EEPROMs, logic ICs, and development boards.
Specification
| Specification | Details |
|---|---|
| Socket Type | Zero Insertion Force (ZIF) DIP Socket |
| Pitch | 2.54mm (0.1 inch) |
| Contact Material | Copper Alloy |
| Contact Plating | Tin Plated |
| Housing Material | A+ Grade Nylon (Heat Resistant) |
| Mounting Type | Through-Hole |
| Operating Mechanism | Manual Lever Lock |
| Operating Temperature | Suitable for standard soldering processes |
Pinout
| Positions (Pins) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 14P | 32.6 | 28.2 | 15.24 | 14.90 | 7.62 |
| 16P | 35.1 | 30.7 | 17.78 | 14.90 | 7.62 |
| 18P | 37.6 | 33.2 | 22.32 | 14.90 | 7.62 |
| 20P | 40.2 | 35.8 | 22.86 | 14.90 | 7.62 |
| 24P | 45.3 | 40.9 | 27.94 | 14.90 | 7.62 |
| 28P | 50.4 | 46.0 | 33.02 | 14.90 | 7.62 |
| 32P | 55.5 | 51.1 | — | 18.84 | 15.24 |
| 40P | 65.6 | 61.2 | — | 22.52 | 15.24 |
| 48P | 75.8 | 71.4 | — | 22.52 | 15.24 |
