SKU: TH1314

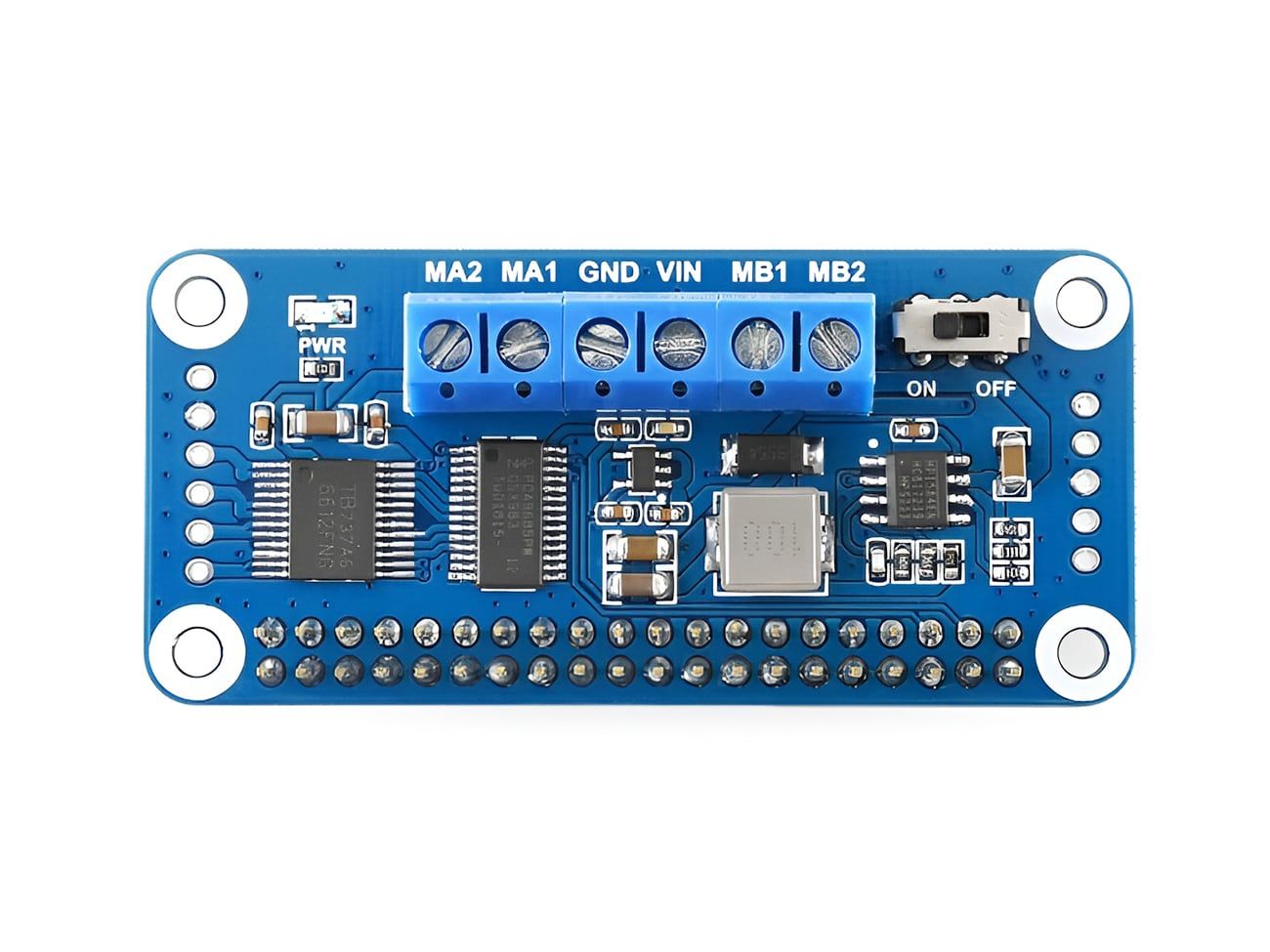

The Motor Driver HAT for Raspberry Pi is a motor controller board involving DC motors and stepper motors. It utilizes the TB6612FNG dual H-bridge motor driver for efficient performance and is controlled via the I2C interface, making it easy to integrate with Raspberry Pi boards.
Sold Out!
We will notify you when this item is back in stock. Please enter your email or mobile number.
The Motor Driver HAT for Raspberry Pi is a motor controller board involving DC motors and stepper motors. It utilizes the TB6612FNG dual H-bridge motor driver for efficient performance and is controlled via the I2C interface, making it easy to integrate with Raspberry Pi boards.
The HAT requires a power supply of 6V to 12V connected through the VIN terminal, with a logic voltage of 3.3V. It features a PWM driver (PCA9685) for precise motor control, allowing you to adjust motor speed with 12-bit hardware PWM. The motor driver can drive two DC motors or one stepper motor at a time.

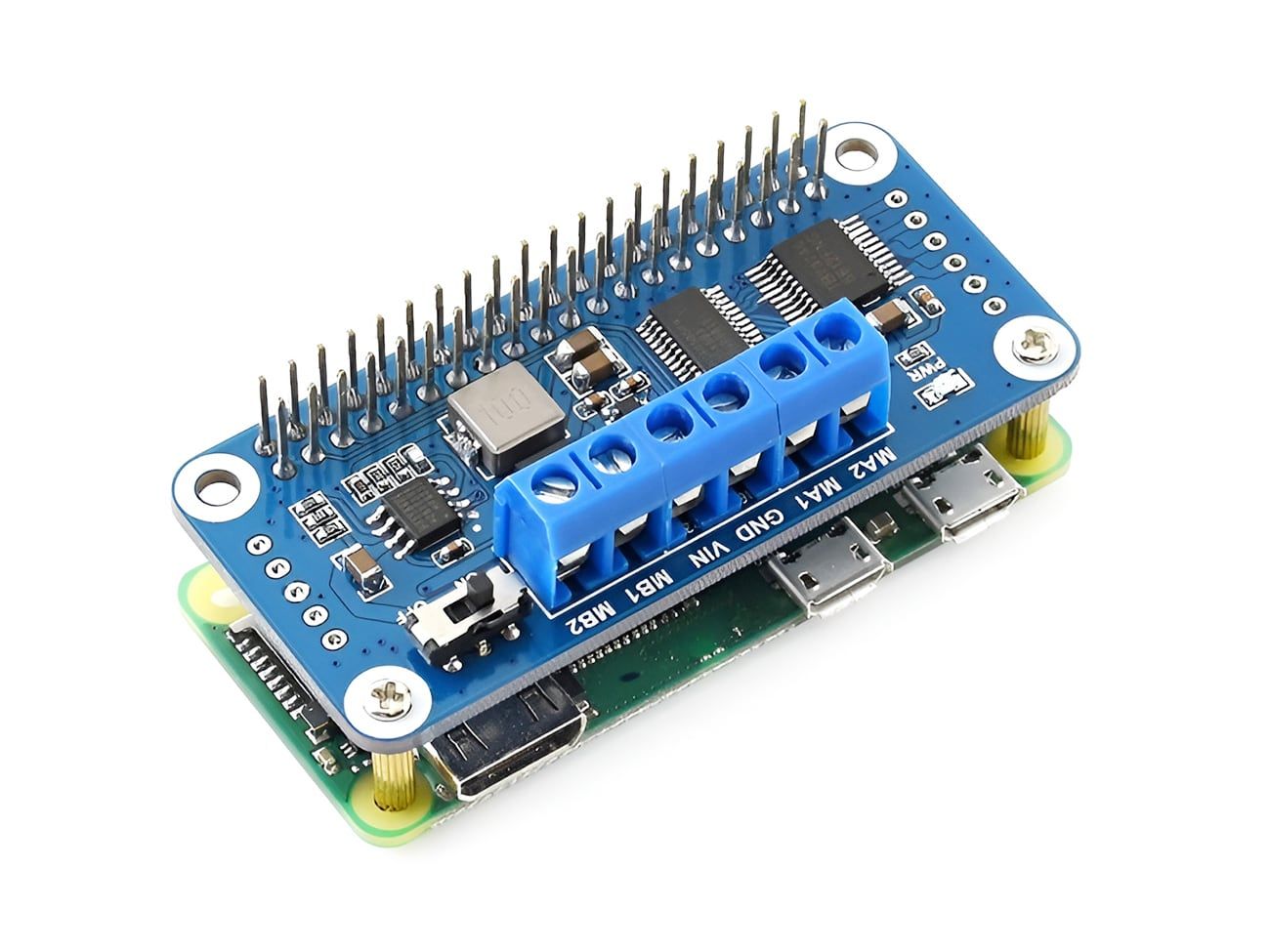

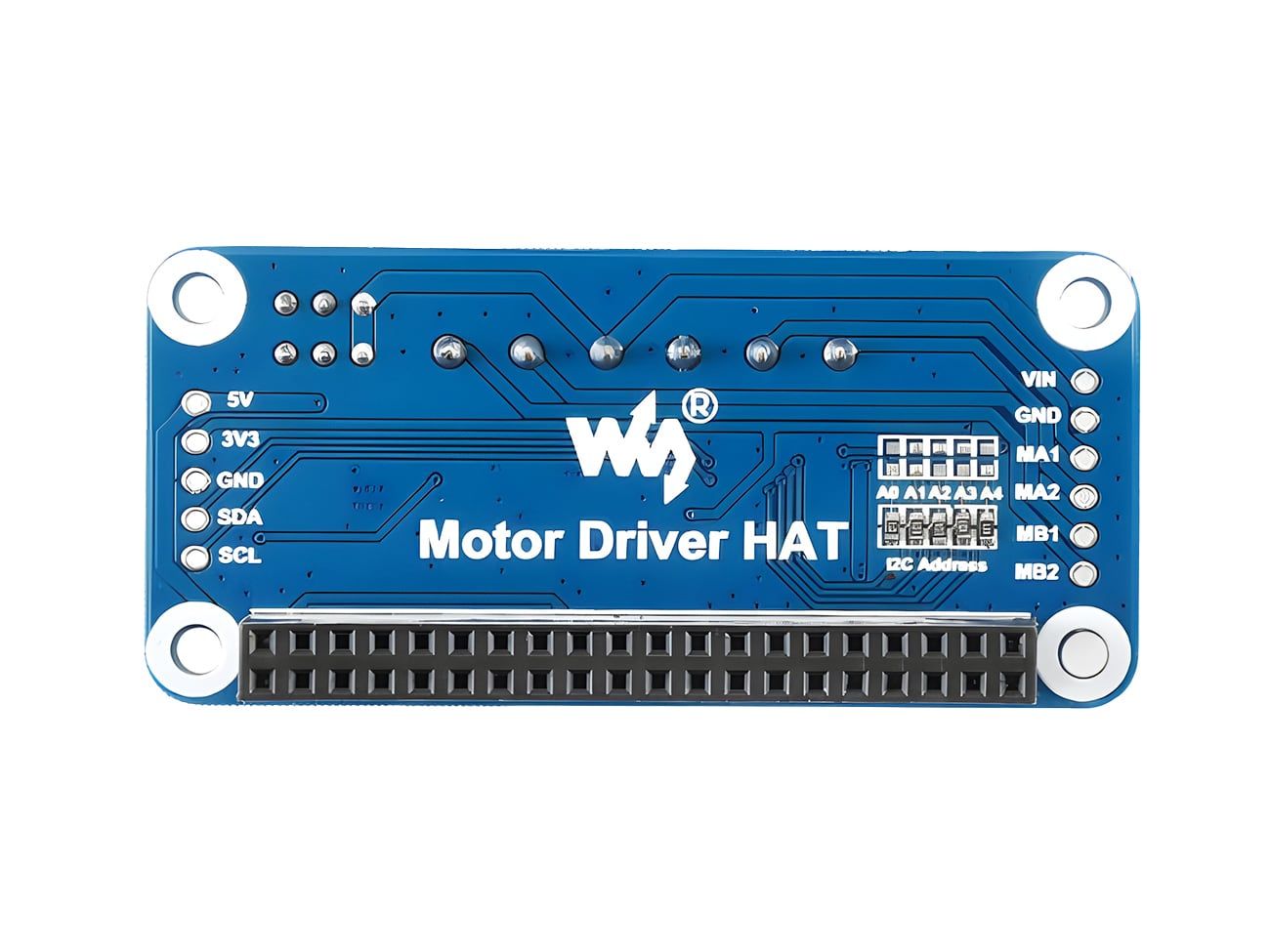

The HAT is stackable by chaging the 5 address jumpers, supporting up to 32 stacked boards and is compatible with Raspberry Pi boards via the 40-pin GPIO header. Additionally, the board includes a set of reserved I2C control pins for integrating other control boards.
Technical specification for Waveshare Motor Driver HAT for Raspberry Pi.
| Specification | Details |
|---|---|
| Motor Driver | TB6612FNG |
| PWM Driver | PCA9685 |
| Power Supply | 6V to 12V (connected through the VIN terminal) |
| Logic Voltage | 3.3V |
| Control Interface | I2C |
| Dimensions | 65mm x 30mm |
| Mounting Hole Size | 3.0mm |
Here's whats included in the box.

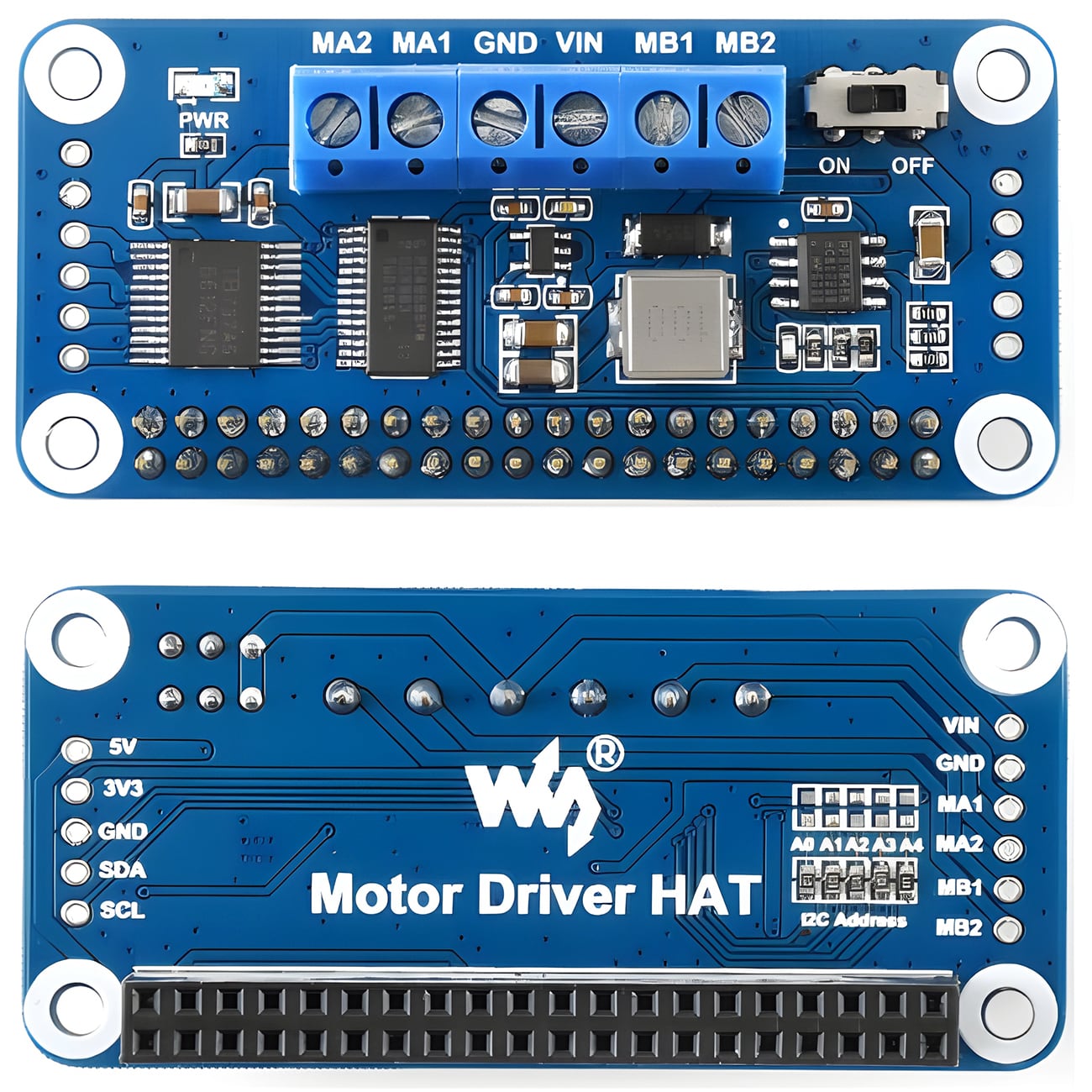

Pinout for Waveshare Motor Driver HAT for Raspberry Pi.
| PIN | Description |
|---|---|
| 5V | 5V |
| 3V3 | 3.3V |
| GND | Ground |
| SDA | I2C Data Pin |
| SCL | I2C Clock Pin |
| VIN | Driver voltage for motor (6-12V) |
| A1 | Positive pole of motor A |
| A2 | Negative pole of motor A |
| B1 | Positive pole of motor B |
| B2 | Negative pole of motor B |
