Overview

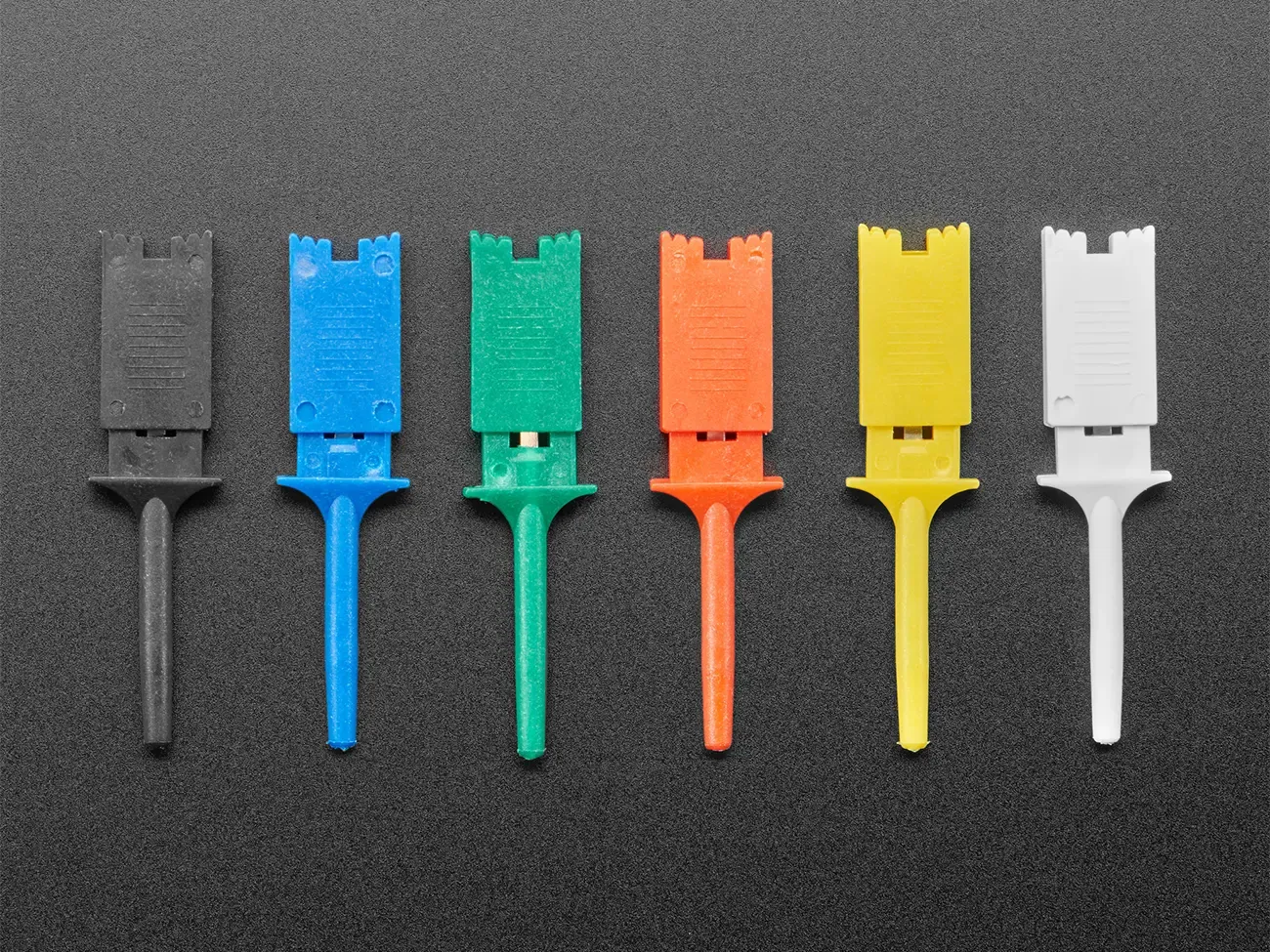

Make accurate signal measurements easier and safer with these multi-color test hook grabber probe clips. Designed for hands-free testing, they securely latch onto component leads, IC legs, header pins, and small test points—ideal for multimeters, oscilloscopes, logic analyzers, and power supplies.
These miniature grabber clips feature a spring-loaded hook mechanism that extends when pressed and firmly grips the target point when released. The insulated housing improves safety during live testing, while the color-coded design helps you quickly identify signal lines during debugging, prototyping, or repair work.
Why Choose These Grabber Clips?
Standard probe tips can easily slip off fine-pitch pins and small pads. These hook grabbers clamp securely in place, freeing your hands for adjustments or data capture. They reduce the risk of short circuits and improve measurement stability during sensitive testing.
Specification
Technical details for Multi-Color Test Hook Grabber Probe Clips.
| Specification | Details |
|---|---|
| Color Options | White, Yellow, Orange, Green, Blue, Black |
| Hook Mechanism | Spring-loaded retractable metal hook |
| Overall Length | Approx. 45–50 mm |
| Maximum Hook Opening | Approx. 3–4 mm |
| Body Material | Insulated ABS Plastic Housing |
| Contact Material | Nickel-plated spring steel (typical) |
| Connection Type | Solder termination / compatible with test lead wire |
| Recommended Voltage Rating | Up to 24V DC (low-voltage signal testing) |
| Recommended Current Rating | Up to 500mA (signal-level use recommended) |
| Application | Multimeter, Oscilloscope, Logic Analyzer, PCB Debugging |
| Operating Use | Low-voltage electronics testing only |
