MaxBotix MB7389 HRXL-MaxSonar-WRMT
- Product ID: 8425
- MPN: MB7389
Features of the weather resistant MB7389, HRXL-MaxSonar-WRMT, include millimeter resolution, short to long distance detection, range information from 300mm to 5000mm to the target with the largest acoustic return, a 6.7Hz read rate, and various output options: pulse-width, analog voltage, and TTL serial.
The MB7389 from the HRXL-MaxSonar-WR line of outdoor sensors is a rugged ultrasonic sensor component module. This sensor comes in a compact and robust PVC housing which meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings (this product has multiple housing options available).
The HRXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
The MB7389 is designed to report the distance to the largest acoustic return while ignoring smaller targets. When targets are of similar amplitude reflections, preference is given to the closest target. This gives users the flexibility to consistently detect larger targets in the presence of clutter and noise.
If the largest target is removed from the field of view, the MB7389 will switch to the target that gives the next largest detectable return. This filtering makes the MB7389 one of our most advanced sensors for outdoor tank and bin applications.
In addition, the MB7389 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.

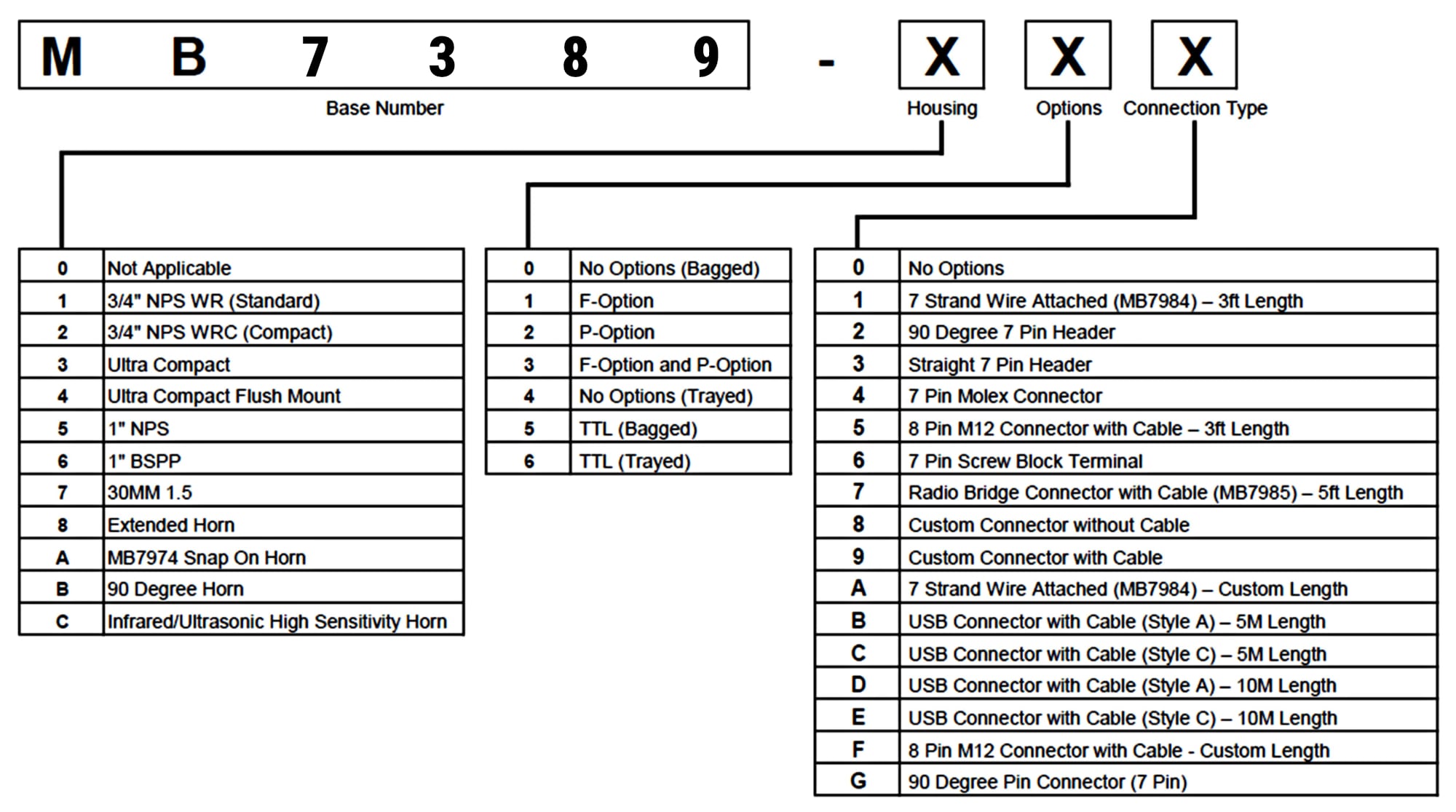

Variations on this sensor model
Models with additional chemical resistance are available
The F-Option (IP68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.
- Resolution of 1-mm
- 6.66Hz read rate
- Internal temperature compensation
- 42kHz ultrasonic sensor measures distance to objects
- RoHS Compliant
- Read from all 3 sensor outputs: Analog Voltage, Serial, Pulse Width
- Virtually no sensor dead zone, objects closer than 30cm typically range as 30cm
- Operates from 2.7-5.5V
- Low 2.9mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Operational temperature -40°C to +65°C (-40°F to +149°F)
- Real-time automatic calibration (voltage, humidity, and ambient noise)
- Firmware filtering for excellent noise tolerance and clutter rejection
- Weather resistant (IP67), optional chemical resistant F-Option
- Matches standard electrical 3/4-inch PVC pipe fittings for easy mounting (3/4-inch National Pipe Thread Straight)
- Long, narrow detection zone
- Our most advanced weather resistant, ultrasonic sensor
- Additional stability filter rejects anomalous readings
- Detects the largest signal return in the field of view
- Uses the complete dynamic range of the sensor, if no large targets are present the sensor will select the next smallest target in view
- Can be used to range large objects behind small obstructions
- Best sensor for bin and tank level measurements
- Maximum range of 500 cm (196 inches)
Volume Pricing (100 or more units): Contact MaxBotix Inc.
