SKU: TH1810
12mm round panel mount key lock switch designed for secure and controlled operation in industrial and electronic applications.
Available in self-locking, double-turn, and self-reset operation types, with a durable metal body, smooth key rotation, and reliable 3A 250V AC switching performance. Ideal for control panels, machinery, and access-controlled systems.
| Qty | Price | Save |
|---|---|---|
| 1 - 3 | ₹69.62 | - |
| 4 - 9 | ₹65.44 | 6% |
| 10 - 24 | ₹64.05 | 8% |
| 25 - 49 | ₹62.66 | 10% |
| 50+ | ₹59.18 | 15% |

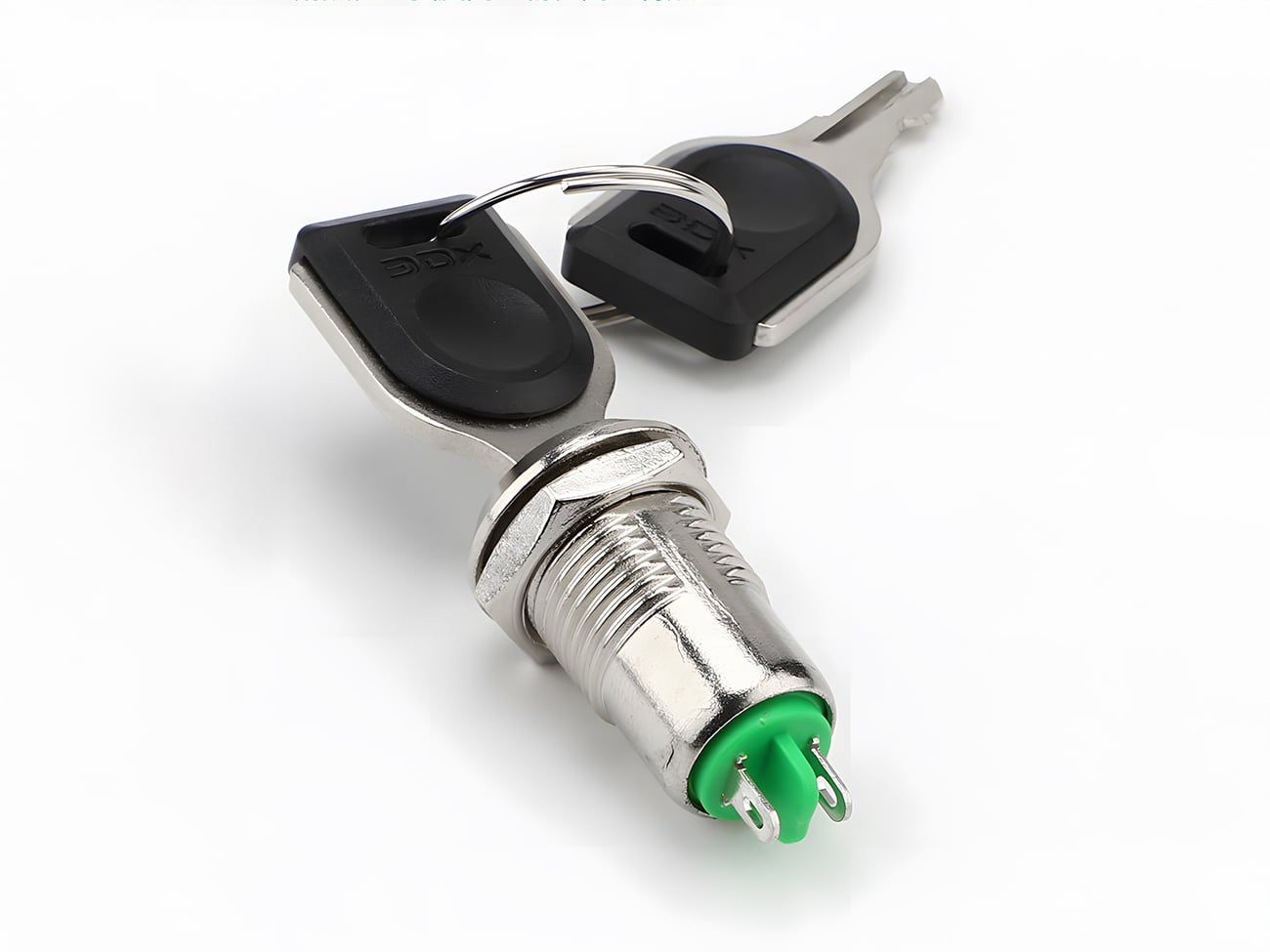

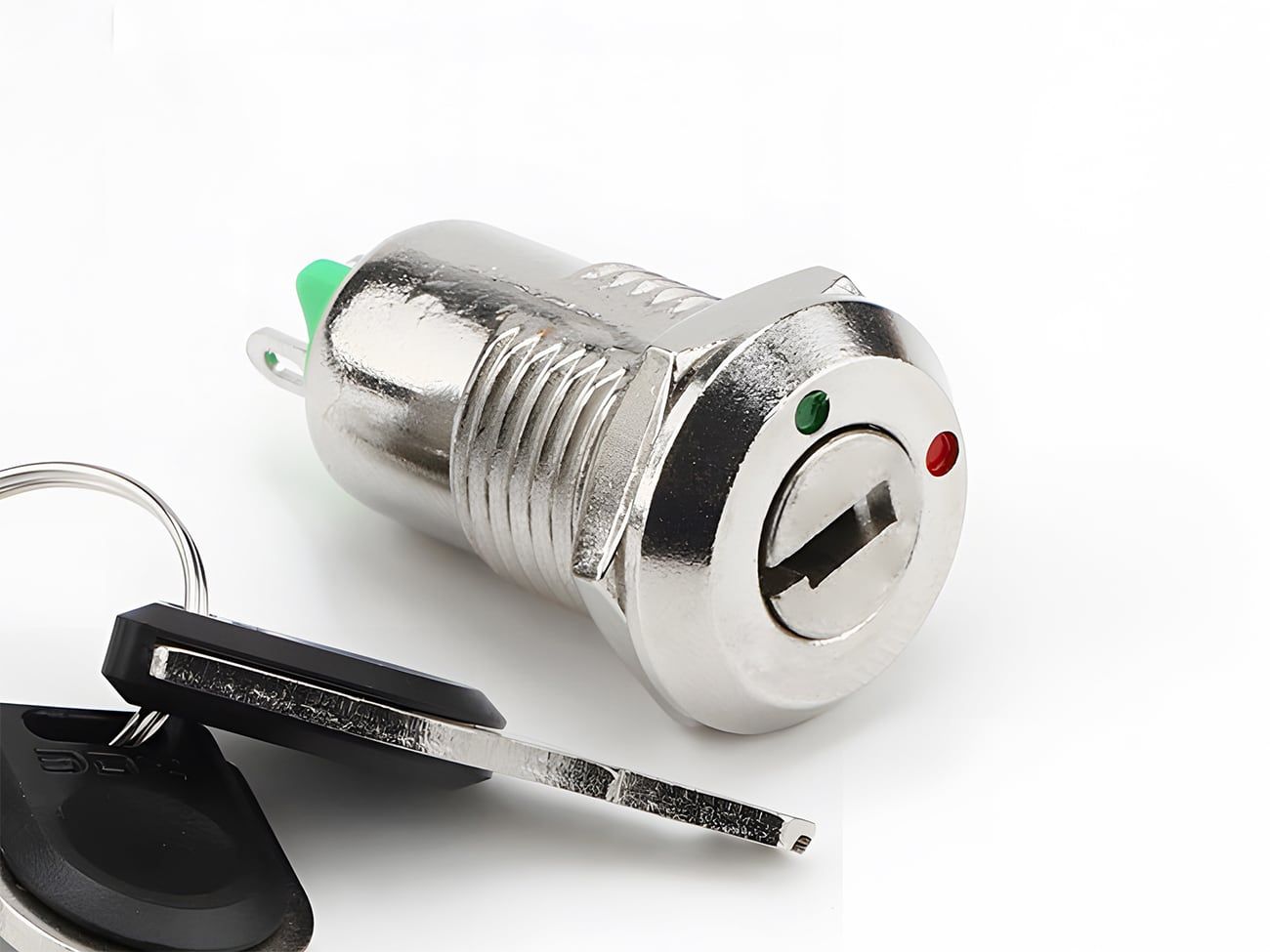

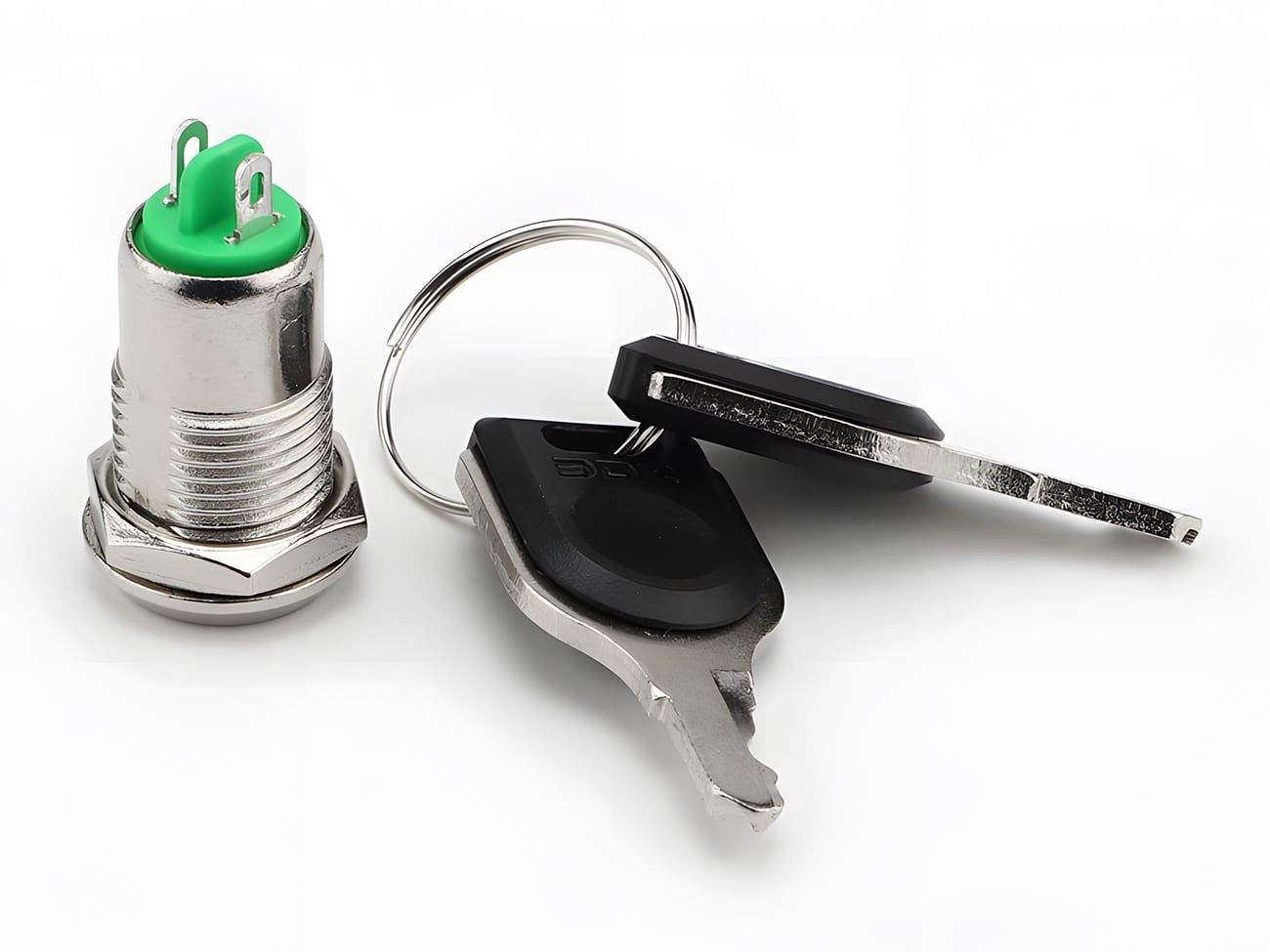

This 12mm panel-mount key lock switch is designed for applications that require controlled access, safety, and reliable operation. Built with a sturdy metal body and precision internal contacts, it is ideal for control panels, machinery, security systems, power equipment, and DIY electronics projects.
The switch features a self-locking (latching) mechanism with 2 selectable positions and self-reset (momentary) mechanism, allowing ON/OFF control using a key.
Its compact round form factor fits neatly into standard 12mm panel cutouts, making it easy to integrate into enclosures and dashboards.
Technical details for 12mm Round Key Lock Switch.
| Specification | Details |
|---|---|
| Product Type | Key Lock Switch (Panel Mount) |
| Model | XL16C-10Y2 |
| Body Material | Metal |
| Mounting Hole Diameter | 12mm (Round Panel Mount) |
| Rated Voltage / Current | 250V AC / 3A |
| Contact Configuration | 1NO (Normally Open) |
| Switch Positions | 2 Positions |
| Operation Type | Self-locking (Latching), Double-turn, Self-reset (Momentary) |
| Operating Temperature | -25°C to +55°C |
| Terminal Type | Solder Terminals (Silver-Plated) |

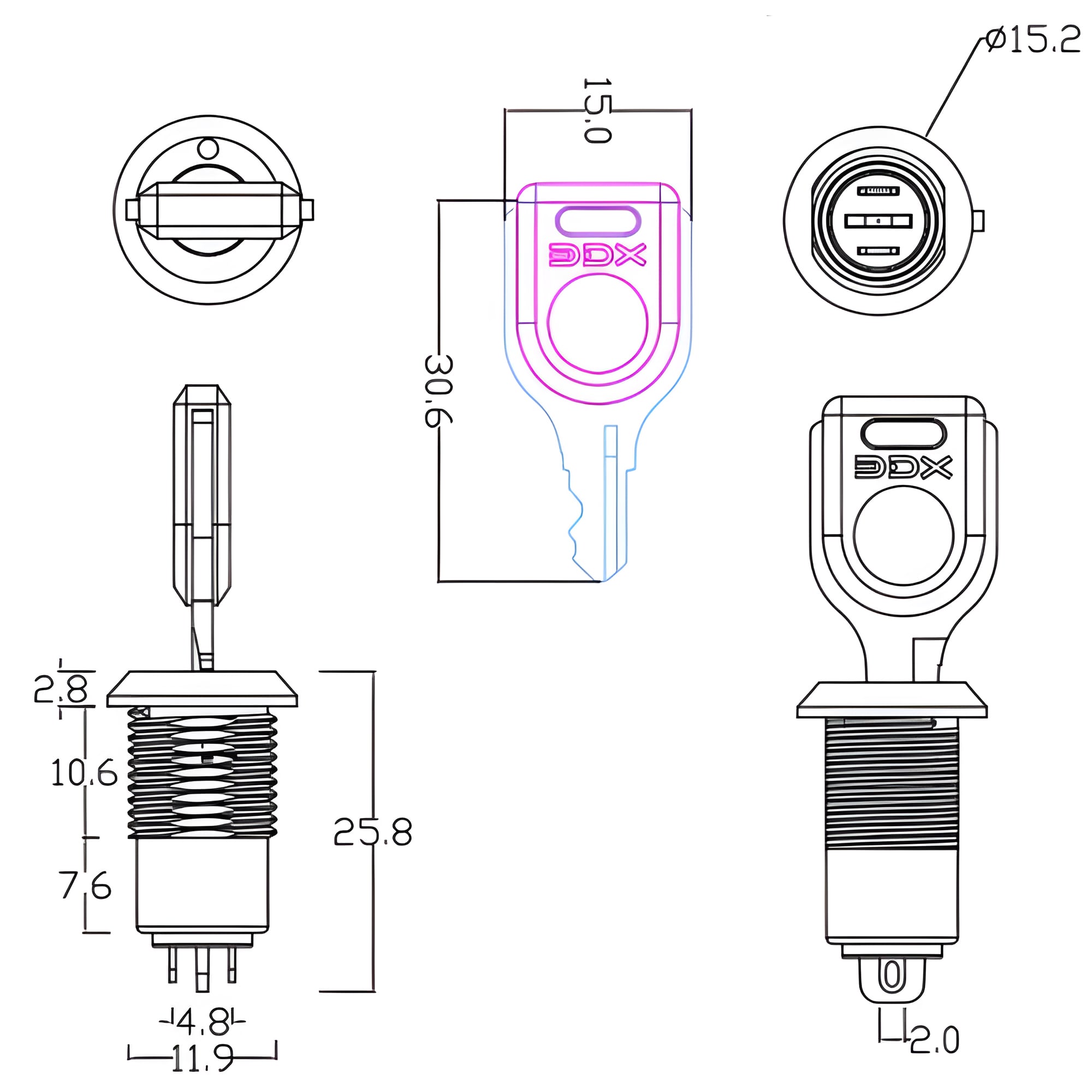

Drawing and dimensions for Key Lock Switch - 12mm Round Panel Mount
