SKU: TH1903

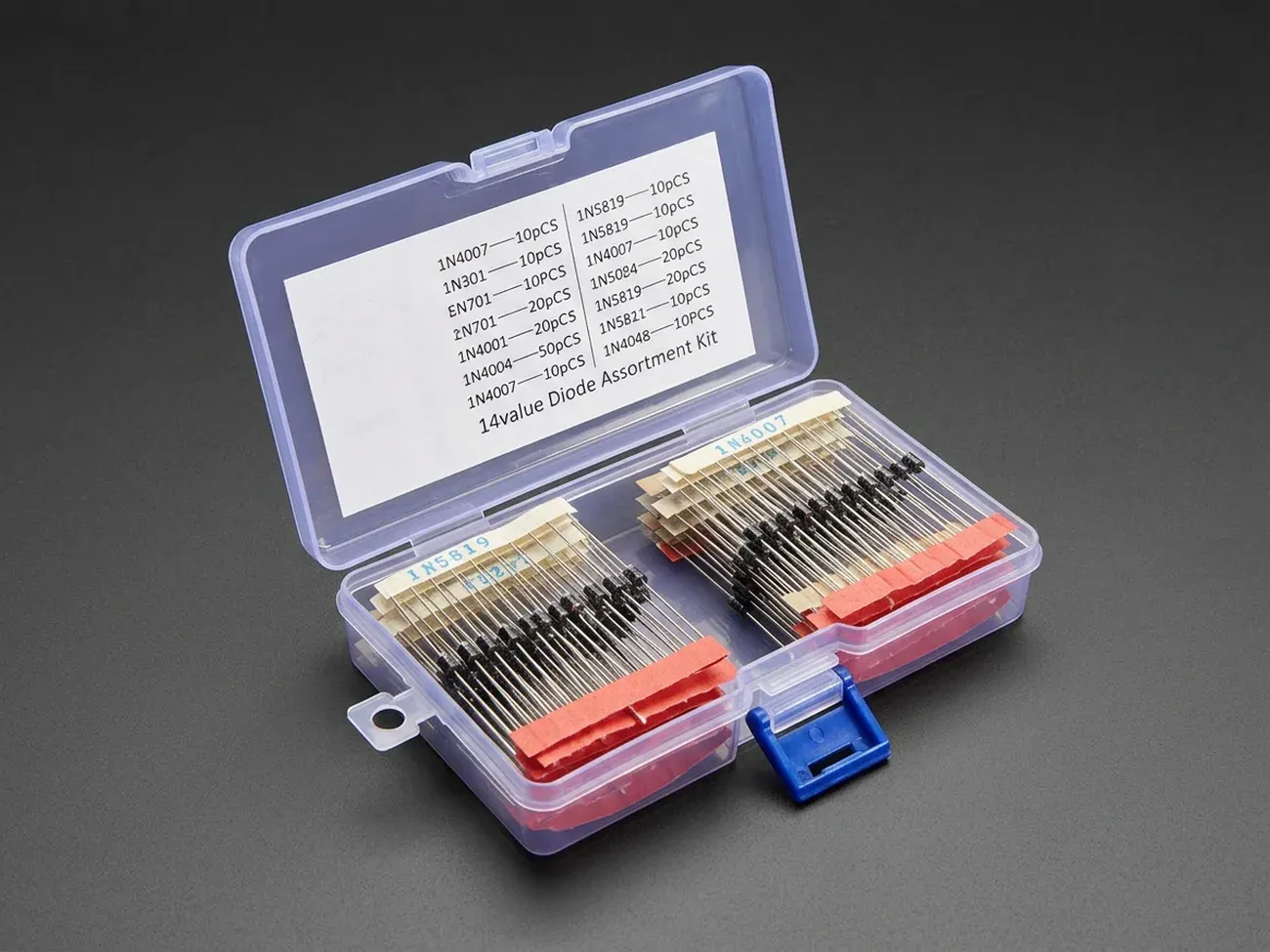

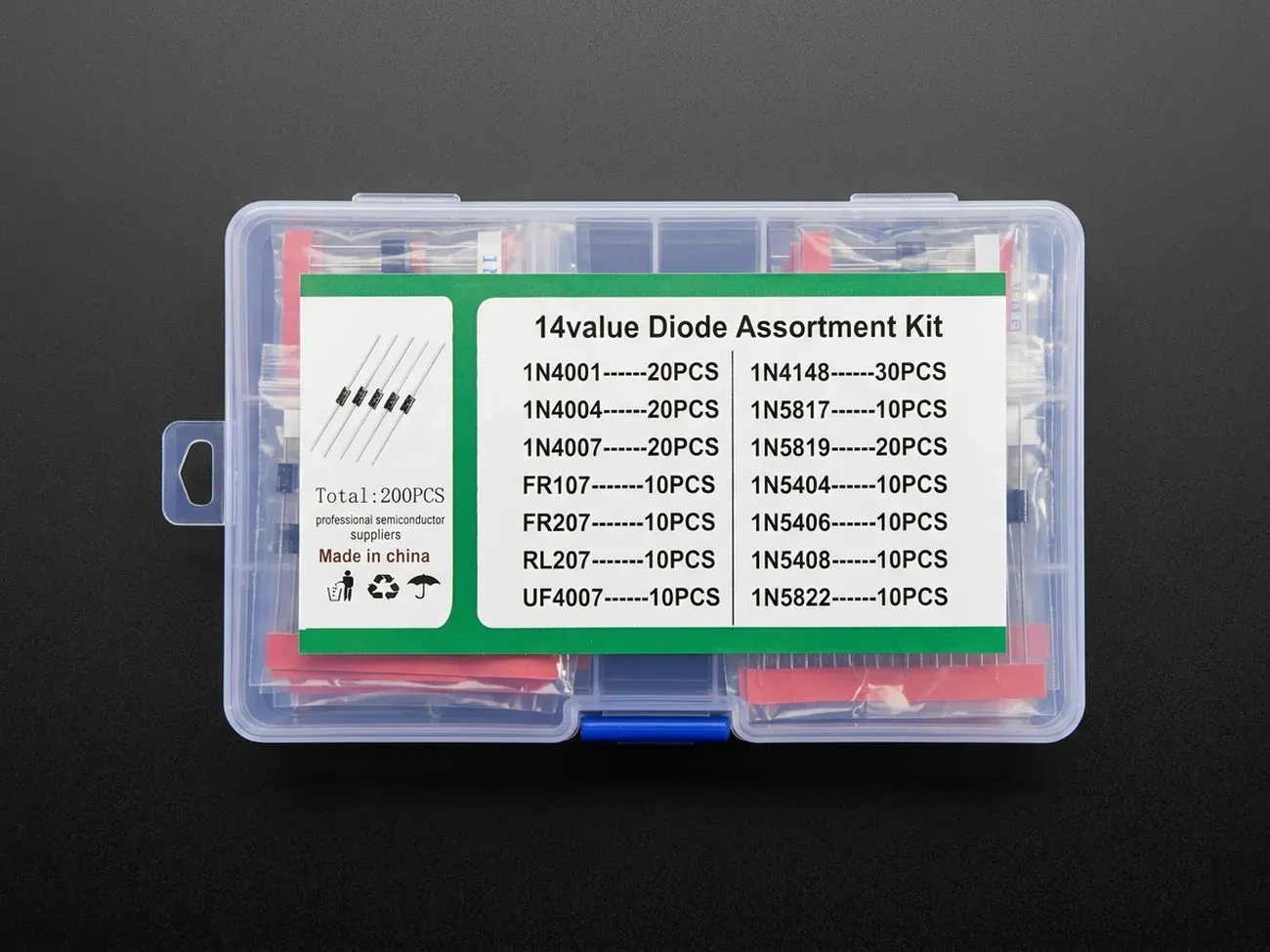

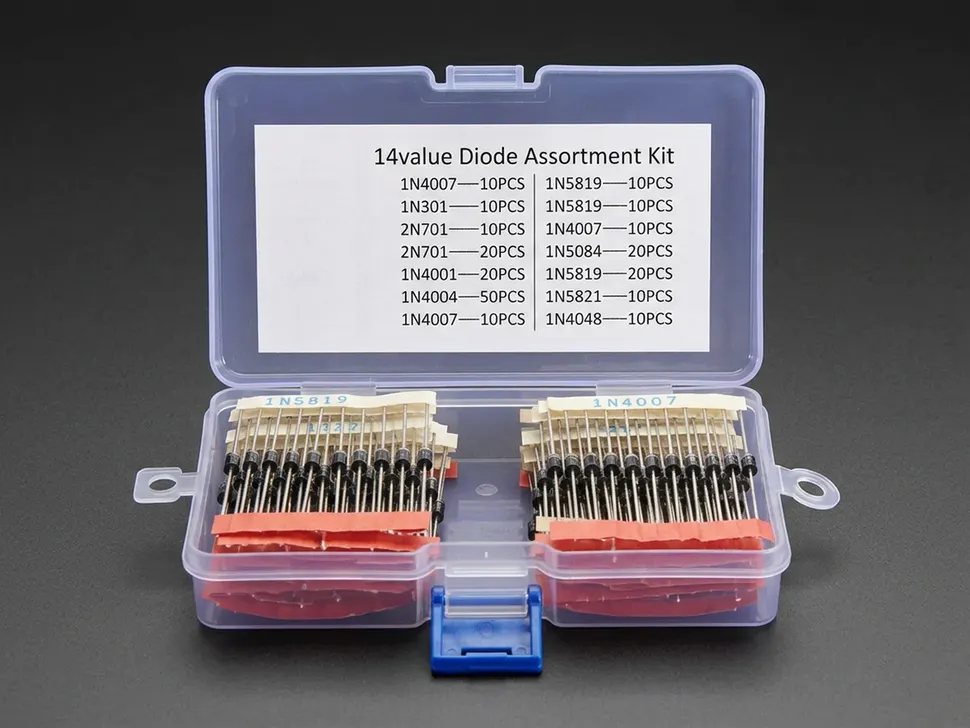

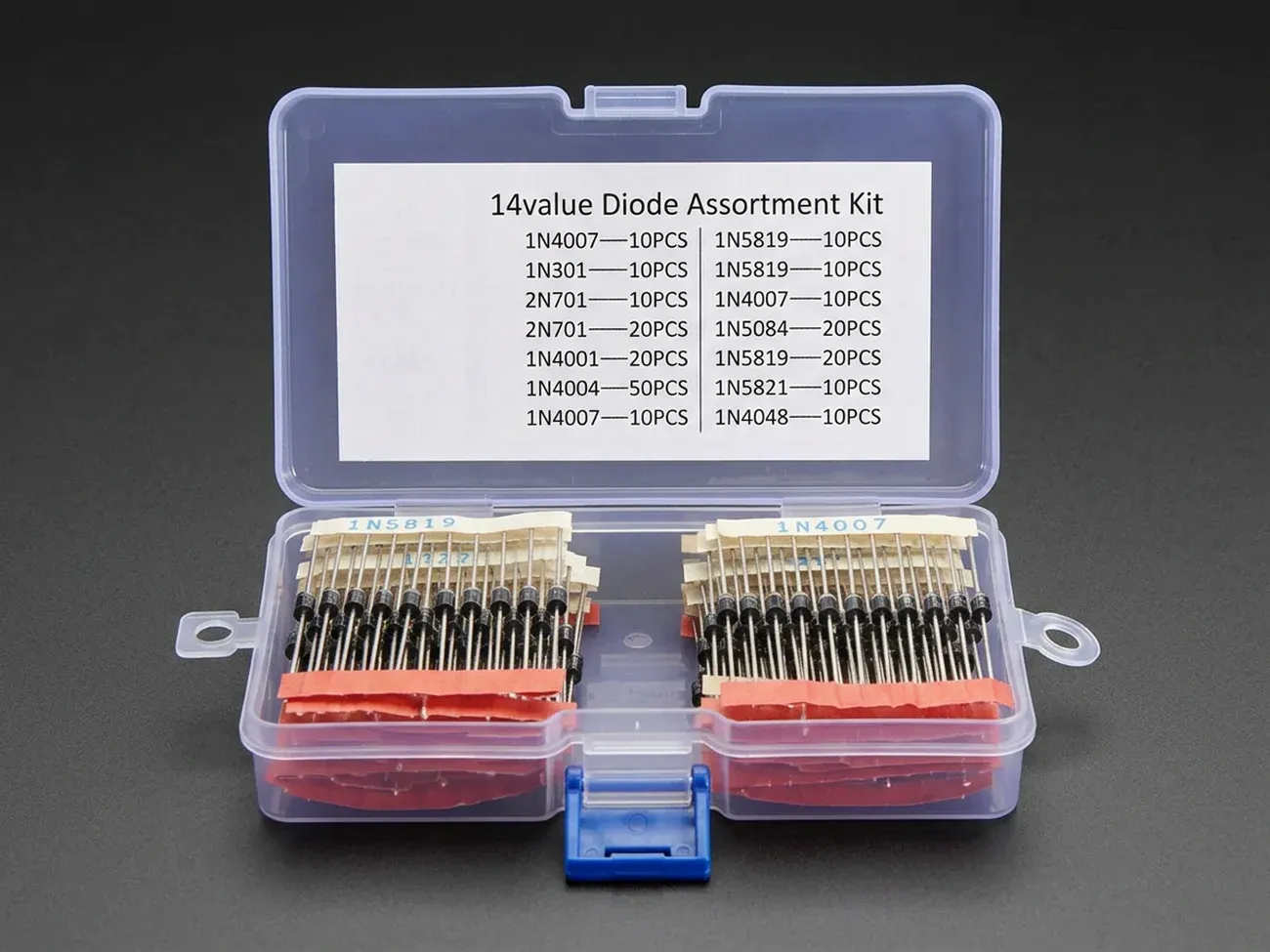

Stock your electronics bench with this 200-piece Diode Assortment Kit featuring 14 commonly used switching, rectifier, fast recovery, and Schottky diodes. It includes popular values like 1N4148, 1N4007, UF4007, FR207, and 1N58xx series, neatly organized in a labeled storage box for quick and efficient prototyping or repairs.
| Qty | Price | Save |
|---|---|---|
| 1 - 3 | ₹470.82 | - |
| 4 - 9 | ₹442.57 | 6% |
| 10 - 24 | ₹433.15 | 8% |
| 25 - 49 | ₹423.74 | 10% |
| 50+ | ₹400.20 | 15% |
When you’re building power supplies, protecting inputs, clamping signals, or fixing boards, having the right diode on hand saves time. This 14-value, 200-piece diode assortment brings together a practical mix of signal switching diodes, standard rectifiers, fast/ultrafast recovery rectifiers, and Schottky diodes—so you can move from idea to working circuit without waiting for a single part.
| Specification | Details |
|---|---|
| Product Type | Through-hole Diode Assortment Kit |
| Total Pieces | 200 pieces |
| Total Values | 14 different diode types |
| Diode Categories | Switching, General Rectifier, Fast Recovery, Ultra-Fast, Schottky, Power Rectifier |
| Package Type | Axial, Through-Hole (DO-41 / DO-15 mix depending on type) |
| Storage | Labeled compartment organizer box |
| Applications | Power supplies, reverse polarity protection, flyback protection, signal routing, DIY electronics |
| Diode Part Number | Type (Common Use) | Quantity |
|---|---|---|
| 1N4148 | Fast switching / signal diode | 30 |
| 1N4001 | General-purpose rectifier | 20 |
| 1N4004 | 20 | |
| 1N4007 | 20 | |
| 1N5817 | Schottky rectifier (low Vf) | 10 |
| 1N5819 | 20 | |
| 1N5822 | Schottky rectifier (higher current) | 10 |
| 1N5404 | Power rectifier diode | 10 |
| 1N5406 | 10 | |
| 1N5408 | 10 | |
| FR107 | Fast recovery rectifier | 10 |
| FR207 | 10 | |
| RL207 | Rectifier diode | 10 |
| UF4007 | Ultra-fast rectifier | 10 |
