Overview

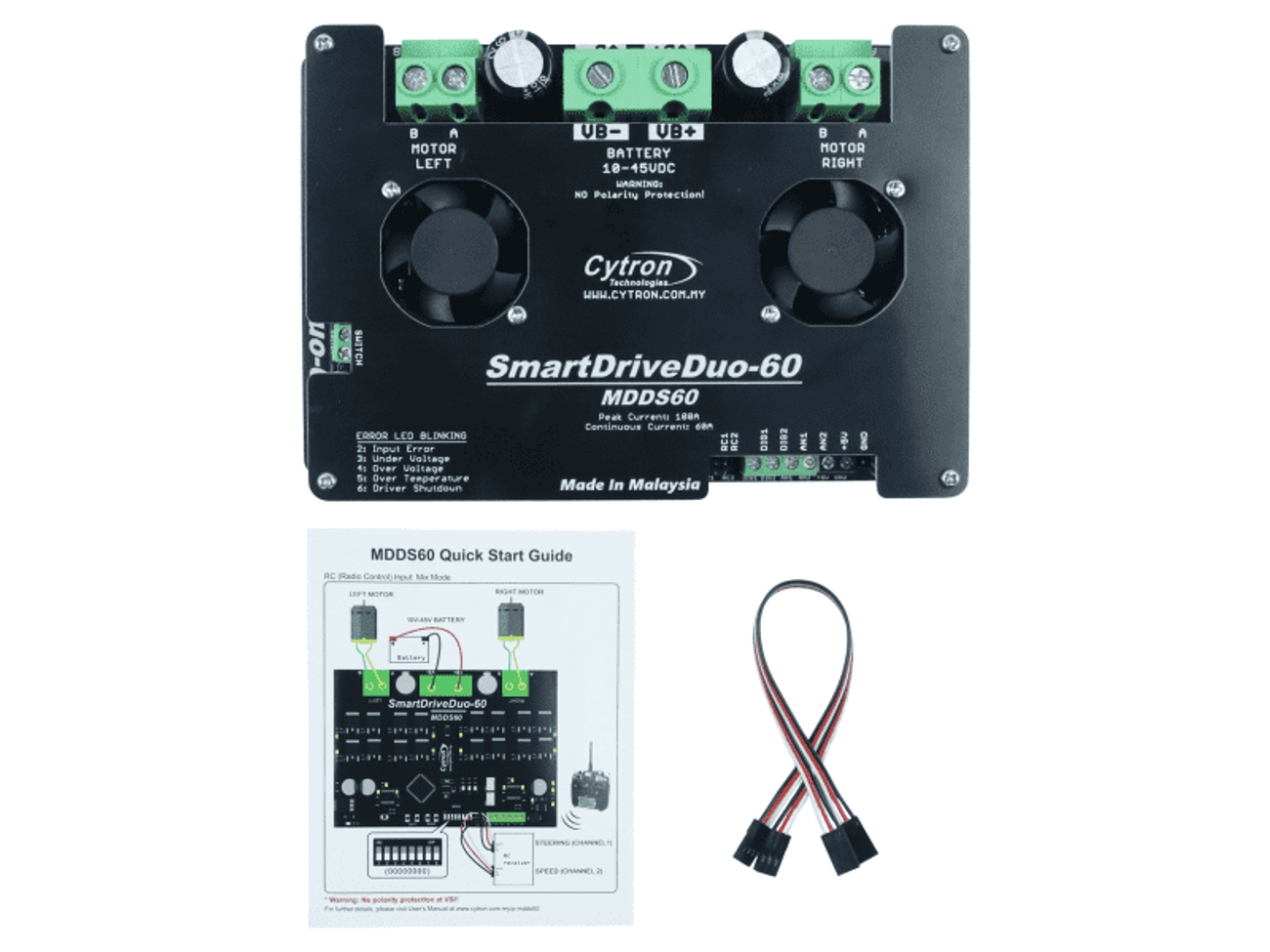

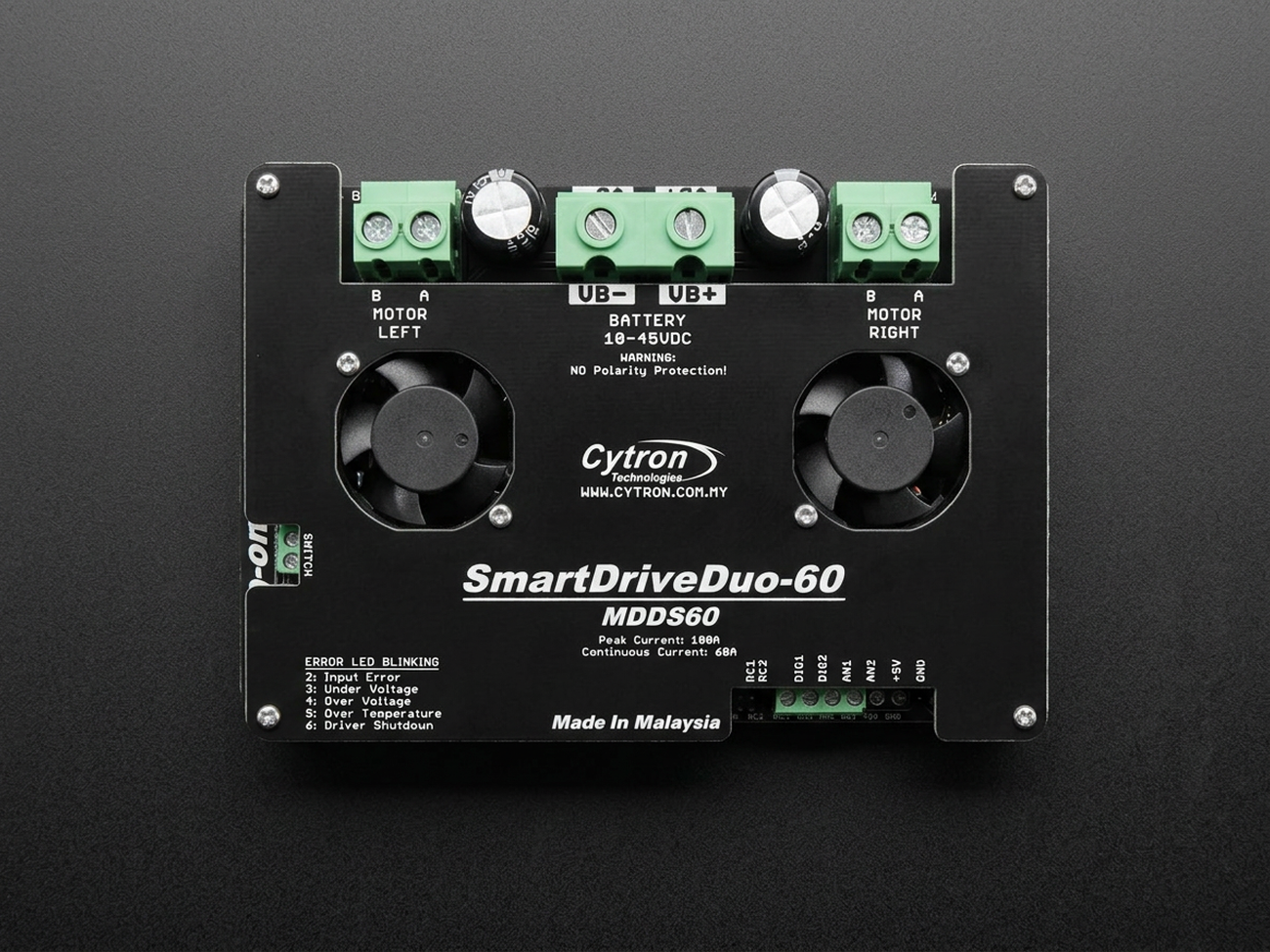

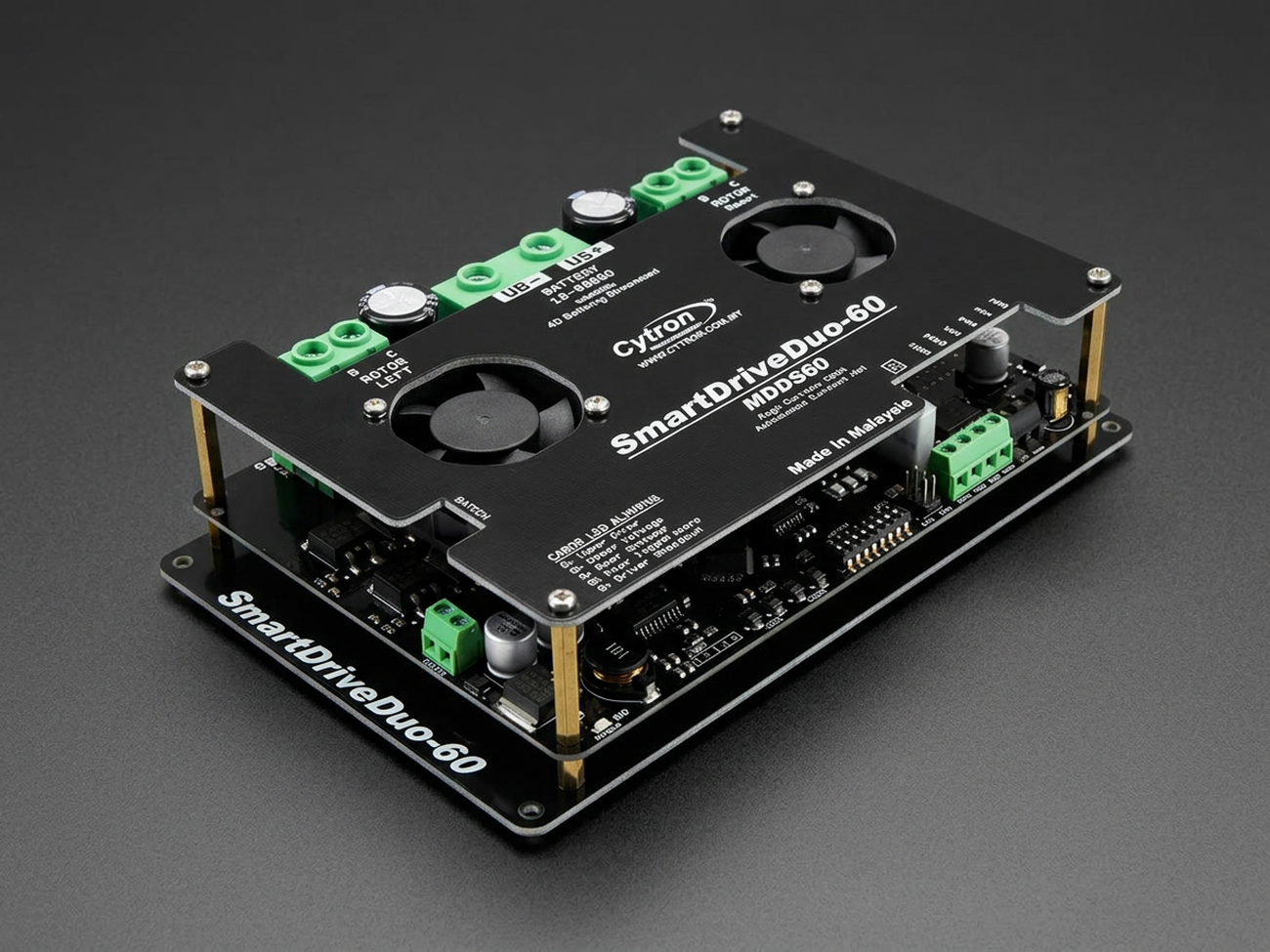

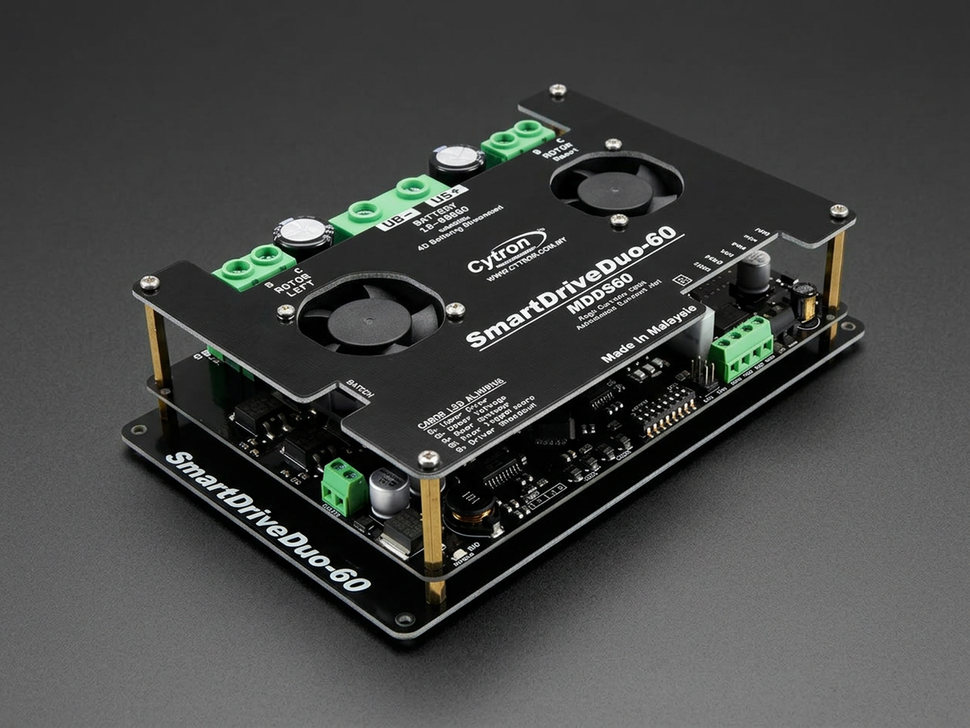

The Cytron MDDS60 SmartDriveDuo-60 is a high-current dual-channel driver for brushed DC motors, designed for 7V to 45V DC systems. It can drive two DC brush motors independently or in mixed mode, making it a strong fit for differential-drive robots, combat robots, mobile platforms, and other heavy-duty motion projects.
Each channel supports up to 60A continuous current at room temperature, with 100A peak for 1 second. The board supports multiple control methods including RC servo signal, analog input, PWM, simplified UART, and packetized UART, so it can be integrated with RC receivers, joysticks, Arduino, PIC, and other microcontroller-based systems.
MDDS60 includes practical smart features for real-world use such as regenerative braking, thermal-based current limiting, battery low voltage monitoring, 16kHz quiet switching, on-board cooling fans, manual test buttons, status LEDs, and a built-in switching regulator. Please note that this driver is for brushed DC motors only and does not include reverse polarity protection on the motor power input.
Specification
Technical details for Cytron MDDS60 SmartDrive DC Motor Driver - 60A, 7V to 45V, Dual Channel.
| Specification | Details |
|---|---|
| Product Type | Dual-channel brushed DC motor driver |
| Motor Type Supported | Brushed DC motor only |
| Motor Supply Voltage | 7V to 45V DC |
| Continuous Current | 60A per channel at room temperature |
| Peak Current | 100A per channel for 1 second |
| Control Modes | RC, Analog, PWM, Simplified UART, Packetized UART |
| PWM Modes | Signed magnitude and locked anti-phase |
| Switching Frequency | 16kHz |
| 5V Output Current | Up to 500mA |
| Board Size | Approximately 190mm x 121mm x 45mm |
Pinout
| Pin | Type | Description |
|---|---|---|
| BAT+ | Power Input | Positive motor power supply input from battery or DC source. |
| BAT- | Power Input | Ground input for motor power supply. |
| MOTOR LEFT | Power Output | Output terminal for the left brushed DC motor channel. |
| MOTOR RIGHT | Power Output | Output terminal for the right brushed DC motor channel. |
| RC Header | Input | 2x3 header for RC receiver connection using servo extension cables. |
| Analog Input | Input | Accepts analog voltage input such as from a potentiometer or joystick interface. |
| PWM Input | Input | Receives PWM control signals from a microcontroller. |
| UART | Input/Control | Serial interface for simplified UART or packetized UART control. |
| 5V Output | Power Output | Regulated 5V output, rated up to 500mA. |

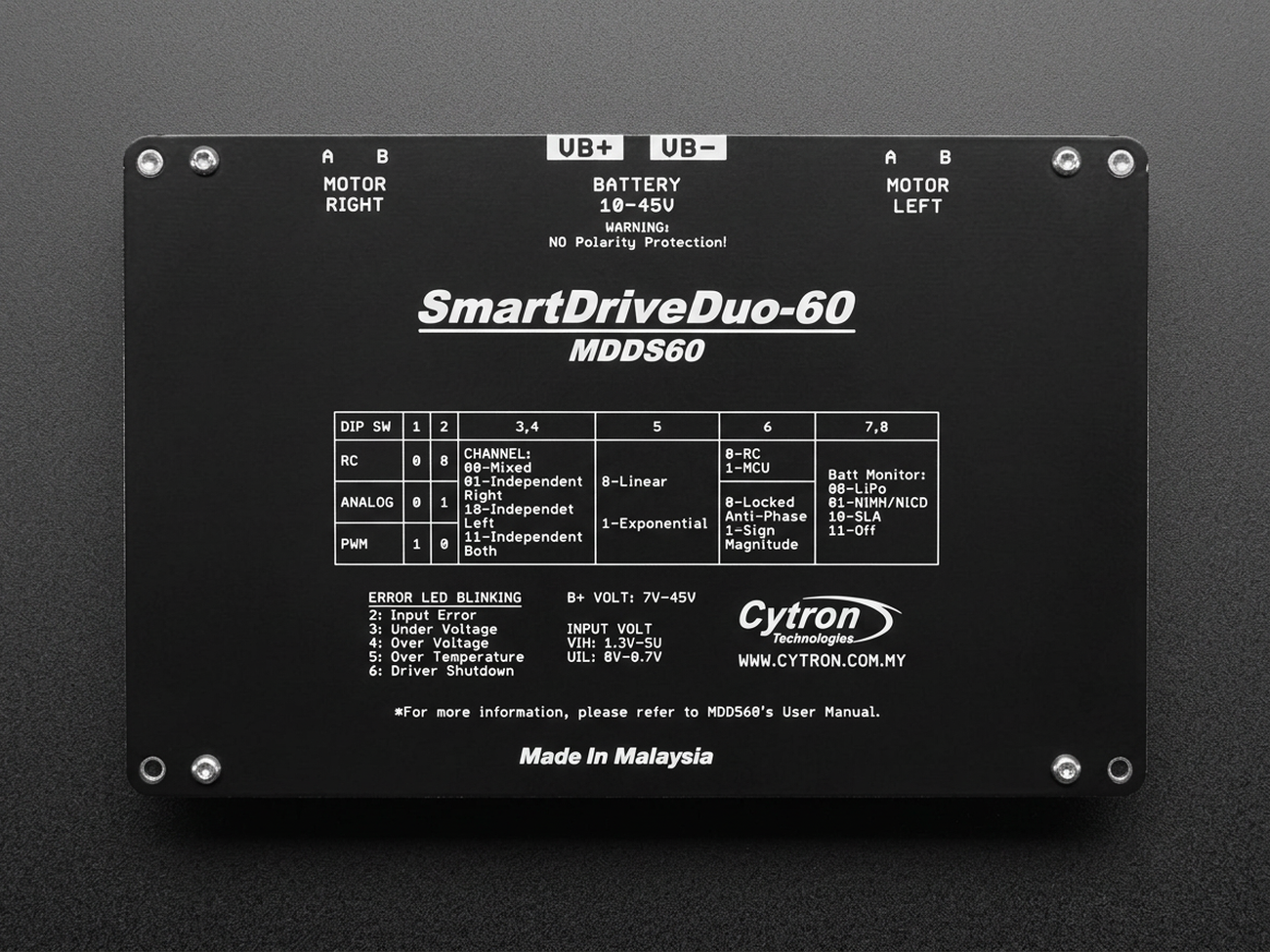

| DIP Switch | Configuration | Selects operating mode and interface configuration. |
