Overview
Build reliable wire-to-board connections with this 5.08mm Pitch PCB Screw Terminal Block Assortment Kit. Designed for through-hole mounting, these blue terminal blocks provide secure clamping for solid or stranded wires, making them ideal for power distribution, prototyping, control circuits, and industrial electronics.
With a standard 5.08mm (0.2 inch) pitch, these terminals are compatible with a wide range of PCBs and development boards. The assortment includes multiple pin configurations, allowing flexibility when designing multi-channel circuits or modular power connections.
Specification
Technical details for 5.08mm PCB Screw Terminal Block Connector Assortment Kit
| Specification | Details |
|---|---|
| Pitch | 5.08mm (0.2 inch) |
| Pin Variants | 2 Pin, 3 Pin, 4 Pin |
| Mounting Type | Through-Hole (THT) |

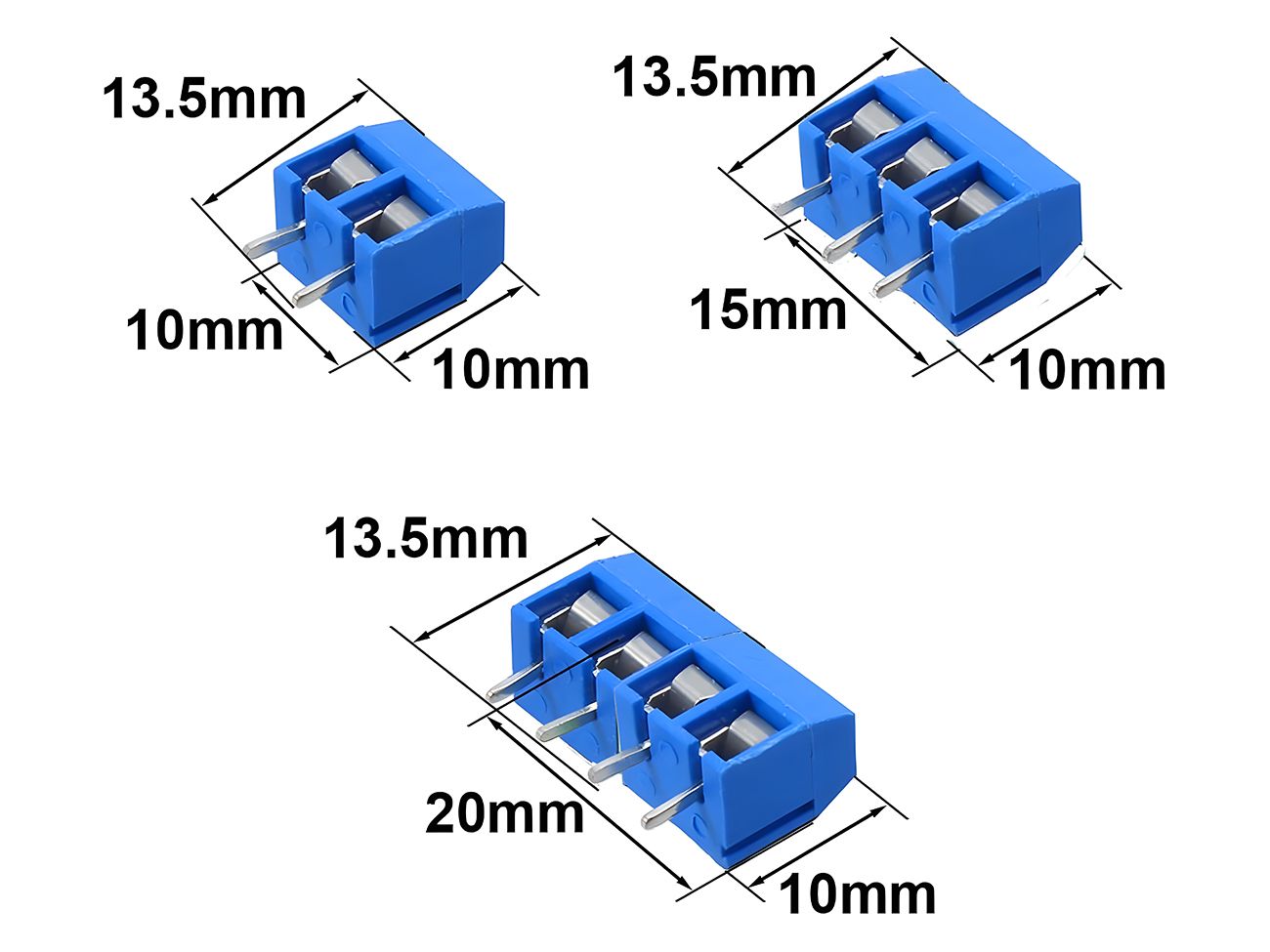

| Body Height | ~10mm |
| Body Width | ~10mm |
| Length | 2 Pin: ~10mm 3 Pin: ~15mm 4 Pin: ~20mm |

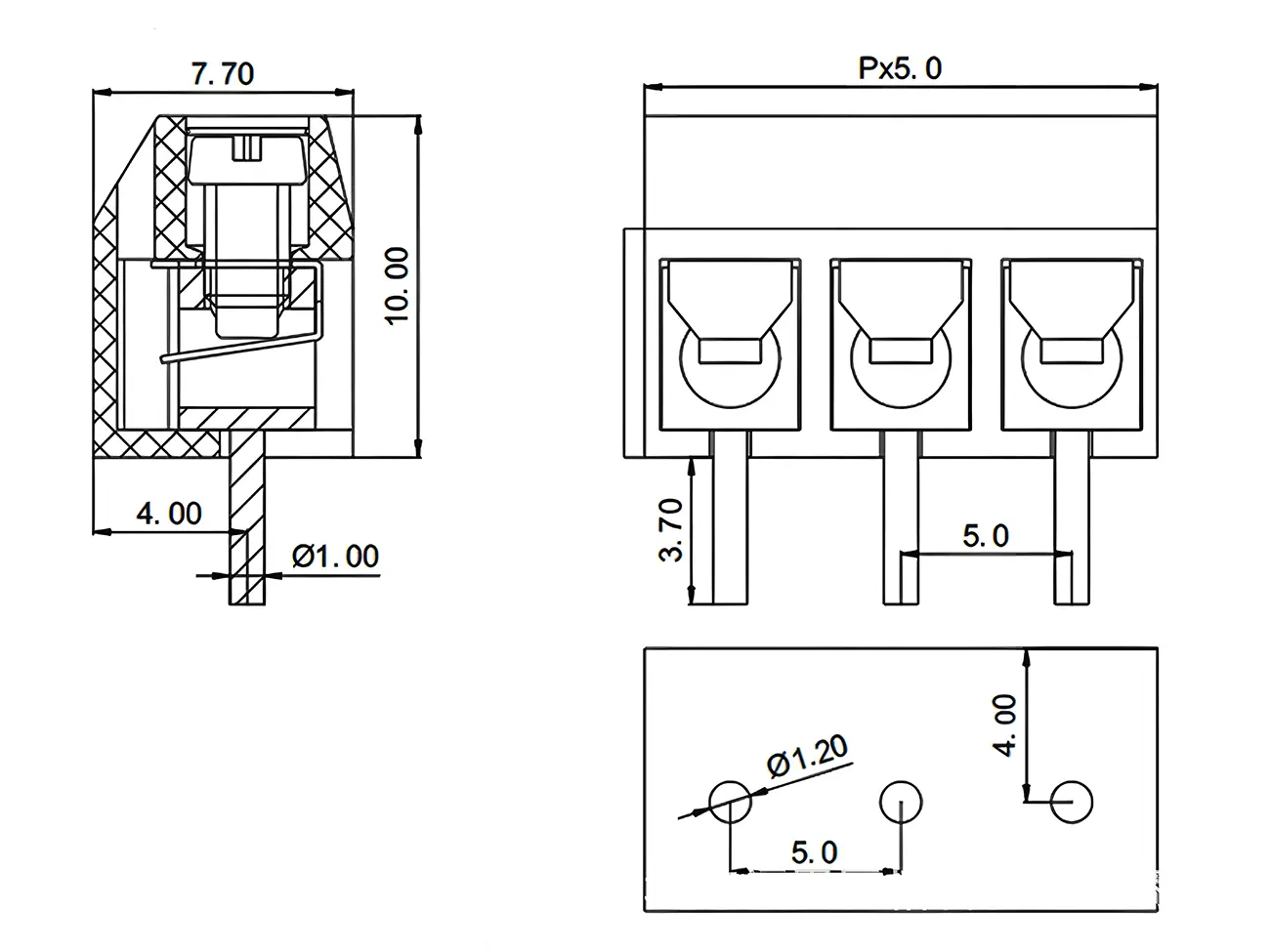

| PCB Hole Diameter (Recommended) | 1.2mm |
| Pin Diameter | ~1.0mm |
| Housing Material | Flame-retardant thermoplastic |
| Contact Material | Tinned Copper Alloy |
| Wire Connection Type | Screw Clamp with Metal Pressure Plate |
| Color | Blue or Green |

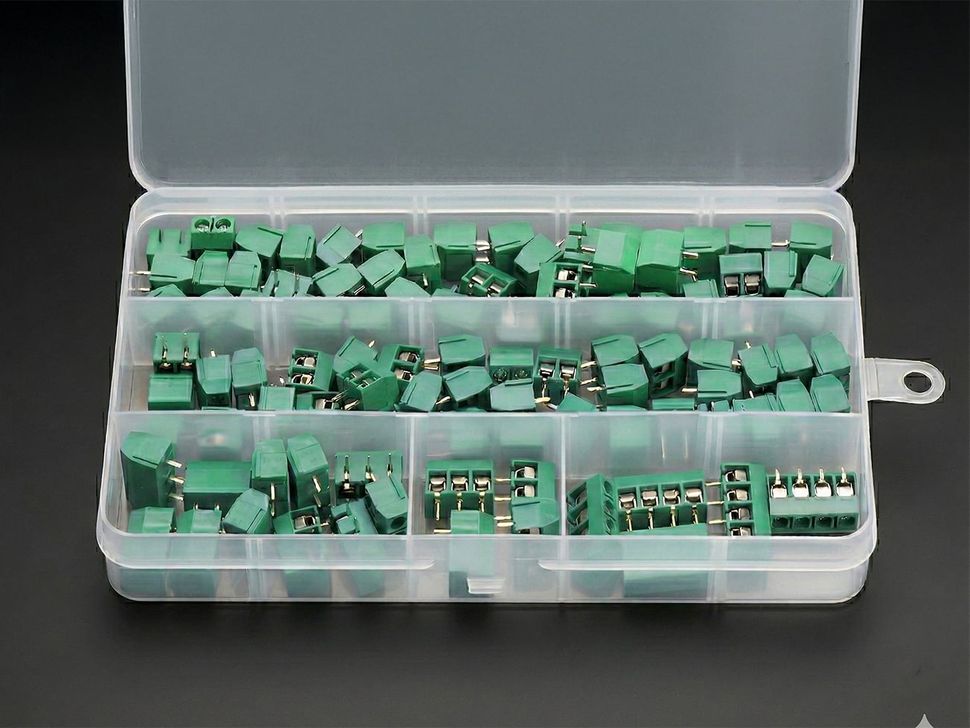

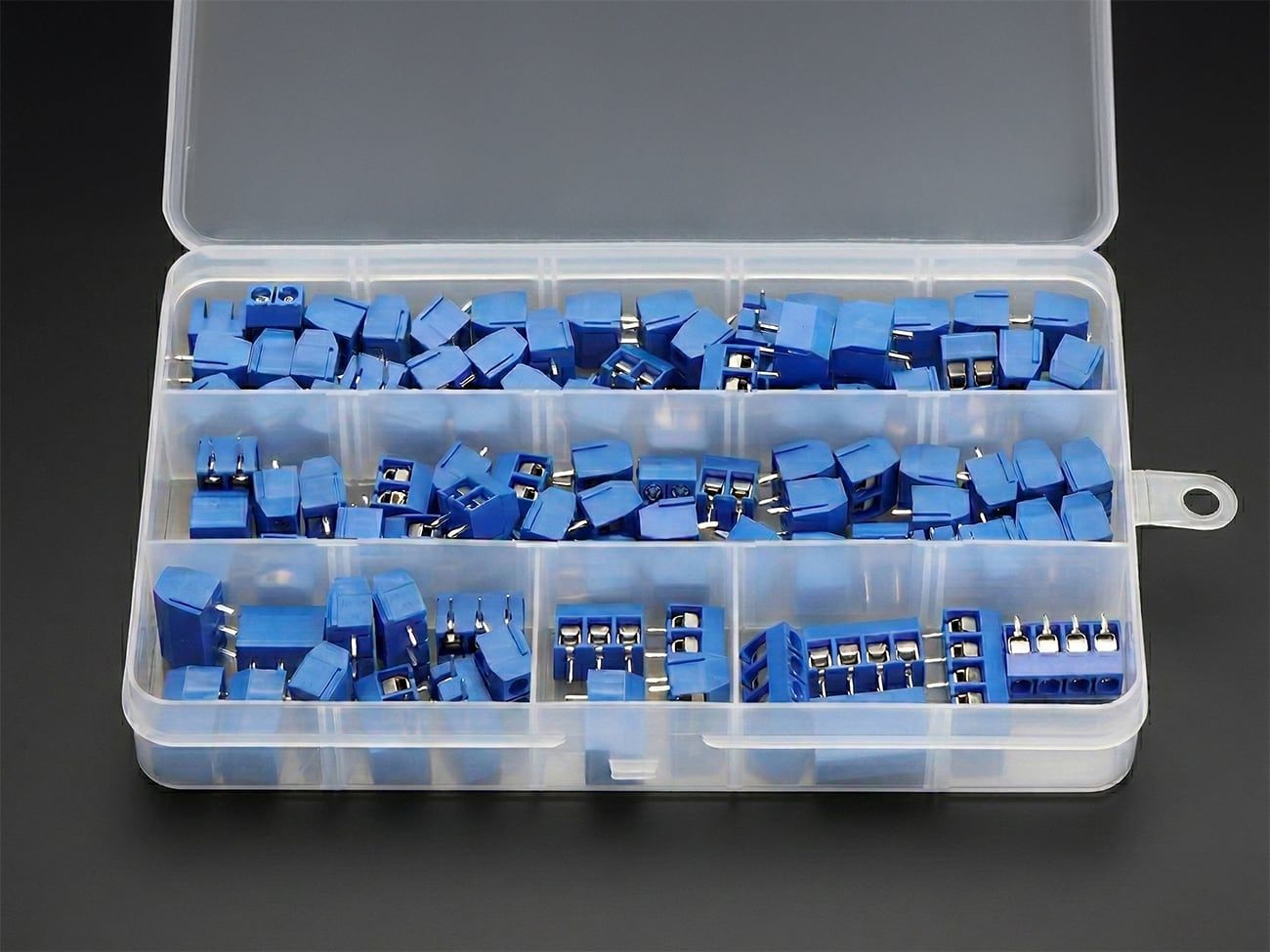

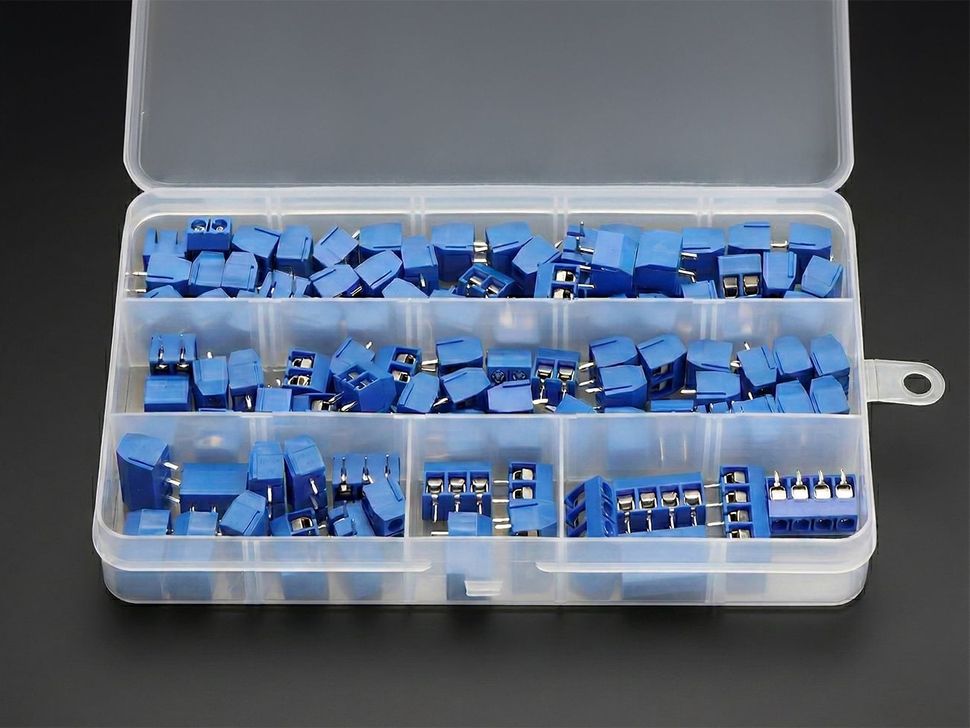

What's Included
| Pin Variant | Pitch | Color | Mounting |
|---|---|---|---|
| 2 Pin | 5.08mm | Blue / Green | Through-Hole (THT) |
| 3 Pin | |||
| 4 Pin |
