Overview

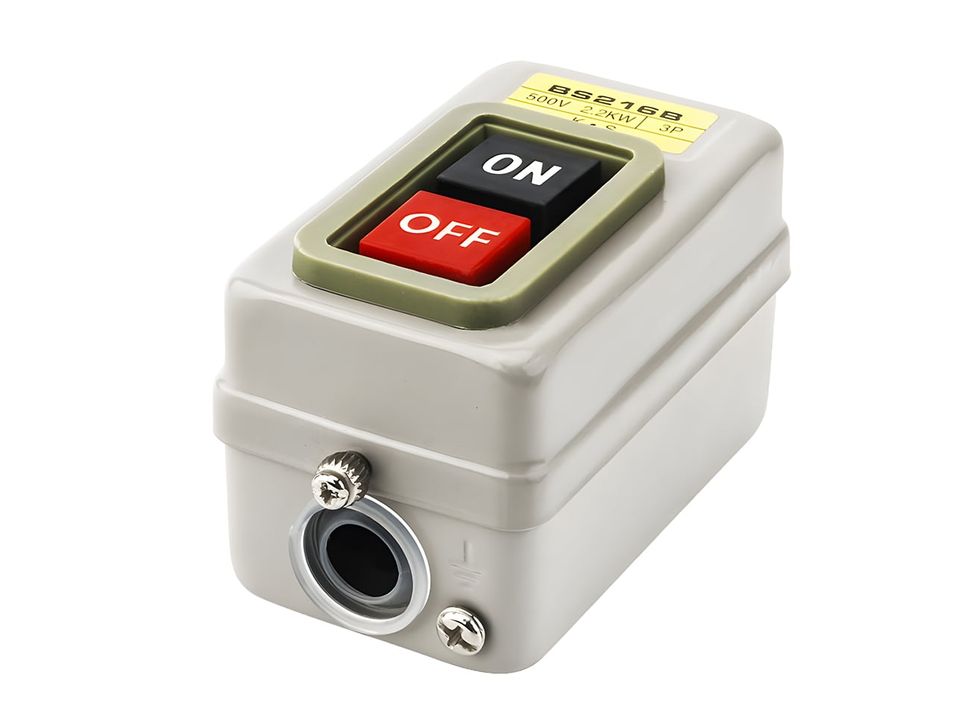

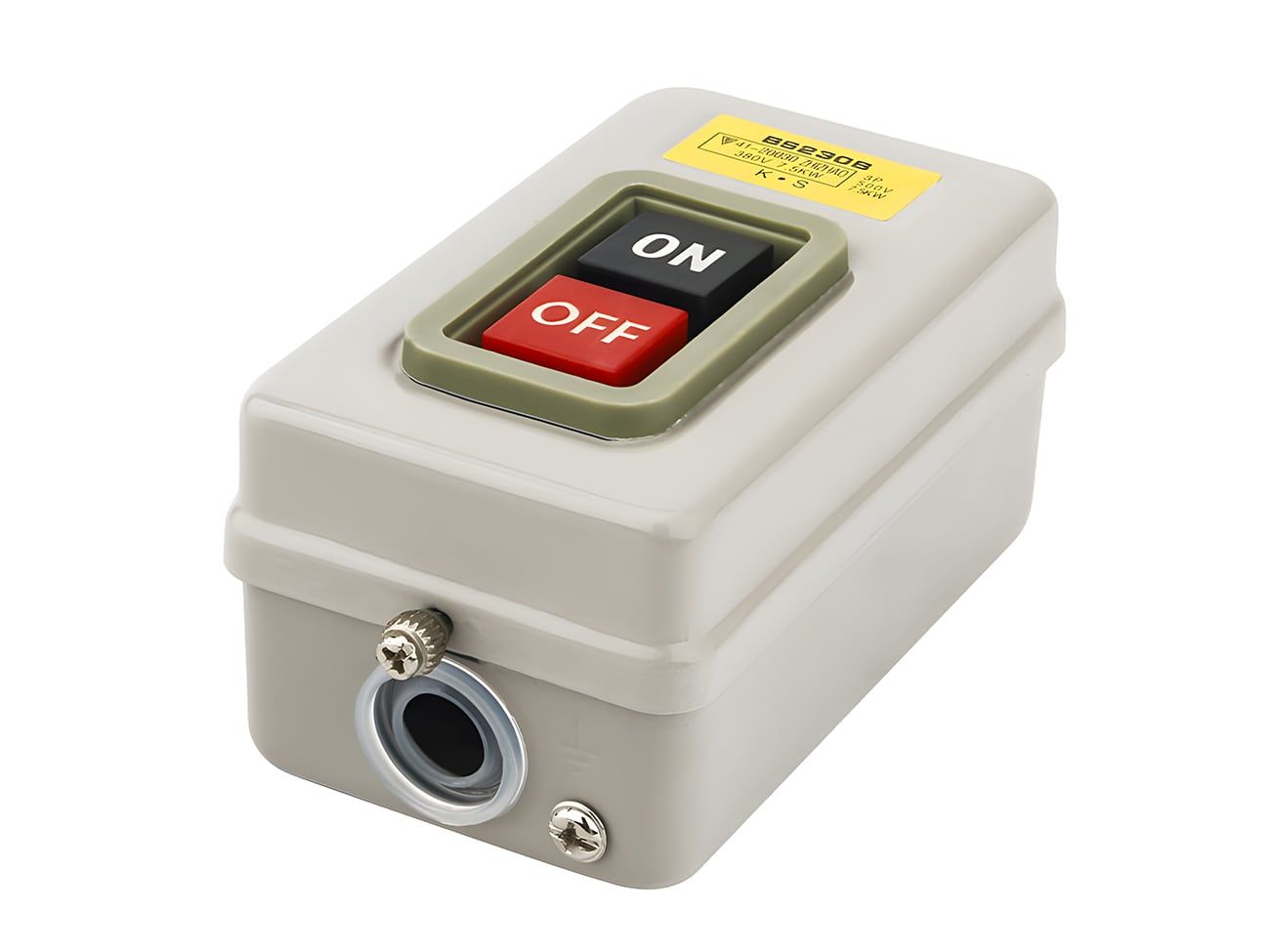

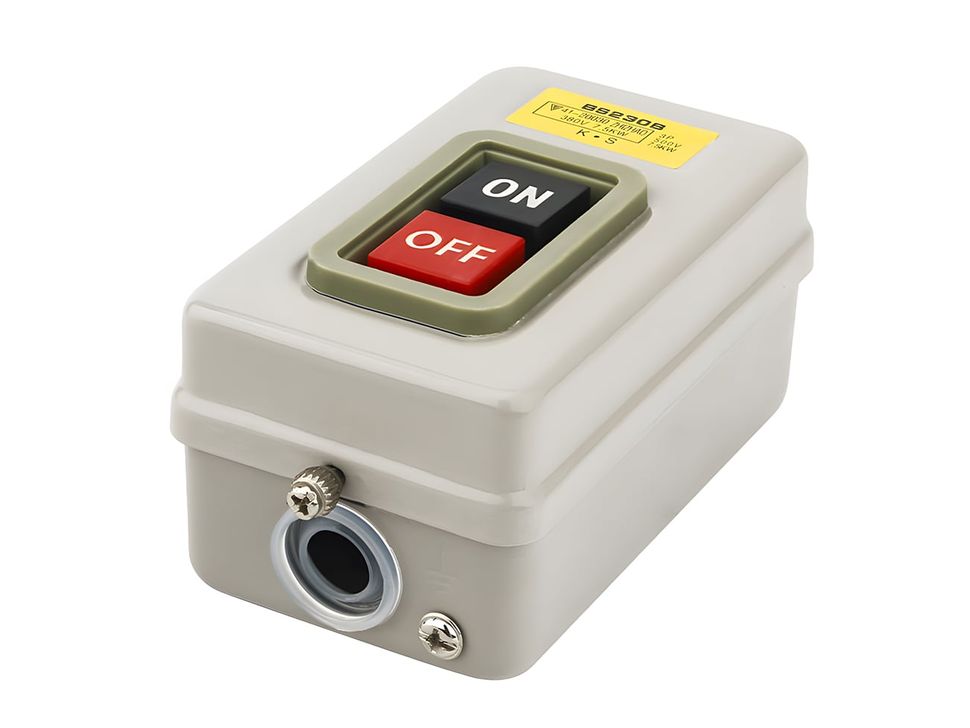

This industrial-grade ON/OFF Push Button Switch is designed for reliable control of 3-phase AC equipment such as motors, pumps, compressors, and machinery. Built with a sealed, dust-proof enclosure, it ensures safe operation even in demanding workshop and factory environments.

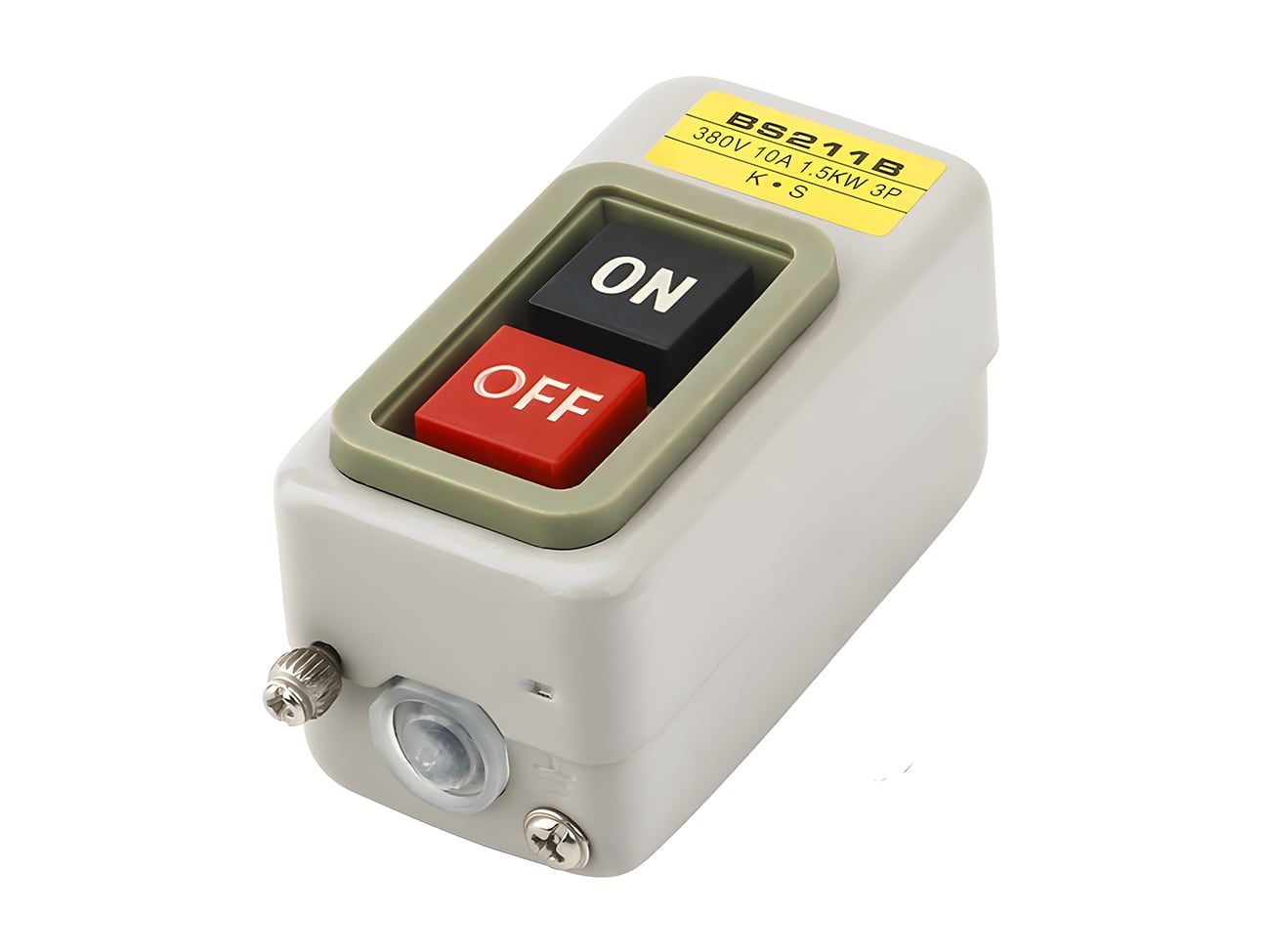

Each switch features a large ON (black) and OFF (red) mechanical latch button for quick, confident activation. The internal mechanism uses three normally-open (NO) contact sets, making it suitable for standard 3-phase wiring. The rugged stainless-steel coated housing, combined with screw-type cable entry, provides long service life and excellent protection against dust ingress.
The BS series is available in three power variants—1.5 kW, 2.2 kW, and 3.7 kW—to suit a wide range of equipment loads.
Specification
Technical details for 3 Phase AC Voltage ON/OFF Push Button Switch.
| Specification | BS211B (1.5 kW) |
BS216B (2.2 kW) |
BS230B (3.7 kW) |
|---|---|---|---|
| Rated Voltage | AC 380V | AC 500V | AC 500V |
| Rated Power | 1.5 kW | 2.2 kW | 3.7 kW |
| Contact Type | Three Normally Open (NO) Contacts | ||
| Body Material | Metal with Baked Finish | ||
| Structure | Sealed Dust-Protected Design | ||
| Installation Method | Screw Mount | ||

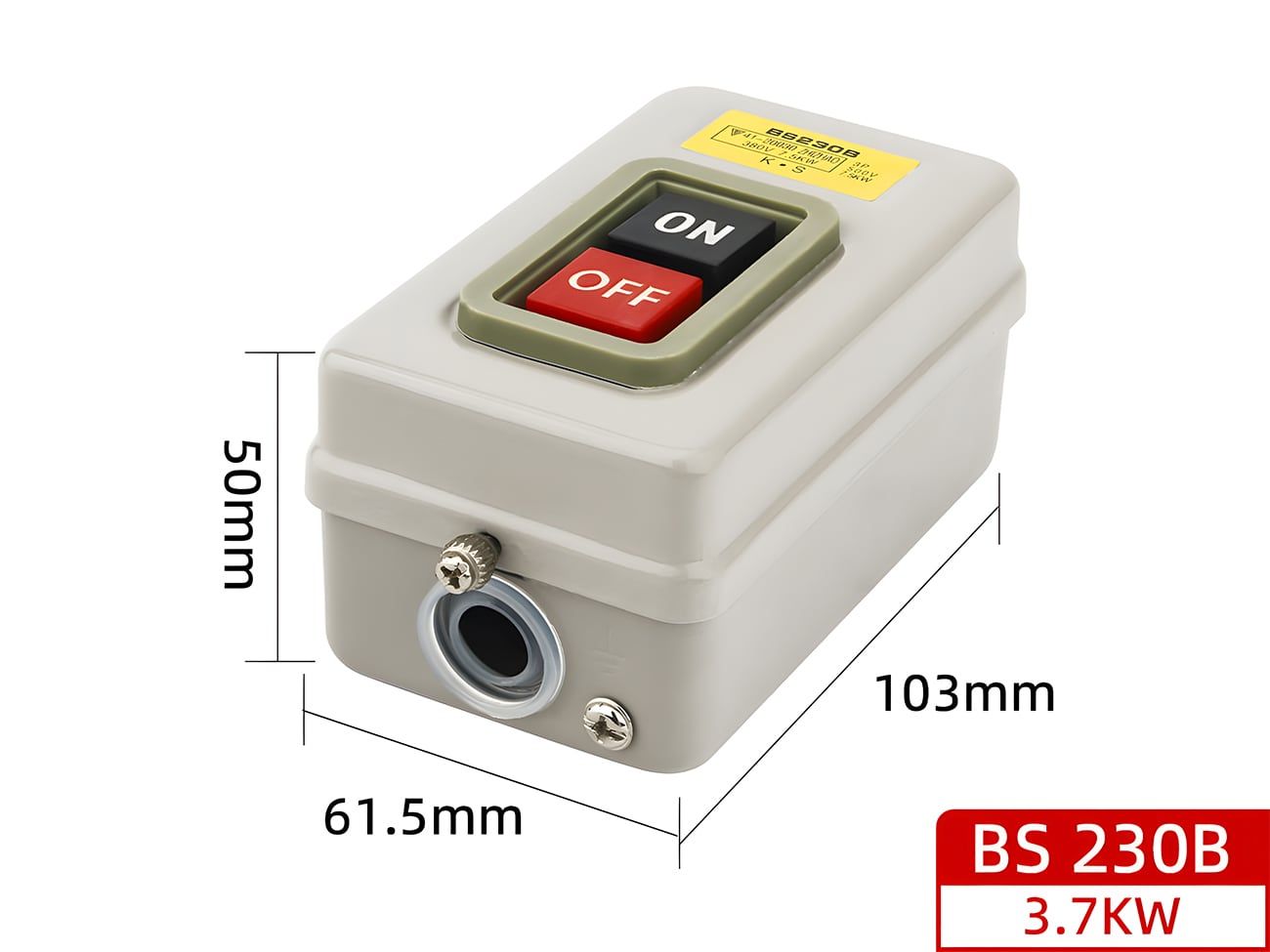

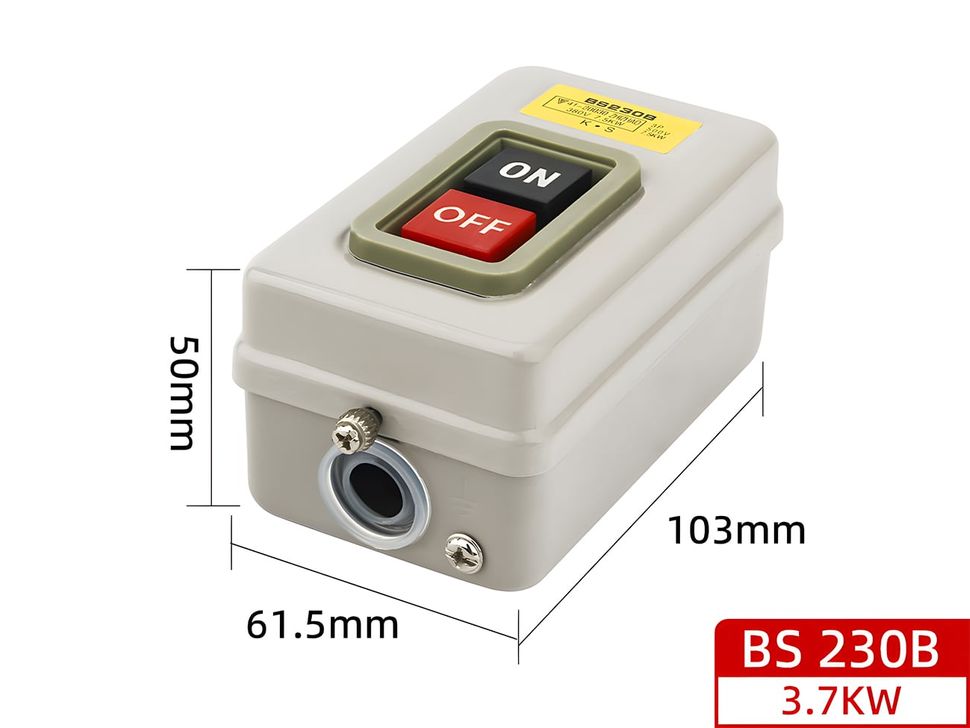

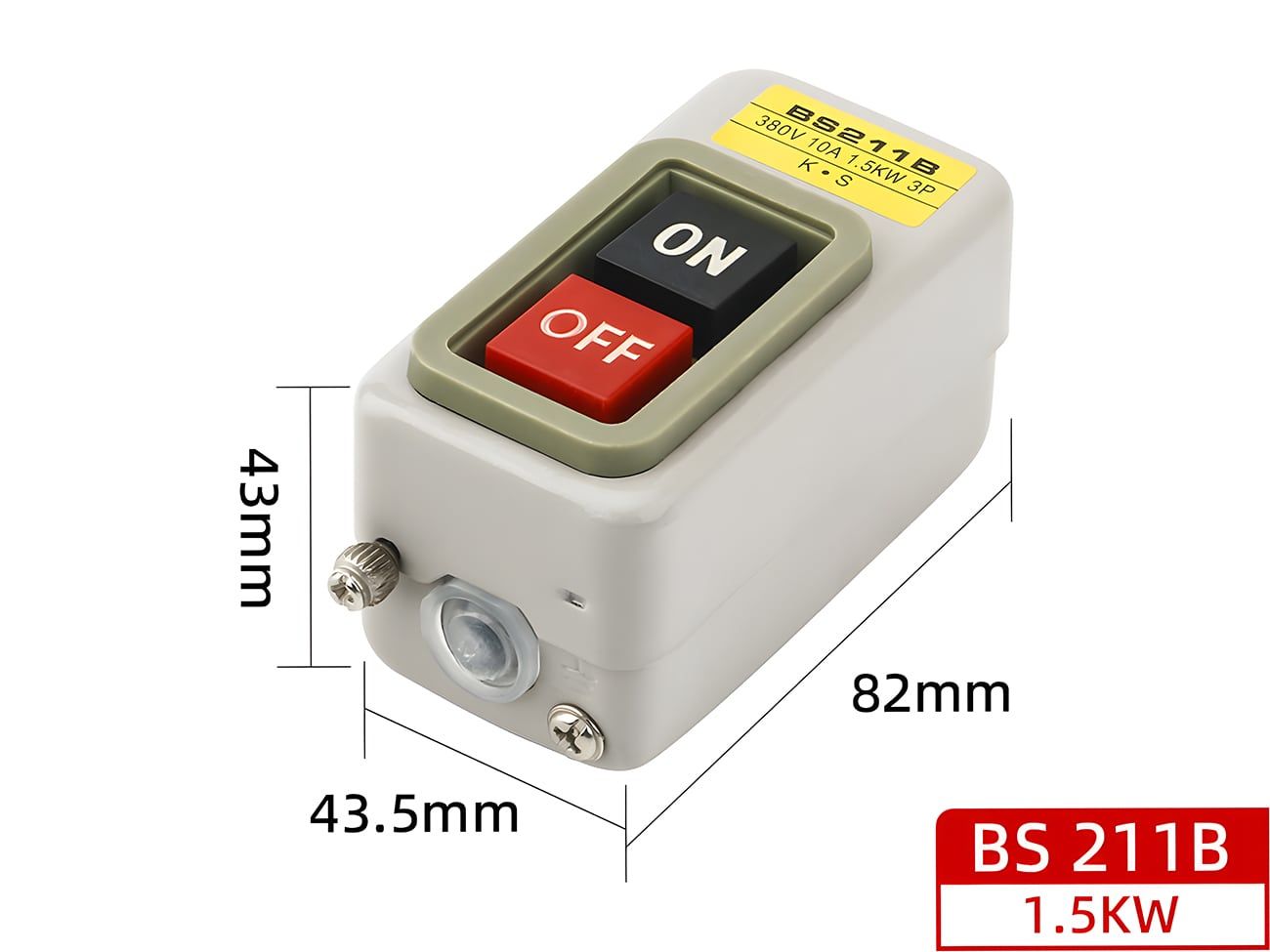

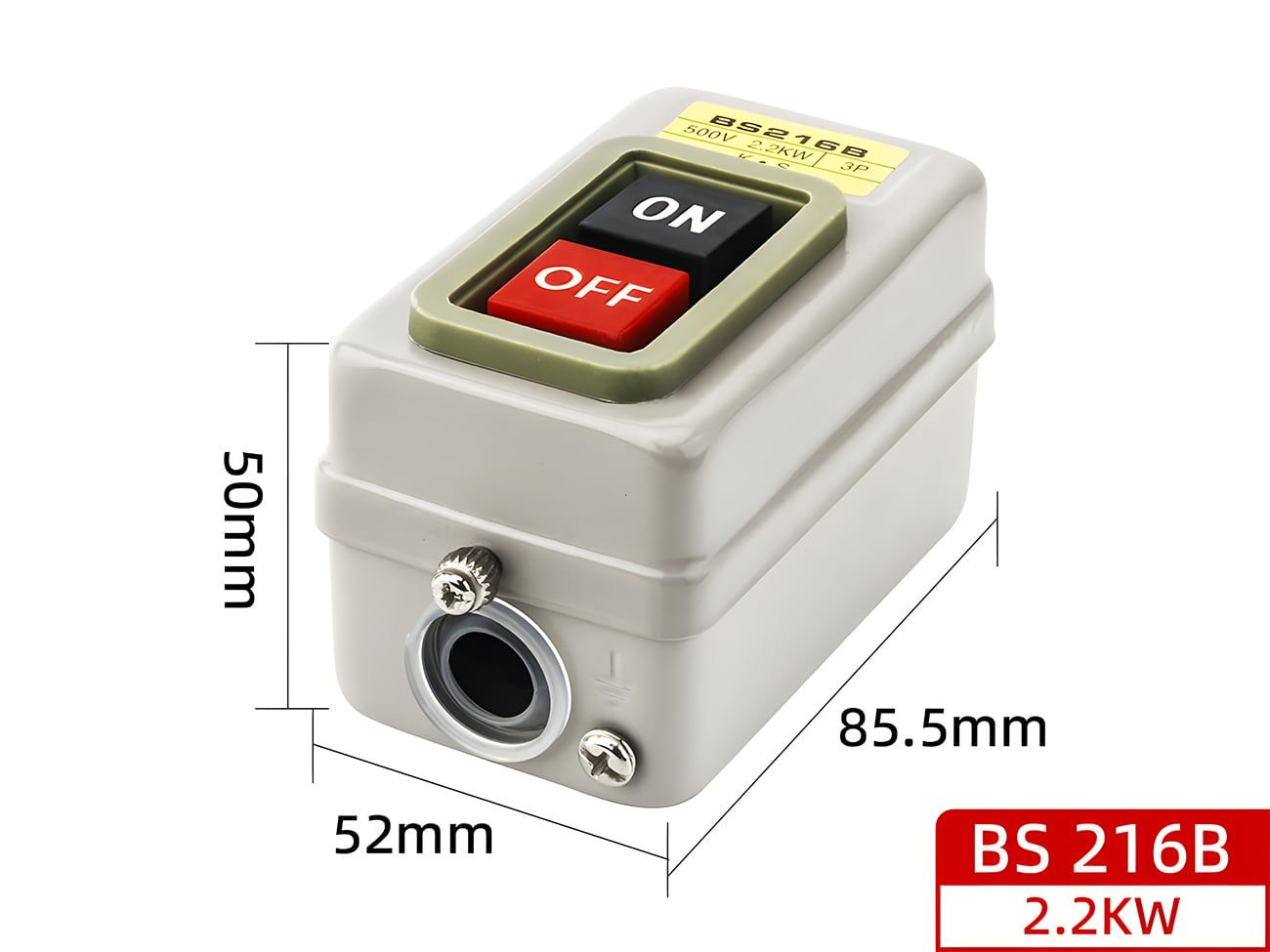

| Dimensions (L × W × H) | 82 × 43.5 × 43 mm | 85.5 × 52 × 50 mm | 103 × 61.5 × 50 mm |
| Model Number | BS211B | BS216B | BS230B |

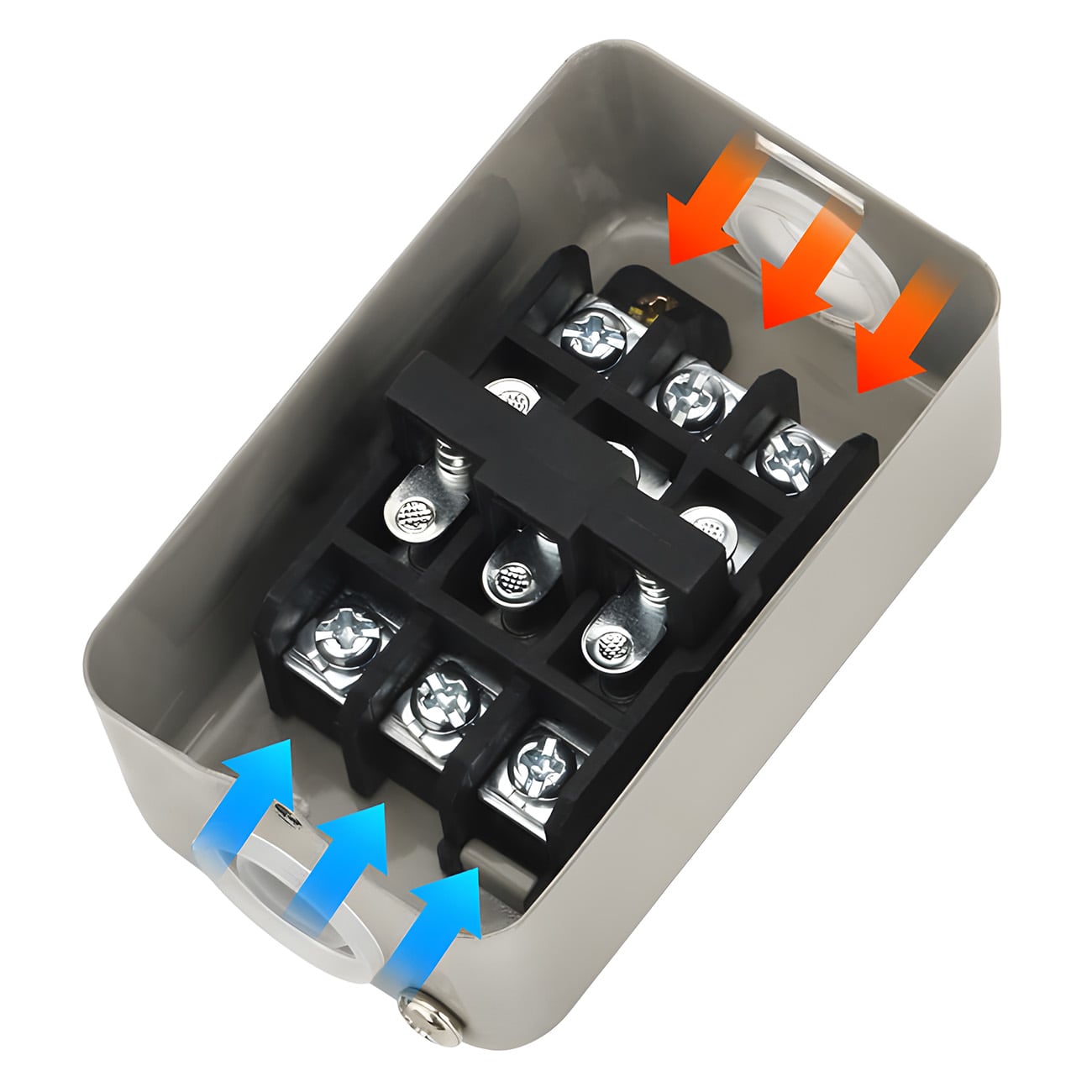

Terminals
