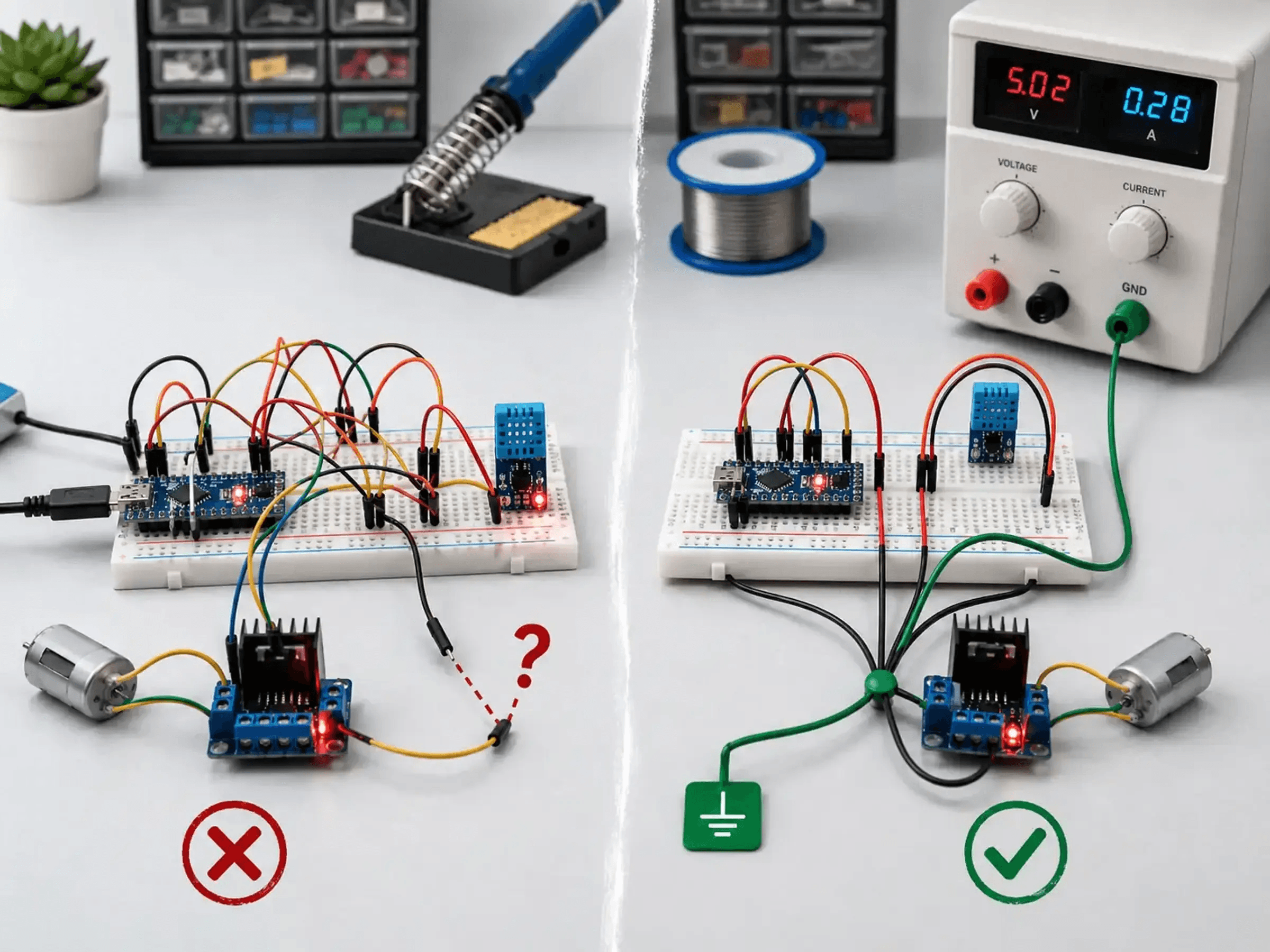

Grounding Mistakes Beginners Make

Beginner electronics problems often look mysterious. LEDs flicker, sensors give strange readings, motors randomly reset your board, and serial communication behaves like it has a tiny ghost inside. Very often, the ghost is just bad grounding.

Ground, or GND, is one of the first labels you see on any Arduino, Raspberry Pi, sensor module, breadboard power rail, or power supply. It looks simple enough: connect all the GND pins together and move on.

But in real-world projects, grounding mistakes are one of the most common reasons circuits behave unpredictably.

This guide explains what beginners usually get wrong about ground, why those mistakes cause problems, and how to avoid them when building electronics projects.

What Is Ground in a Circuit?

In most beginner circuits, ground is the common reference point for voltage.

When we say a pin is at 5V or 3.3V, we mean it is 5V or 3.3V relative to ground.

Ground is not always “earth ground.” In small electronics projects, GND usually means the 0V reference shared by all parts of the circuit.

For example:

Arduino 5V pin = 5V compared to Arduino GND
Raspberry Pi 3.3V pin = 3.3V compared to Raspberry Pi GND
Sensor OUT pin = signal voltage compared to sensor GND

If different parts of a project do not agree on what “0V” means, signals become unreliable.

Mistake 1: Not Connecting Grounds Together

This is probably the most common beginner grounding mistake.

Imagine you power an Arduino from USB and power a sensor from a separate battery pack. You connect the sensor signal wire to the Arduino input pin, but you forget to connect the sensor GND to Arduino GND.

The Arduino now receives a signal without a shared reference. It does not properly know what the sensor’s signal voltage means.

Example Problem

You connect:

Sensor VCC to external 5V supply
Sensor OUT to Arduino input pin
Sensor GND to external supply GND

But you do not connect external supply GND to Arduino GND.

Result: the Arduino may read random values, unstable values, or nothing at all.

Correct Connection

Connect:

Sensor VCC to 5V
Sensor GND to power supply GND
Arduino GND to power supply GND
Sensor OUT to Arduino input

Now both the sensor and Arduino share the same voltage reference.

Rule

If two devices exchange signals, their grounds usually need to be connected together.

Mistake 2: Thinking Ground Is a Dumping Point for Electricity

Many beginners think current “goes into ground” and disappears.

That is not how a circuit works.

Current must flow in a complete loop. Ground is part of the return path, not a magic drain.

For example, in a simple LED circuit:

5V → resistor → LED → GND

Current flows from the power source, through the resistor and LED, then back to the power source through ground.

If the ground connection is missing, the loop is broken and the circuit will not work.

Better Way to Think About It

Ground is the road back home.

If the return path is missing, current has nowhere useful to go.

Mistake 3: Using Breadboard Power Rails Incorrectly

Breadboards are wonderful little plastic cities, but their power rails can trick beginners.

Many breadboards have red and blue rails on both sides. Beginners often assume all red rails are connected together and all blue rails are connected together.

That is not always true.

Some breadboards have:

Split power rails in the middle
Left and right rails not connected to each other
Top and bottom rails separated
Rails that look continuous but are electrically divided

Example Problem

You connect GND to the blue rail on the left side of the breadboard. Then you connect a sensor’s GND to the blue rail on the right side, assuming they are connected.

But they are not.

Result: the sensor has no real ground reference, and the circuit behaves badly.

How to Avoid This

Use a multimeter in continuity mode to check which rails are connected.

Or simply add jumper wires to connect:

Left GND rail to right GND rail
Top GND rail to bottom GND rail
Split rail sections together, if needed

Breadboards are helpful, but they do not read your mind. Tiny plastic goblin rules apply.

Mistake 4: Mixing High-Power Loads and Sensitive Signals Carelessly

Motors, relays, solenoids, pumps, LED strips, and servos can draw large or sudden currents.

Sensors, microcontrollers, and communication lines are sensitive.

When both share the same messy ground path, high current loads can cause voltage drops and noise on the ground line. This can make the microcontroller reset, sensors glitch, or communication fail.

Example Problem

You power a servo and an Arduino from the same supply. The servo GND and Arduino GND are connected through thin jumper wires on a breadboard.

When the servo moves, the Arduino resets.

Why? The servo pulls a burst of current. The ground voltage shifts slightly because the wiring cannot handle the current cleanly. The Arduino sees an unstable reference and panics.

Better Practice

Use thicker wires for high-current loads.

Connect grounds in a way that avoids motor current flowing through the same tiny ground path used by sensors and microcontroller signals.

A common layout is:

Power supply GND as the central ground point

Then connect separately to:

Microcontroller GND
Motor driver GND
Sensor GND
External module GND

This is often called a star ground approach.

Mistake 5: Powering Motors Directly from Microcontroller Ground Pins

Microcontroller boards have GND pins, but that does not mean they are designed to carry large motor currents.

A small sensor module using a few milliamps is usually fine.

A motor, pump, servo, or LED strip can draw much more current.

Bad Idea

Power supply positive → motor → Arduino GND pin

This forces motor current through the Arduino board’s ground path. That can cause resets, heating, noise, or damage.

Better Idea

For motor or high-current loads:

Use an external power supply suitable for the load
Use a motor driver, relay module, or MOSFET module
Connect load ground directly to the power supply ground
Connect microcontroller GND to the same ground reference

The microcontroller should control the load, not become the load’s return highway.

Mistake 6: Forgetting Ground When Using Communication Modules

Many modules need a shared ground for communication.

This includes:

UART modules
I2C sensors
SPI displays
Bluetooth modules
GPS modules
RF modules
Logic level converters

Beginners often connect TX, RX, SDA, SCL, MISO, MOSI, or SCK wires but forget GND.

Without common ground, signal voltages are not properly understood.

UART Example

For Arduino to GPS module:

Arduino RX connects to GPS TX
Arduino TX connects to GPS RX, if needed
Arduino GND connects to GPS GND

That ground wire is not optional. It is the translator’s dictionary.

Mistake 7: Assuming Earth Ground and Circuit Ground Are Always the Same

In battery-powered electronics, circuit ground is usually just the battery negative terminal.

It may not be connected to earth at all.

For example:

A 9V battery project has a GND reference
A power bank powered Arduino has a GND reference
A Li-ion battery powered robot has a GND reference

None of these necessarily connect to actual earth ground.

Earth ground is more relevant in mains wiring, safety systems, large equipment, and some test setups.

For beginner DC electronics, when a board says GND, it usually means circuit 0V, not a literal wire going into the soil like a dramatic lightning ritual.

Mistake 8: Creating Ground Loops Without Understanding Them

A ground loop happens when there are multiple ground paths between parts of a system.

In small breadboard circuits, this is not always a big issue. But in audio circuits, measurement systems, long cable runs, and mixed power systems, ground loops can introduce noise.

Example

You connect two devices together using a signal cable with ground. Both devices are also connected to earth through separate power supplies. Now there may be more than one path for ground current.

This can create hum, noise, or strange measurement errors.

Beginner Advice

For simple Arduino and sensor projects, focus first on having a solid common ground.

For audio, precision analog, or long-distance wiring, grounding layout becomes more important.

Mistake 9: Using Thin Jumper Wires for Everything

Dupont jumper wires are convenient, but they are not ideal for high current.

They are fine for:

Sensor signals
Small modules
Logic connections
Low-current LEDs

They are not ideal for:

Motors
Heated beds
Large LED strips
Pumps
Solenoids
High-current power distribution

Thin wires have resistance. When high current flows through them, voltage drops happen.

That means the ground at one end of the wire may not be exactly the same as the ground at the other end.

For sensitive circuits, that difference can cause trouble.

Better Practice

Use thicker wires or proper screw terminals for higher-current loads.

Keep high-current wiring separate from low-current signal wiring where possible.

Mistake 10: Ignoring Decoupling Capacitors

Grounding and power stability are closely related.

Many beginner circuits fail because the power and ground lines are noisy. A small capacitor placed near a module can help smooth sudden current demands.

These are called decoupling capacitors or bypass capacitors.

Common Practice

Place a 0.1µF ceramic capacitor between VCC and GND near ICs or sensor modules.

For motors, servos, and LED strips, you may also need larger capacitors such as:

10µF
100µF
470µF
1000µF or more, depending on the load

Capacitors do not fix bad wiring, but they help calm little voltage storms.

Practical Grounding Checklist for Beginners

Before blaming code, check your ground connections.

Ask yourself:

Do all devices that exchange signals share a common GND?
Are breadboard ground rails actually connected?
Are motors or high-current loads using proper power wiring?
Is motor current avoiding the microcontroller’s tiny ground path?
Are communication modules connected with signal wires and GND?
Are power and ground wires thick enough for the current?
Are sensors kept away from noisy motor wiring?
Are decoupling capacitors used near sensitive modules?
Is the power supply suitable for the total current?
Is the circuit forming a complete loop?

This checklist solves a surprising number of beginner problems.

Example: Arduino + Sensor + Motor Driver Grounding

Let’s say you are building a small robot with:

Arduino Uno
Ultrasonic sensor
Motor driver
Two DC motors
External battery pack

A good ground setup would be:

Battery positive to motor driver motor power input
Battery negative to motor driver GND
Arduino GND to motor driver GND
Sensor GND to Arduino GND
Sensor VCC to Arduino 5V
Sensor signal pins to Arduino pins

The important part:

Arduino GND, sensor GND, motor driver GND, and battery negative must share a common reference.

But motor current should mainly flow between the battery and motor driver, not through the Arduino board.

Quick Troubleshooting Symptoms of Bad Grounding

Bad grounding can cause:

Random sensor readings
Flickering LEDs
Microcontroller resets
Motors causing boards to restart
Serial data corruption
I2C devices not detected
Displays showing garbage
Touch sensors triggering randomly
Buzzing or humming in audio projects
Circuit working only when touched by hand

That last one is a classic breadboard séance. The human body accidentally changes the circuit enough to make it behave differently.

Good Grounding Habits

Here are simple habits that make projects more reliable:

Always draw the ground connections before wiring
Use black wires for GND when possible
Keep power wiring neat and short
Do not route motor current through sensor ground paths
Use thicker wires for higher current
Check breadboard rails with a multimeter
Add decoupling capacitors near modules
Use a common ground for communicating devices
Separate noisy loads from sensitive analog signals
Test step by step instead of wiring everything at once

Good grounding is not glamorous, but it is the quiet floor your whole circuit dances on.

Conclusion

Ground is more than just the pin you connect last.

It is the reference point that lets every part of your circuit agree on what voltages mean. When grounding is missing, weak, noisy, or badly routed, electronics projects can become unpredictable.

For beginner projects, remember the golden rule:

Devices that send signals to each other usually need a shared ground.

Once you understand this, many “random” electronics problems suddenly become much easier to diagnose.

Build carefully, check your ground rails, and give your current a clean path home.

But in real-world projects, grounding mistakes are one of the most common reasons circuits behave unpredictably.

This guide explains what beginners usually get wrong about ground, why those mistakes cause problems, and how to avoid them when building electronics projects.

What Is Ground in a Circuit?

In most beginner circuits, ground is the common reference point for voltage.

When we say a pin is at 5V or 3.3V, we mean it is 5V or 3.3V relative to ground.

Ground is not always “earth ground.” In small electronics projects, GND usually means the 0V reference shared by all parts of the circuit.

For example:

Arduino 5V pin = 5V compared to Arduino GND
Raspberry Pi 3.3V pin = 3.3V compared to Raspberry Pi GND
Sensor OUT pin = signal voltage compared to sensor GND

If different parts of a project do not agree on what “0V” means, signals become unreliable.

Mistake 1: Not Connecting Grounds Together

This is probably the most common beginner grounding mistake.

The Arduino now receives a signal without a shared reference. It does not properly know what the sensor’s signal voltage means.

Example Problem

You connect:

Sensor VCC to external 5V supply
Sensor OUT to Arduino input pin
Sensor GND to external supply GND

But you do not connect external supply GND to Arduino GND.

Result: the Arduino may read random values, unstable values, or nothing at all.

Correct Connection

Connect:

Sensor VCC to 5V
Sensor GND to power supply GND
Arduino GND to power supply GND
Sensor OUT to Arduino input

Now both the sensor and Arduino share the same voltage reference.

Rule

If two devices exchange signals, their grounds usually need to be connected together.

Mistake 2: Thinking Ground Is a Dumping Point for Electricity

Many beginners think current “goes into ground” and disappears.

That is not how a circuit works.

Current must flow in a complete loop. Ground is part of the return path, not a magic drain.

For example, in a simple LED circuit:

5V → resistor → LED → GND

Current flows from the power source, through the resistor and LED, then back to the power source through ground.

If the ground connection is missing, the loop is broken and the circuit will not work.

Better Way to Think About It

Ground is the road back home.

If the return path is missing, current has nowhere useful to go.

Mistake 3: Using Breadboard Power Rails Incorrectly

Breadboards are wonderful little plastic cities, but their power rails can trick beginners.

Many breadboards have red and blue rails on both sides. Beginners often assume all red rails are connected together and all blue rails are connected together.

That is not always true.

Some breadboards have:

Split power rails in the middle
Left and right rails not connected to each other
Top and bottom rails separated
Rails that look continuous but are electrically divided

Example Problem

You connect GND to the blue rail on the left side of the breadboard. Then you connect a sensor’s GND to the blue rail on the right side, assuming they are connected.

But they are not.

Result: the sensor has no real ground reference, and the circuit behaves badly.

How to Avoid This

Use a multimeter in continuity mode to check which rails are connected.

Or simply add jumper wires to connect:

Left GND rail to right GND rail
Top GND rail to bottom GND rail
Split rail sections together, if needed

Breadboards are helpful, but they do not read your mind. Tiny plastic goblin rules apply.

Mistake 4: Mixing High-Power Loads and Sensitive Signals Carelessly

Motors, relays, solenoids, pumps, LED strips, and servos can draw large or sudden currents.

Sensors, microcontrollers, and communication lines are sensitive.

When both share the same messy ground path, high current loads can cause voltage drops and noise on the ground line. This can make the microcontroller reset, sensors glitch, or communication fail.

Example Problem

You power a servo and an Arduino from the same supply. The servo GND and Arduino GND are connected through thin jumper wires on a breadboard.

When the servo moves, the Arduino resets.

Why? The servo pulls a burst of current. The ground voltage shifts slightly because the wiring cannot handle the current cleanly. The Arduino sees an unstable reference and panics.

Better Practice

Use thicker wires for high-current loads.

Connect grounds in a way that avoids motor current flowing through the same tiny ground path used by sensors and microcontroller signals.

A common layout is:

Power supply GND as the central ground point

Then connect separately to:

Microcontroller GND
Motor driver GND
Sensor GND
External module GND

This is often called a star ground approach.

Mistake 5: Powering Motors Directly from Microcontroller Ground Pins

Microcontroller boards have GND pins, but that does not mean they are designed to carry large motor currents.

A small sensor module using a few milliamps is usually fine.

A motor, pump, servo, or LED strip can draw much more current.

Bad Idea

Power supply positive → motor → Arduino GND pin

This forces motor current through the Arduino board’s ground path. That can cause resets, heating, noise, or damage.

Better Idea

For motor or high-current loads:

Use an external power supply suitable for the load
Use a motor driver, relay module, or MOSFET module
Connect load ground directly to the power supply ground
Connect microcontroller GND to the same ground reference

The microcontroller should control the load, not become the load’s return highway.

Mistake 6: Forgetting Ground When Using Communication Modules

Many modules need a shared ground for communication.

This includes:

UART modules
I2C sensors
SPI displays
Bluetooth modules
GPS modules
RF modules
Logic level converters

Beginners often connect TX, RX, SDA, SCL, MISO, MOSI, or SCK wires but forget GND.

Without common ground, signal voltages are not properly understood.

UART Example

For Arduino to GPS module:

Arduino RX connects to GPS TX
Arduino TX connects to GPS RX, if needed
Arduino GND connects to GPS GND

That ground wire is not optional. It is the translator’s dictionary.

Mistake 7: Assuming Earth Ground and Circuit Ground Are Always the Same

In battery-powered electronics, circuit ground is usually just the battery negative terminal.

It may not be connected to earth at all.

For example:

A 9V battery project has a GND reference
A power bank powered Arduino has a GND reference
A Li-ion battery powered robot has a GND reference

None of these necessarily connect to actual earth ground.

Earth ground is more relevant in mains wiring, safety systems, large equipment, and some test setups.

For beginner DC electronics, when a board says GND, it usually means circuit 0V, not a literal wire going into the soil like a dramatic lightning ritual.

Mistake 8: Creating Ground Loops Without Understanding Them

A ground loop happens when there are multiple ground paths between parts of a system.

In small breadboard circuits, this is not always a big issue. But in audio circuits, measurement systems, long cable runs, and mixed power systems, ground loops can introduce noise.

Example

You connect two devices together using a signal cable with ground. Both devices are also connected to earth through separate power supplies. Now there may be more than one path for ground current.

This can create hum, noise, or strange measurement errors.

Beginner Advice

For simple Arduino and sensor projects, focus first on having a solid common ground.

For audio, precision analog, or long-distance wiring, grounding layout becomes more important.

Mistake 9: Using Thin Jumper Wires for Everything

Dupont jumper wires are convenient, but they are not ideal for high current.

They are fine for:

Sensor signals
Small modules
Logic connections
Low-current LEDs

They are not ideal for:

Motors
Heated beds
Large LED strips
Pumps
Solenoids
High-current power distribution

Thin wires have resistance. When high current flows through them, voltage drops happen.

That means the ground at one end of the wire may not be exactly the same as the ground at the other end.

For sensitive circuits, that difference can cause trouble.

Better Practice

Use thicker wires or proper screw terminals for higher-current loads.

Keep high-current wiring separate from low-current signal wiring where possible.

Mistake 10: Ignoring Decoupling Capacitors

Grounding and power stability are closely related.

Many beginner circuits fail because the power and ground lines are noisy. A small capacitor placed near a module can help smooth sudden current demands.

These are called decoupling capacitors or bypass capacitors.

Common Practice

Place a 0.1µF ceramic capacitor between VCC and GND near ICs or sensor modules.

For motors, servos, and LED strips, you may also need larger capacitors such as:

10µF
100µF
470µF
1000µF or more, depending on the load

Capacitors do not fix bad wiring, but they help calm little voltage storms.

Practical Grounding Checklist for Beginners

Before blaming code, check your ground connections.

Ask yourself:

Do all devices that exchange signals share a common GND?
Are breadboard ground rails actually connected?
Are motors or high-current loads using proper power wiring?
Is motor current avoiding the microcontroller’s tiny ground path?
Are communication modules connected with signal wires and GND?
Are power and ground wires thick enough for the current?
Are sensors kept away from noisy motor wiring?
Are decoupling capacitors used near sensitive modules?
Is the power supply suitable for the total current?
Is the circuit forming a complete loop?

This checklist solves a surprising number of beginner problems.

Example: Arduino + Sensor + Motor Driver Grounding

Let’s say you are building a small robot with:

Arduino Uno
Ultrasonic sensor
Motor driver
Two DC motors
External battery pack

A good ground setup would be:

Battery positive to motor driver motor power input
Battery negative to motor driver GND
Arduino GND to motor driver GND
Sensor GND to Arduino GND
Sensor VCC to Arduino 5V
Sensor signal pins to Arduino pins

The important part:

Arduino GND, sensor GND, motor driver GND, and battery negative must share a common reference.

But motor current should mainly flow between the battery and motor driver, not through the Arduino board.

Quick Troubleshooting Symptoms of Bad Grounding

Bad grounding can cause:

Random sensor readings
Flickering LEDs
Microcontroller resets
Motors causing boards to restart
Serial data corruption
I2C devices not detected
Displays showing garbage
Touch sensors triggering randomly
Buzzing or humming in audio projects
Circuit working only when touched by hand

That last one is a classic breadboard séance. The human body accidentally changes the circuit enough to make it behave differently.

Good Grounding Habits

Here are simple habits that make projects more reliable:

Always draw the ground connections before wiring
Use black wires for GND when possible
Keep power wiring neat and short
Do not route motor current through sensor ground paths
Use thicker wires for higher current
Check breadboard rails with a multimeter
Add decoupling capacitors near modules
Use a common ground for communicating devices
Separate noisy loads from sensitive analog signals
Test step by step instead of wiring everything at once

Good grounding is not glamorous, but it is the quiet floor your whole circuit dances on.

Conclusion

Ground is more than just the pin you connect last.

It is the reference point that lets every part of your circuit agree on what voltages mean. When grounding is missing, weak, noisy, or badly routed, electronics projects can become unpredictable.

For beginner projects, remember the golden rule:

Devices that send signals to each other usually need a shared ground.

Once you understand this, many “random” electronics problems suddenly become much easier to diagnose.

Build carefully, check your ground rails, and give your current a clean path home.
